Hanwei E6000 Operation Manual

Portable multi-gas detector
Hide thumbs

Advertisement

Quick Links

Download this manual

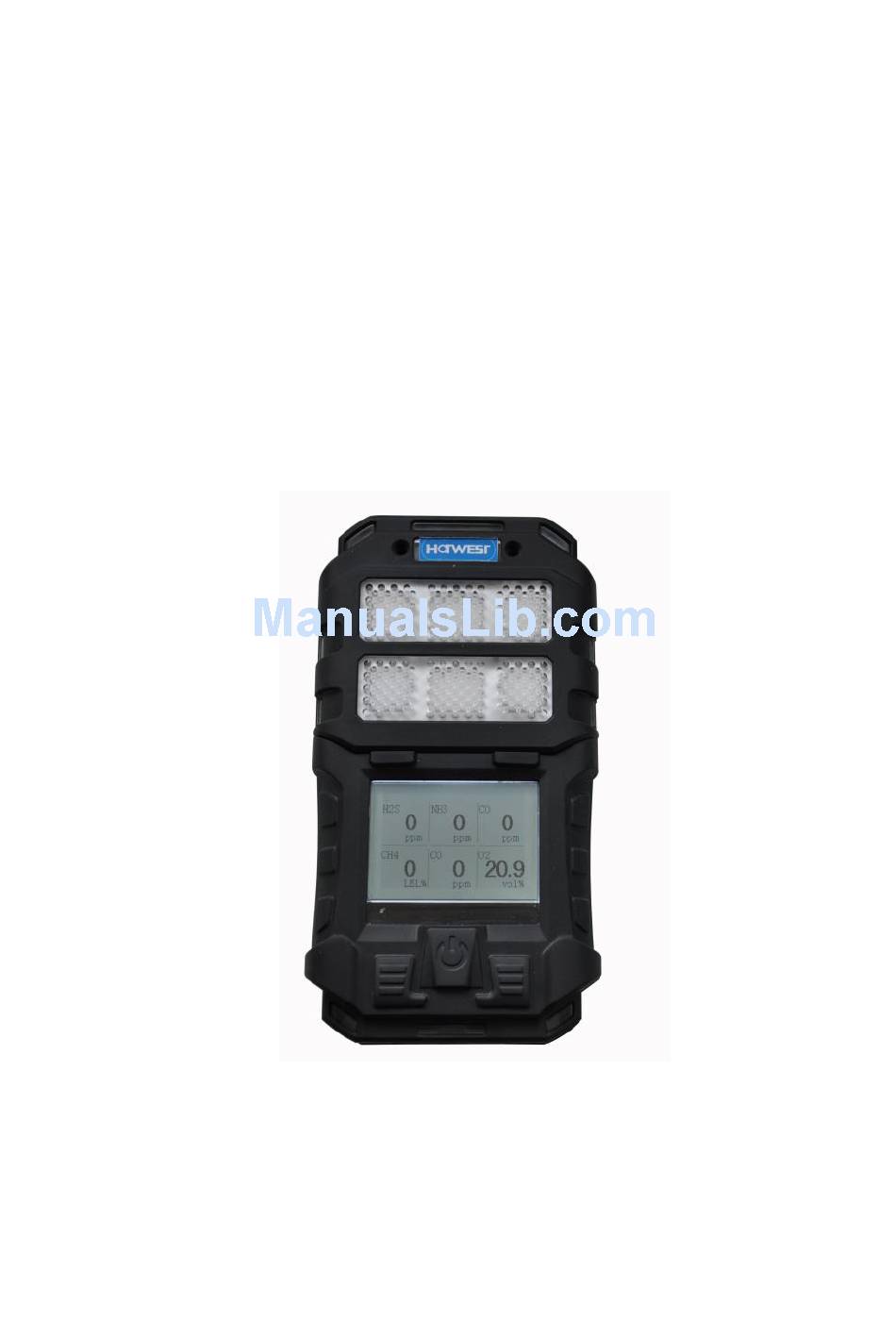

E6000 Portable Multi-Gas Detector
Operation Manual
(Ver: HW1403180296)
Read this manual carefully before using this device.

Advertisement

loading
Need help?

Need help?

Do you have a question about the E6000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hanwei E6000

  • Page 1 E6000 Portable Multi-Gas Detector Operation Manual (Ver: HW1403180296) Read this manual carefully before using this device.

  • Page 2: Safety Information

    Only accessories which are specified for E6000 or permitted by the seller are allowed to be used.  Only the charger which is specified for E6000 is allowed to be used. It's forbidden to charge the device in the dangerous environment.
  • Page 3  Any other operation beyond this manual, please contact the seller. 1. Brief introduction E6000 is a compact and lightweight multi gas detector that continuously measures combustibles, O , CO, H S and other toxic gases in ambient air. By using 6 sensors, it can detect at most 7 gases at the same time.
  • Page 4 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd.  Adjustable calibration point  Self protection design for combustible gas sensor  Battery low voltage alert function  With real-time clock  Interchangeable smart sensor module design  Self adjustment design ...
  • Page 5 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Explosion –proof grade: Exia IIC T4 Ga Ingress protection: IP66 Dimensions and weight: 168mm×91mm×45mm about 500g 4. Structure and functions Appearance Display information...
  • Page 6 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. 5. Operation instructions 5.1 Power on When machine is power off, hold for more than 3s and the device will be power on. The screen shows as below. After power on, the detector will proceed self-test and display is as below drawing.
  • Page 7 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Note:  If self-test fails, related information will be displayed. For details, please refer to Clause 10 Troubleshooting of this manual.  If self test succeeds, the device enters into warm-up period of 3-30s, which depends on the sensor type.
  • Page 8 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. 5.4 Menu explanation 5.4.1 Common menu In the normal detection interface, press both simultaneously and the device enters into common menu setting interface. Below is the button function: Menu Submenu Remarks When changing the date or time, the selected bit will blink.
  • Page 9 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Backlight time will be increased BACKLIGHT by 5s each time. TIME After entering into certain submenu, the user can change the item value by pressing and save the setting by pressing The user can also exit without saving changes by pressing 5.4.2 Advanced menu...
  • Page 10 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Remarks Menu Submenu To set user’s ID. SAFETY DEPLOY Zero calibration ZERO CAL. Data upload DATA UPLOAD One mode must be selected PERIPHE CONFIG. Activate the other function POWER MANAGE One mode must be selected.
  • Page 11 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. 5.5 Gas detection The device moniters and displays gas concentration in real time. Once the gas concentration reaches the preset alarm point, it will initiate alarms. Note:  Do not block sensors in detecting process.
  • Page 12 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Move the cursor to icon and press button. The device will make zero calibration automatically. In the end, a “√” icon displays for gas succeed and “×” for gas failed .
  • Page 13 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Press to move the cursor and the selected icon turns black. Then press to enter the submenu. 5.8.2 Zero calibration Select icon and press to enter auto zero calibration interface, shown as below. When finished, a “√” icon displays for gas succeed and “×”...
  • Page 14 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. When the AD value of the sensor is stable, press to make zero calibration manually. After that, a “√” icon displays for gas succeed and “×” for gas failed, shown as below.
  • Page 15 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Press to move the cursor and press to change the figure. After changing the figure, press button to save and enter the gas inputting mode, shown as below: When the device senses the input gas, it displays as below:...
  • Page 16 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Press again to confirm manual calibration. The below 2 drawings show the succeeded and failed manual calibration. Once finishing calibration one sensor, the device starts to calibrate the next sensor one by one. The operation is same as above.
  • Page 17 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Press to move the curso to the figure which needs to be adjusted and press when the figure flashes. Then it enters into the setting interface, shown as below. Press button to adjust the figure and press to move the cursor.
  • Page 18 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Select---means this channel is open. Cancel---means this channel is closed. Keep preessing until all the channgels have been set. The device will save the setting and exit to the normal detection mode.
  • Page 19 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. suitable power source. The device will be power on automatically and a battery symbol is displayed on the screen. The symbol shows the charging status. When the symbol is all balck and no changes, the charging is finished.
  • Page 20 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. How to use the clips and hand ring?  Belt clip, alligator clip and hand ring could be screwed to the back of the instrument when necessary.  If belt clip is used more frequently, the user can remove the alligator clip first and then install the instrument.
  • Page 21 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. 11. Using notice  Do not drop it from high place and protect it from servere shocking.  The instrument may not function properly in an atmosphere with gas of excessively high concentration level.
  • Page 22 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd. Annex1—Gas List Detection L-alarm H-alarm STEL range point point (ppm) (ppm) 0-100%LEL 20%LEL 50%LEL 0-100%LEL 20%LEL 50%LEL 0-100%LEL 20%LEL 50%LEL 0-1000ppm 35ppm 250ppm 0-30%vol 19.5%vol 23.5%vol 0-100ppm 10ppm 15ppm 0-1000ppm 35ppm...
  • Page 23 E6000 Portable Multi-Gas Detector Henan Hanwei Electronics Co., Ltd.
  • Page 24 HENAN HANWEI ELECTRONICS CO. LTD No.169, Xuesong Road, National Hi-Tech Zone, Zhengzhou 450001,Henan, China Phone: +86 371 67169070/67169080 E-mail: sales@hwsensor.com Website: www.hwsensor.com...
