Page 2 INT-PSU12 Installation Guide Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till September 2016.
Page 3: Safety Precautions
INT-PSU12 Installation Guide SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for...
Page 4 INT-PSU12 Installation Guide IMPORTANT SAFETY INSTRUCTIONS Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
Page 5 INT-PSU12 Installation Guide 13. Unplug the apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Page 6 INT-PSU12 Installation Guide 24. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. 25. WARNING: Excessive sound pressure from earphones and headphones can cause hearing loss.
Page 7 INT-PSU12 Installation Guide Caution – To prevent electric shock hazard, replace grille. (CSA 60065, clause 5.3A)
Page 8 INT-PSU12 Installation Guide Contents 1. Introduction ........................1 1.1 Brief Introduction ....................1 1.2 Features ......................1 1.3 Package List ....................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................2 3. System Connection ..................... 4 3.1 Usage Precautions .....................
Page 9: Introduction

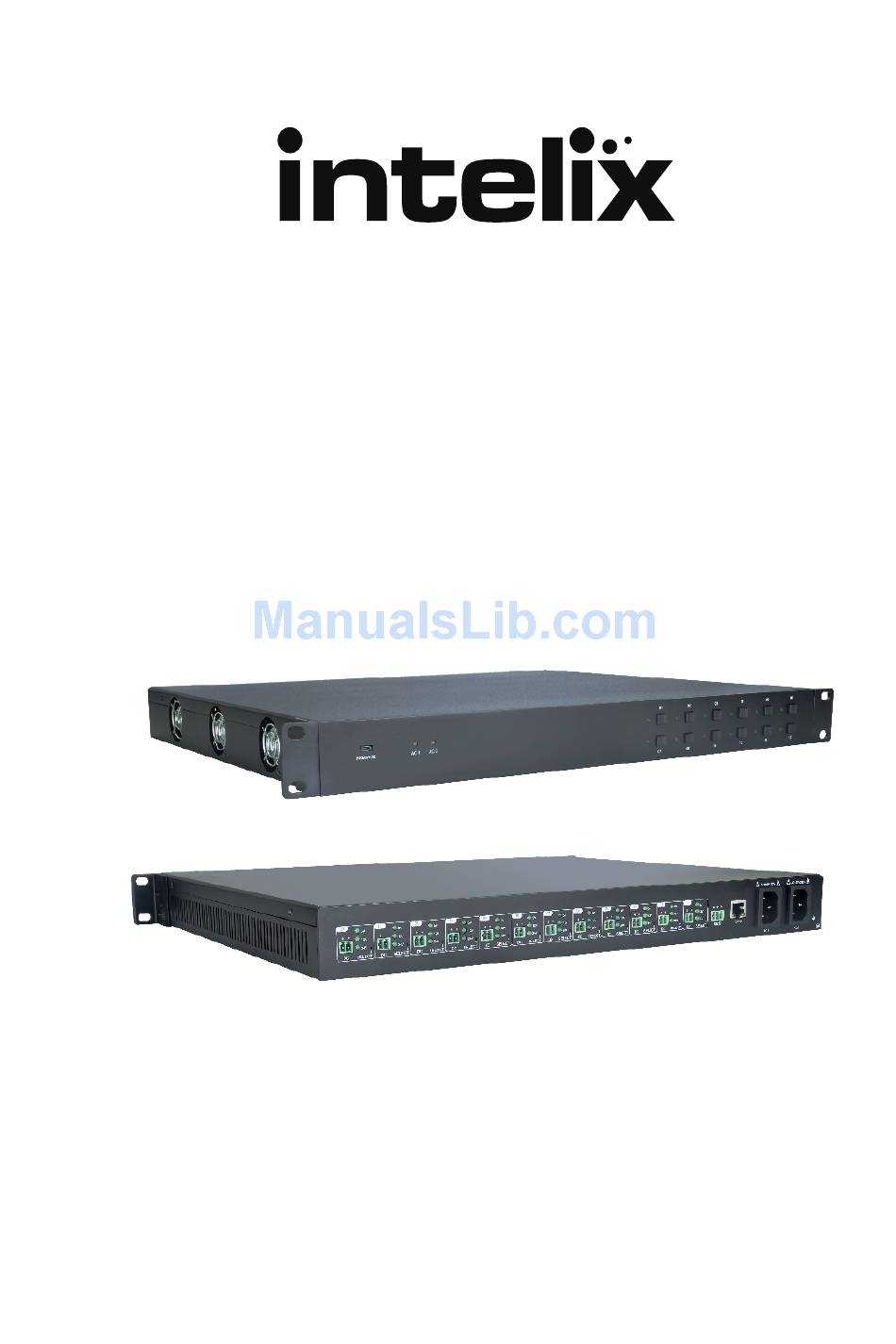

1. Introduction 1.1 Brief Introduction The INT-PSU12 is an integrated switching power supply designed for converting AC into DC power. The unit provides 2 input channels and 12 output channels, input voltage 100~240VAC, output 5/12/24VDC, the max power consumption of single channel is 15W.
Page 10: Panel Description
INT-PSU12 Installation Guide 2. Panel Description 2.1 Front Panel FIRMWARE AC 1 AC 2 Name Description FIRMWARE USB port for updating system firmware. ① Input AC source indicators. Green when the device is powered on and normal output. AC1 & AC2 ②...
Page 11 INT-PSU12 Installation Guide Name Description 12 output channals. DC: 2-Pin phoenix connector, connect with the device needed to be powered. SELECT: Press the TACT Switch to select the output voltage among 5V, 12V, and 24VDC. In addition, simultaneously long-press this buttons on channel 01 and channel 02 for 3 seconds or more, the device will be ①...
Page 12: System Connection
INT-PSU12 Installation Guide 3. System Connection 3.1 Usage Precautions System should be installed in a clean environment and has a prop temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated and safe. All devices should be connected before power on.
Page 13: System Operations
INT-PSU12 Installation Guide 4. System Operations 4.1 Front Panel Buttons Switch on/off output channel: Press the button 01~12 on front panel to switch on/off the corresponding output channel. Lock/unlock output channel: Long-press the button 01~12 for 3 seconds or more on front panel to lock/unlock the corresponding channel, and then the corresponding LED will flash 3 times.
Page 14: Rs232 Communication Commands
INT-PSU12 Installation Guide Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in Command Sending Area.
Page 15 INT-PSU12 Installation Guide Command Function Feedback Example x =5/12/24. When y =1~12, Set the output voltage as X for the output channel y. [y] Output [x]V. x =5/12/24. 01 Open. 02 Closed. When x = NULL, query the on-off status of all output channels.
Page 16 INT-PSU12 Installation Guide Command Function Feedback Example Out 01 02 03 04 05 06 07 08 09 10 11 12 Vm1 12 12 12 12 12 12 12 12 12 12 12 12 When x = NULL, query all groups.
Page 17 XX XX FE For example: FA 50 54 4E 00 00 00 00 00 00 00 00 00 00 00 00 00 FE(Intelix) Modify product model. The command has 18 bytes in total, FB XX XX XX XX and 16 bytes are effective.
Page 18: Web-Based Gui Control
INT-PSU12 Installation Guide 4.3 Web-based GUI Control In addition to control the product via front panel button and RS232 communication software. This product can be controlled via web-based GUI. It allows users to interact with the product through graphical icons and visual indicators.
Page 19: Control Menu
INT-PSU12 Installation Guide 4.3.1 Control Menu Type user name: user and password: user (default setting) on the log-in interface, and then click Login to enter Control menu shown as below: Select the ON/OFF to switch on/off the output channel. Click the All On to switch on all output channels.
Page 20: Voltage Setting Menu
INT-PSU12 Installation Guide 4.3.2 Voltage Setting Menu Click Voltage Setting on the top of page to enter voltage setting menu shown as below: In this interface, you can select 5V, 12V, or 24V for each output channel. 4.3.3 Network Menu...
Page 21: Password Menu
INT-PSU12 Installation Guide In this interface, dynamic or static IP mode can be selected. Under static IP mode, IP address and subnet mask, gateway can be set and make sure the IP addresses are different to avoid IP conflict. 4.3.4 Password Menu Click Password on the top of page to enter password menu shown as below: In this interface, the password can be modified as you need.
Page 22: Specification
INT-PSU12 Installation Guide 5. Specification Input & Output Input Port AC1 & AC2 Input Voltage 100~240VAC 50~60Hz Output Port Total 12 DC port (2-Pin phoenix connectors) Output Voltage 5V, 12V or 24V can be selectable. 5V: 4.75~5.25V Output Voltage Range 12V: 11.4~12.6V...
Page 23: Panel Drawing
INT-PSU12 Installation Guide 6. Panel Drawing 437 mm FIRMWARE AC 1 AC 2 AC100V 240V AC100V 240V SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT SELECT RS232 TCP IP...
Page 24: Troubleshooting & Maintenance
7. Troubleshooting & Maintenance Problems Causes Solutions Power supply protect function Please reduce loads. will start when over loaded. After selecting output voltage, Switch output No output voltage the output channel will switch off channel via front panel automatically. button. Make sure the connection Fail or loose connection is good.
Page 26 Intelix is a brand of Liberty AV Solutions. 11675 Ridgeline Dr. Colorado Springs, CO 80921 Toll-Free: 800-530-8998 Fax: 719-260-0075 www.libav.com...
