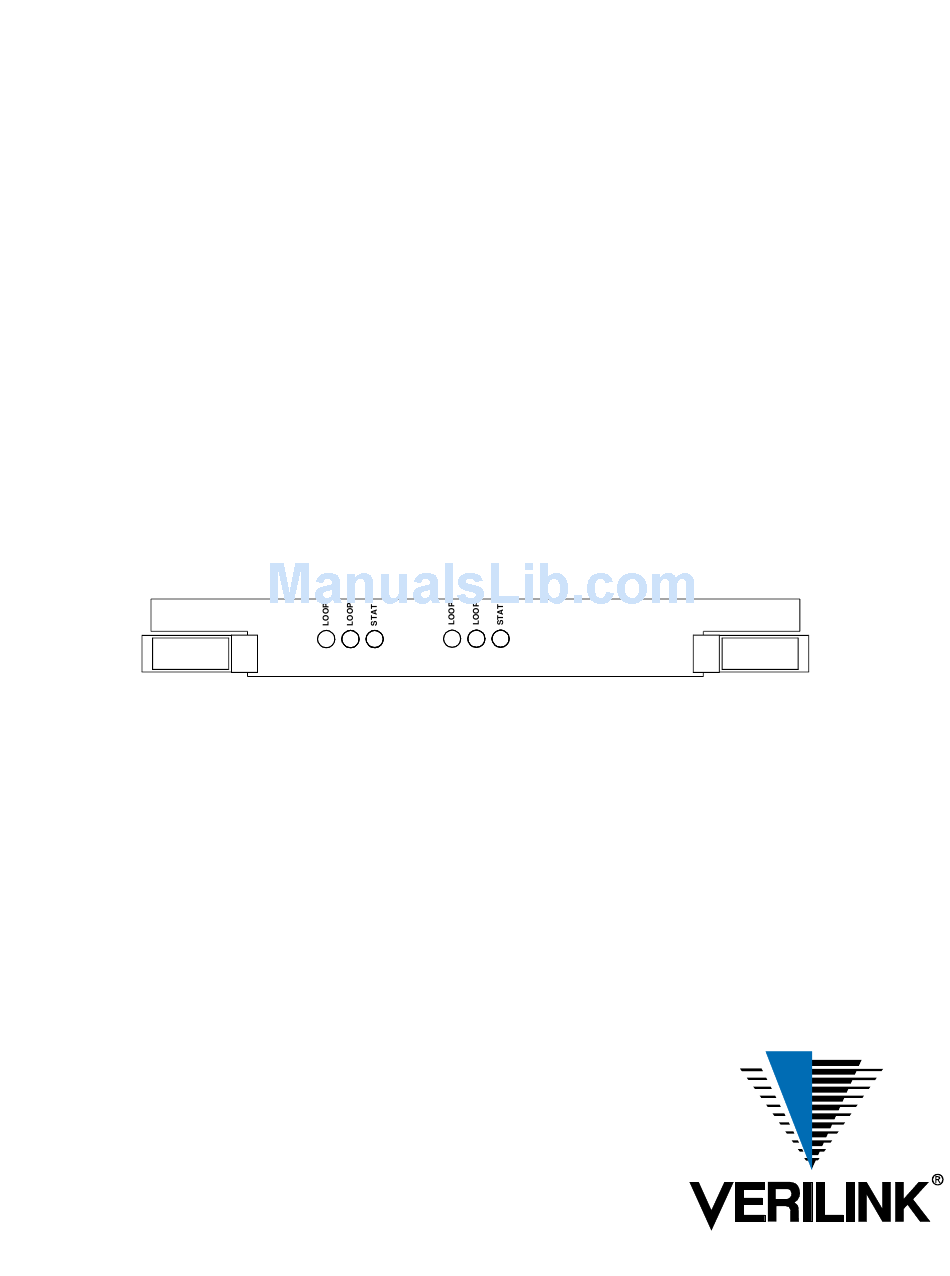

- Page 1 Verilink DIU 2131High-Low Module User Manual September 1999 P/N 880-502765-001-D1 2131 DATA DATA PORT 2 PORT 1 NEAR NEAR...
- Page 2 Copyright 1999 Verilink Corporation. All rights reserved. This document does not create any express or implied warranty about Verilink or about its products or services. Verilink’s sole warranty is contained in its product warranty. The end-user documentation is shipped with Verilink’s products and constitutes the sole specifications referred to in the product warranty.
- Page 3 • No customer is authorized to repair this equipment, regardless of warranty status. All repairs must be performed by Verilink or an authorized agent. It is the responsibility of users requiring service to report the need for service to Verilink or to one of our authorized agents.
- Page 4 • Slots and openings in the shelves are provided for ventilation to protect them from overheating. These openings must not be blocked or covered. Never place this product near a radiator or heat register. Verilink DIU 2131 User Manual...
- Page 5 If the product has been dropped or if the cabinet has been damaged. Product Warranty Verilink’s product warranty covers repair or replacement of all equipment under normal use for a five-year period from date of shipment. Replacement products may be new or reconditioned.
- Page 6 Verilink DIU 2131 User Manual...
- Page 7 Logging on ...................2-3 SCC 2020 ....................2-3 DIU 2131 ....................2-3 3 Configuration Menu ..................3-1 Pre-requisites ....................3-1 Configuring the DIU 2131 ................3-1 Menu Layout ..................3-2 Assigning the DIU to a CSU ..............3-2 Setting DIU up for Multiplexing ............3-3 Summary of Commands ..............3-4 4 Diagnostics and Troubleshooting ..............4-1...
- Page 8 Verilink User Guide...
-
Page 9: High-Low Application
T1 line. There are two data ports on the DIU 2131 rear connector module, the HLM 2532: • Port 1 is a high-speed V.35 synchronous port, providing n × 56 (default) or n ×... -
Page 10: Network Management
RS232 DATA PORT 2 Network The DIU 2131 can be in a node controlled by an SCC or NCM Management controller module. These controllers can be managed by the Craft interface, SNMP or Node Manager. Remotely located users can also use Telnet over Ethernet or SLIP to access the Craft interface. -
Page 11: Quick Set-Up
Chapter Quick Set-up The DIU 2131 multiplexes data from a high-speed and low-speed application onto a shared T1 line. The high-speed application could be a file server, router, bridge, video teleconference codec, or any device with a synchronous connection. The low-speed application can be up to 64 kbit/s, or one T1 timeslot. -
Page 12: Physical Configuration
V.35 connector. • The T1 has ESF framing and B8ZS line coding. • The DIU 2131 is sending data to the T1 port on an SCC 2020 in a Dual-line shelf. • We are accessing the DIU 2131 via a terminal emulator connected to the Craft port on the SCC 2020. -
Page 13: Logging On
DIU 2131 After configuring a CSU, you can configure each associated DIU for operation with that CSU. Configuration and diagnostics for the DIU 2131 are located on the same menu. From the , access this screen by using the Shelf, Slot... - Page 14 2. Type “2-5”. 3. Type “D2” to assign the DS0 for Port 2. 4. Type “1”. Assign Mode Since we are using ESF, we have 64 kbit/s available in each timeslot. 5. Type “M2” and select 19.2 kbit/s. Verilink User Manual...
-
Page 15: Configuration Menu
Configuration/Diagnostic Menu. Pre-requisites Before configuring the DIU 2131, the associated CSU must be configured for Mux mode. This is done using the DIU bus option in the CSU’s Configuration Menu to choose Data Bus A, B or C. See the CSU manual for more information, either the SCC 2020 User Manual or the TAC 2010 User Manual. -
Page 16: Menu Layout
The statistics area provides the following information: Statistics Statistics Statistics Statistics FW/HW Rev FW/HW Rev FW/HW Rev FW/HW Rev DIU 2131 firmware and hardware revision numbers 1.0/0.8 1.0/0.8 1.0/0.8 1.0/0.8 Whether the battery power is “OK” or “LOW” Battery Battery Battery... -
Page 17: Setting Diu Up For Multiplexing
. A second prompt line will appear, requesting you to NTER enter the slot number of the related CSU. Setting DIU up Figure 5-2 shows how to set up the DIU 2131 configuration screen for Multiplexing for muxing. Figure 3-2... -
Page 18: Summary Of Commands
Configuration Menu If you have Verilink equipment at the other end, make sure that an (far-end loopback) can be successfully done before turning the circuit over to your customer. NOTE: Errors in (port), or (mode) will cause to fail. Summary of... - Page 19 Activates and clears a data channel loopback on the currently accessed (near-end) DIU. far loopback Activates a data channel loopback at the far-end DIU 2131. This command sends a loop-up code on the selected DIU data channel to the far end. Upon receiving this code, the far-end DIU activates the appropriate data channel loopback.
- Page 20 Configuration Menu Verilink User Manual...
-
Page 21: Diagnostics And Troubleshooting
Performance registers are available in the CSU Performance Monitoring Menu. DIU 2131 Front Panel The DIU 2131 front panel has three LEDs for each customer data port: Near End Loop The Near End Loop LED lights yellow when the associated data port is looped on the DIU. - Page 22 This • Solid Green for 6 Seconds, then 3 Flashes of Red (repeated): indicates that the DIU 2131 has a low battery. This alarm will only be displayed by both STAT LEDs. DIU is faulty or problem in equipment connections.
-
Page 23: Monitoring Test Pattern Errors
Diagnostics and Troubleshooting Monitoring Test The DIU 2131 has bidirectional loopbacks that can be used with Pattern Errors test patterns. (Block Error Counter) command generates and monitors a DIU test pattern for errors. The monitoring is “real time,” not historical. The count is updated every second. -
Page 24: Monitoring Leads And Status
To monitor the status of the leads: 1. Type and the port number in the prompt line of the “P” 2131 Configuration/Diagnostic Menu [1, 2] DIU 2131 > P1 2. Press E . The following information displays in the prompt NTER line area. - Page 25 ON: DIU is in any test mode (Test Mode) OFF: the DIU is not in any test 3. Press E to exit the screen. NTER 4. The screen updates every second to display the status. Status information is not stored. Verilink User Manual...
- Page 26 Diagnostics and Troubleshooting Verilink User Manual...
-
Page 27: A Specifications
Appendix Specifications The specifications for the DIU 2131 are given below: Applications Interface × Data Rate Port 1: n 56/64 kbit/s increments Port 2: 2.4, 4.8, 9.6, 19.2, 28.8, 38.4, 56, 64 kbit/s Number of Data Ports 2 Channelization SF/ESF, user-assigned slots... - Page 28 Dual Channel Service Unit...
- Page 29 3-4 monitor leads and status command 3-5 DIU 2130 2-3, 3-1 mux mode assigning to CSU 2-3, 3-2, 3-4 channel agreement 3-3 clocking 3-4 validating the configuration 3-3 enable loop 3-5 menu layout 3-2 Verilink User Manual Index-1...
- Page 30 3-4 ST 3-4 T command 3-4, 3-5 test and monitor BEC command 3-5 test mode 4-5 test signals errors 4-3 TM 4-5 See also Test Mode TT 3-4 See also terminal timing TxD 4-4 Index-2 Verilink User Manual...
- Page 31 VERILINK CORPORATION September 1999 127 JETPLEX CIRCLE, MADISON, ALABAMA 35758 P/N 880-502765-001D1 TEL: (800) 837-4546...
