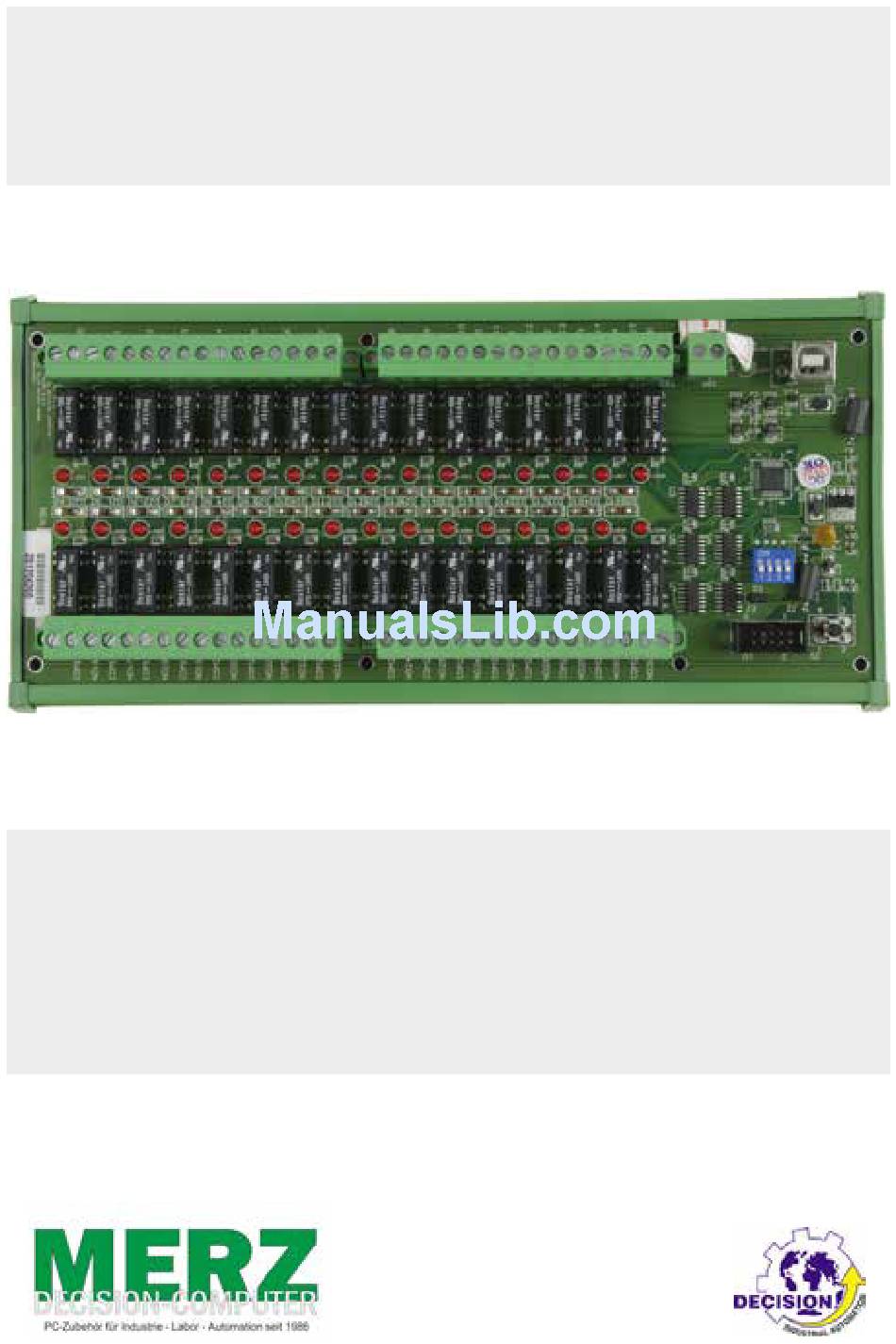

- Page 1 USB-I/O Manual UHR-32 - DIN-Rail-Version UPR-32 - Board-Version 32 relay output channels DECISION-COMPUTER Jürgen Merz e.K. Lengericher Str. 21 49536 Lienen Telefon +49 (0)5483-77002 Telefax +49 (0)5483-77003 http://www.decision-computer.de...
- Page 2 Data Product Code: Features: AUSB32R USB 32 RELAY BOARD For direct DIN-Rail mounting UHR-32 - DIN-Rail-version Also as board without DIN Rail adapter available UPR-32 - Board-version High Speed 8051 μC Core Bus: USB 2.0 USB 2.0 Function Controller Support USB ID 0~14 SET...
- Page 3 J1 USB Connection USB-B A suitable cable is included +5 VDC (USB VBUS POWER) Data - Data + SGND Signal Ground USB wiring is very sensitive against EMI errors (mainly sparking when opening contacts). The U-EMI-1 Kit is included with the DIN rail version and includes two Würth folded cores for the USB data cable and a Ferrite sleeve for the power cable.
- Page 4 S1 Reset Button To reset the "hanging" USB-Module S2 USB ID Set different ID for each board Card ID Multiple Boards Connect When you need to connect more than 3 boards on one PC, please make sure the following below 1.
- Page 5 TB2/3 Relay-Output TB4/5 Signal Description Signal Description COM 0 Relay Ch. 00 - Output COM 16 Relay Ch. 16 - Output NO 0 Relay Ch. 00 - Output NO16 Relay Ch. 16 - Output COM 1 Relay Ch. 01 - Output COM 17 Relay Ch.
- Page 6 Relay-Out Schematic Contact protection circuits Contact protection circuits When a reed relay is used with an electromagnetic relay or solenoid, the energy stored will cause an inverse voltage when the reed contacts break. The voltage, although dependent on the inductance value, sometimes reaches as high as several hundred volts and becomes a major factor to deteriorate the contacts.
- Page 7 Size...
- Page 8 Installation The decision-computer USB devices use the HID (human interface device). The HID belongs to the generic device class is integrated in the operating system. If a new HID device is connected, no driver installation is required. The functions for access and control of HID hid.dll you can find in the Windows System32 folder.
- Page 9 SOFTWARE-PROGRAMMING UNDER WINDOWS AND LINUX On Windows, we offer a function library and dll file as programming help. See the manual „USBDII_Manual.pdf“ and demo code in VB/VC / Delphi on the decision-Studio CD. We offer a C-source Linux users for direct access to the USB devices. See „Dcihid 0.5.1.tgz“ manual and example. DIAGNOSTICS UNDER WINDOWS/XP USB test Program.exe is a diagnostic tool to test USB devices on Windows/XP.
- Page 10 USB byLAN or Wireless The remote control of Decision USB products by LAN or wireless with a remote-PC is very simple with a multi port USB Server Because no driver should be installed to the installation and programming is very easy. Under Windows, are the external USB I/O directly in the Device Manager and can be connect or control such as in the original host PC.
- Page 11 APPENDIX B DATA SHEET...
- Page 13 A.1 Copyright Copyright DECISION COMPUTER INTERNATIONAL CO., LTD. All rights reserved. No part of SmartLab software and manual may be produced, transmitted, transcribed, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of DECISION COMPUTER INTERNATIONAL CO., LTD.
