Analog - Digital - Converter
AWA/2X12B
2 x 12 Bit
Digitronic Automationsanlagen GmbH
Auf der Langwies 1 • D - 65510 Hünstetten-Wallbach • Tel. +49 6126 9453-0 • Fax -42
Internet: http://www.digitronic.com • E-Mail: mail@digitronic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWA/2X12B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitronic AWA/2X12B

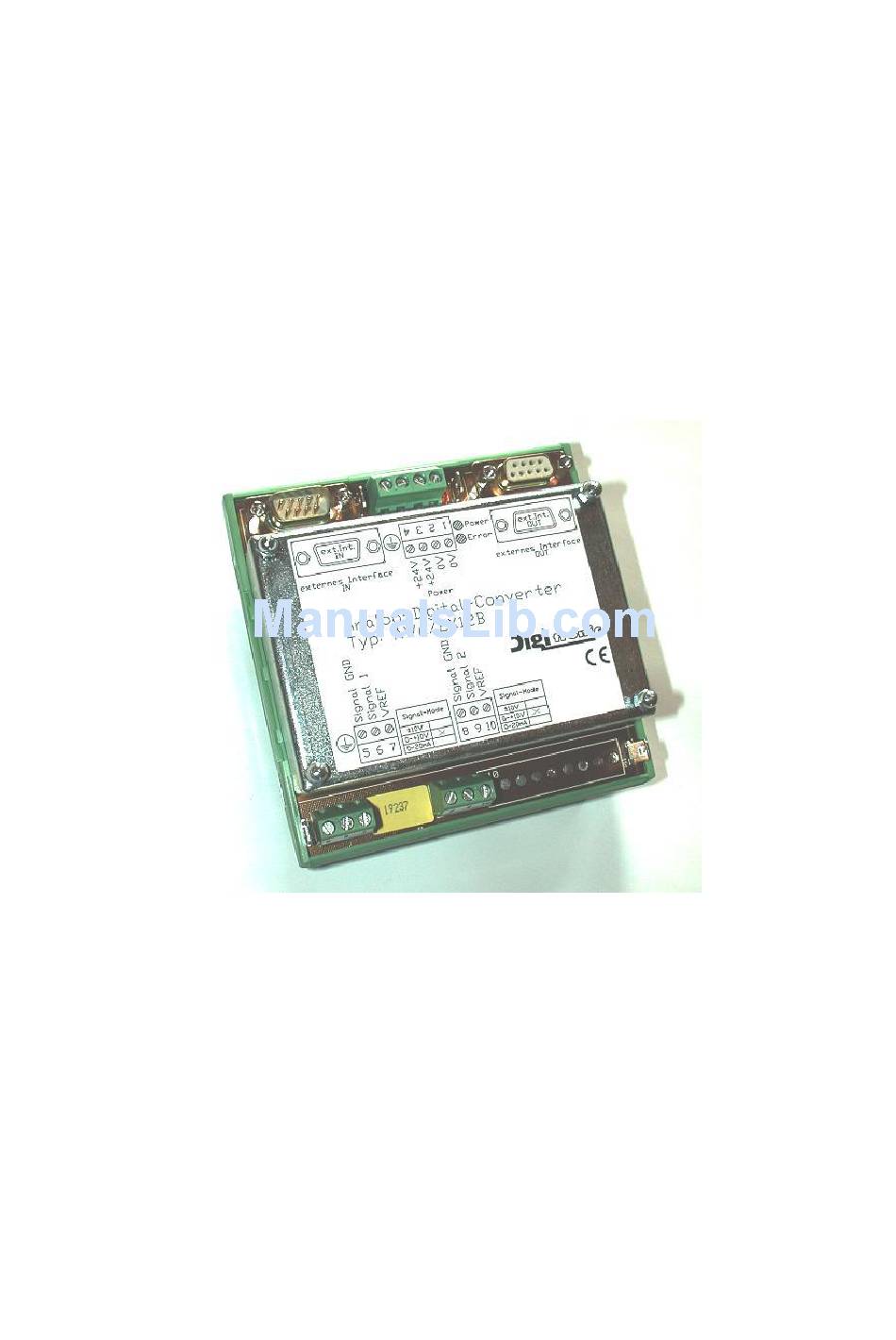

  • Page 1 Analog - Digital - Converter AWA/2X12B 2 x 12 Bit Digitronic Automationsanlagen GmbH Auf der Langwies 1 • D - 65510 Hünstetten-Wallbach • Tel. +49 6126 9453-0 • Fax -42 Internet: http://www.digitronic.com • E-Mail: mail@digitronic.com...
  • Page 2 The device AWA/2X12B and this instruction manual are protected by copyright. All rights are reserved. Neither the device AWA/2X12B, nor this document may be copied as a whole or partially, photocopied, reproduced, translated or transferred to electronic media of any kind or into machine readable format without prior written permission by the company Digitronic Automationsanlagen GmbH.
  • Page 3 Digitronic Analog - Digital - Converter Automationsanlagen GmbH AWA/2X12B Table of contents 1. Introduction ............................4 2. Assembly.............................. 4 3. Status LED ............................4 4. Dimensions ............................5 5. Terminal alllocation ..........................6 5.1. Terminal allocation of the power supply.................... 6 5.2.
  • Page 4: Introduction

    AWA/2X12B 1. Introduction The analog - digital - converter AWA/2X12B is used as an input module for the electric camswitches of the CamCon series. The converter has two independent voltage - (-10V - +10V respective 0 - +10V) or power inputs (0 - 20mA) with a resolution of 12Bit, that can be connected via a 6 pole datacable to the external interface of the CamCon devices DC50/561, 90 and 115.
  • Page 5: Dimensions

    Digitronic Analog - Digital - Converter Automationsanlagen GmbH AWA/2X12B 4. Dimensions LED1 LED2 The following mounting rails may be used to assemble the case: NS 35 / 7.5 (DIN 50022) NS 35 / 15 (DIN 50022) NS 32 (DIN 50035) Edition: Jun.
  • Page 6: Terminal Alllocation

    5.4. Pin allocation of the external interface The analog - digital - converter AWA/2X12B has an external interface via which the data transfer with the CamCon device is done. Via the interface input the data exchange with the CamCon e.g.
  • Page 7: Configuration

    The analog inputs' signal level can be changed by solding bridges on the solder side of the AWA/2X12B's printed circuit board. The following input signals can be set: "0-20mA", "-10V - +10V" or "0 - +10V". The adjusted signal level is marked for every input by with a cross on the metal cap.
  • Page 8: Calibration

    Set the now present voltage or it's corresponding value and seal the potentiometer with sealing wax. If the voltage source is potentially free towards the AWA/2X12B, you are able to reserve the polarity of the voltage at the terminals 5 + 6 or 8 + 9. The display now should show the negative value of the same size as it was the positive before.
  • Page 9: Technical Data

    Digitronic Analog - Digital - Converter Automationsanlagen GmbH AWA/2X12B 7. Technical data Voltage supply:............24VDC +-20% Power conssumption:..........150 mA Input ranges: ............"0 - +10V" or "0 - 20mA" Input resistance at voltage input............RL = 10 kOhm at power input:............RL = 220 Ohm Resolution ..............
