Summary of Contents for Radio Waves 104590-1 FPD.5-5.8-18

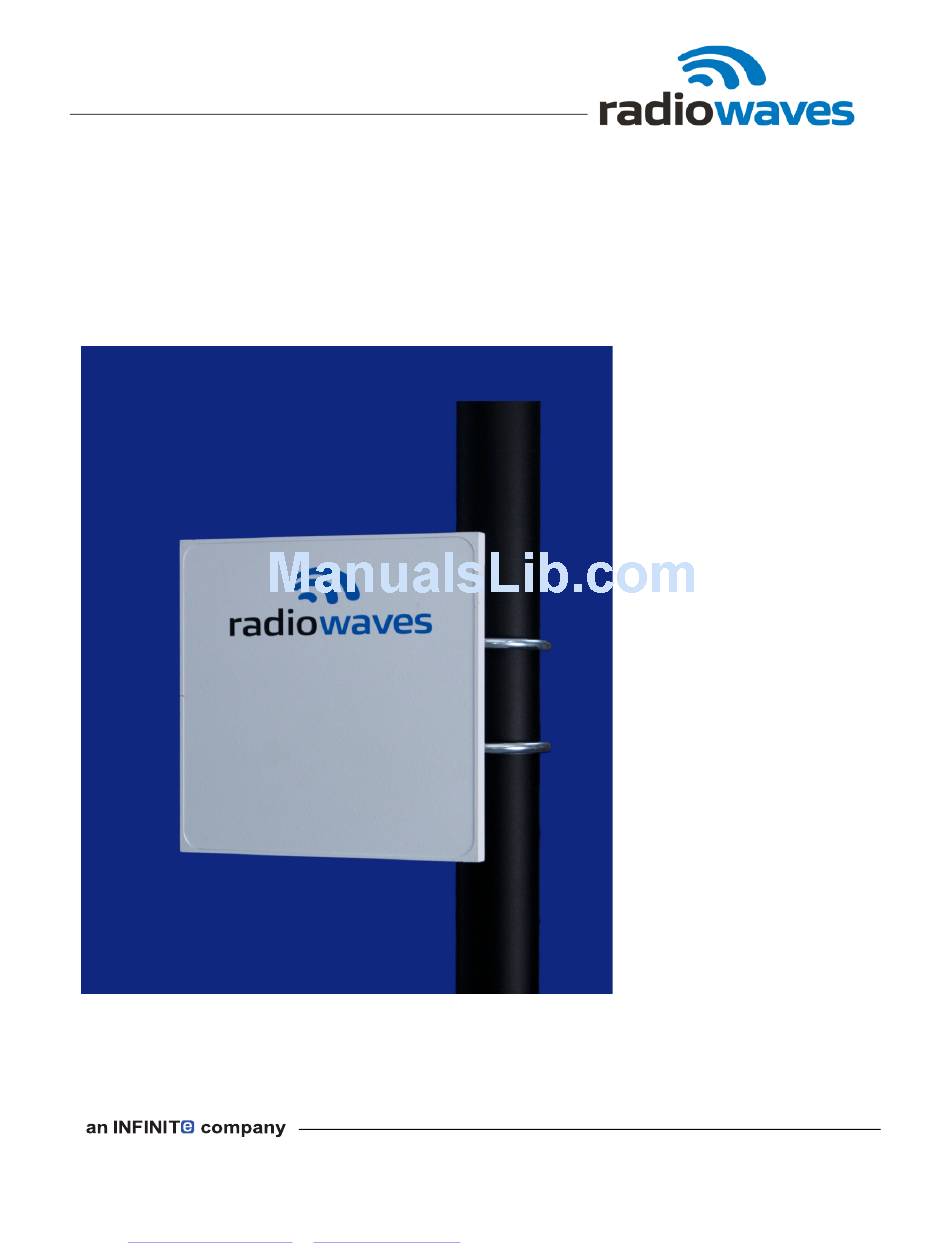

- Page 1 Installation Guide F or 104590-1 FPD.5-5.8-18 Antenna 495R Billerica Ave. – North Billerica, MA 01862 USA Tel (978)459-8800 fax (978)459-3310 / 8814 Email: sales@radiowaves.com www.radiowaves.com ...
- Page 2 DISCLAIMER Radio Waves Inc. disclaims any responsibility or liability for damage or injury resulting from incorrect or unsafe installation practices. Your FPD flat panel antenna shipped to you in one box containing the following components: 1.
- Page 3 The mounting bracket may be removed, flipped and re-attached to facilitate left or right hand mounting. 2. Mount Antenna to pole using U-bolts as shown. (Right hand mounting shown Horizontal feed (Marked H) ...
- Page 4 Adjust Azimuth as Shown: Twist antenna on pole to adjust azimuth 4. Tighten U-bolt hardware to finalize installation Torque all hardware (1/4-20) to 50 in/lbs. NOTE: The pictures provided in this document are for illustrative purposes only and may not be identical to your antenna system.
-
Page 5: Safety Information
NEVER OPERATE OR LOCATE THIS OR ANY EQUIPMENT NEAR POWER LINES Electrocution Hazard: Portable or Mobile Installation. If you are installing a Radio Waves Inc. component or part on a portable or mobile platform such as a Portable Tripod, Mast, Truck, or Van, be sure all safety procedures are followed and that operators have been properly trained.
