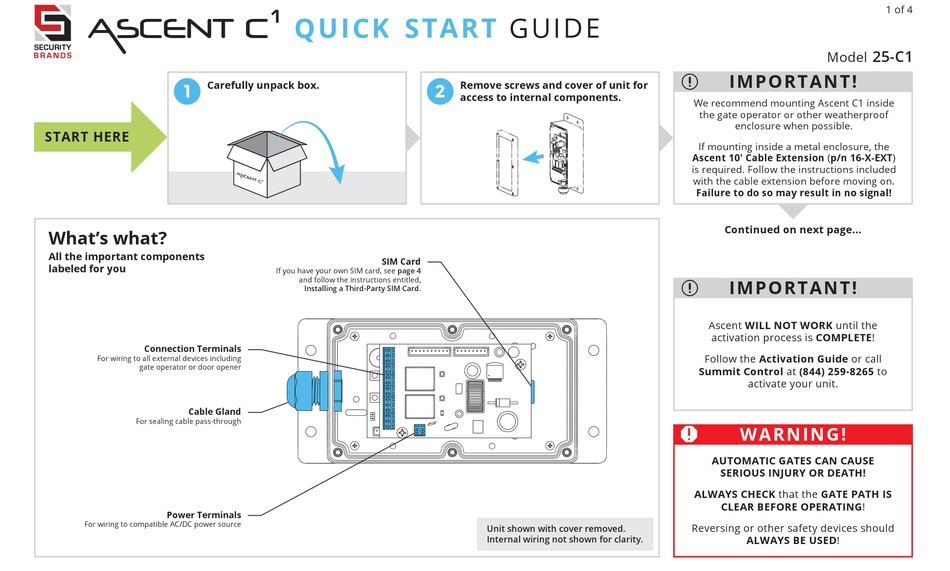

Carefully unpack box.
1
START HERE
What's what?
All the important components
labeled for you
Connection Terminals
For wiring to all external devices including
gate operator or door opener
Cable Gland
For sealing cable pass-through
Power Terminals
For wiring to compatible AC/DC power source
Q U IC K S TA R T
2
SIM Card
If you have your own SIM card, see page 4
and follow the instructions entitled,
Installing a Third-Party SIM Card.
GUI DE
Remove screws and cover of unit for
access to internal components.
Unit shown with cover removed.
Internal wiring not shown for clarity.
Model
IM P O R TAN T!
r
We recommend mounting Ascent C1 inside
the gate operator or other weatherproof
enclosure when possible.
If mounting inside a metal enclosure, the
Ascent 10' Cable Extension (p/n 16-X-EXT)
is required. Follow the instructions included
with the cable extension before moving on.
Failure to do so may result in no signal!
Continued on next page...
IM P O R TAN T!
r
Ascent WILL NOT WORK until the
activation process is COMPLETE!
Follow the Activation Guide or call
Summit Control at (844) 259-8265 to
activate your unit.
W A RN ING !
AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH IS
CLEAR BEFORE OPERATING!
Reversing or other safety devices should
ALWAYS BE USED!
1 of 4
25-C1
Advertisement
Summary of Contents for Ascent 25-C1
- Page 1 IM P O R TAN T! Carefully unpack box. Remove screws and cover of unit for access to internal components. We recommend mounting Ascent C1 inside the gate operator or other weatherproof enclosure when possible. START HERE If mounting inside a metal enclosure, the Ascent 10' Cable Extension (p/n 16-X-EXT) is required.
-
Page 2: Installation Complete
INSTALLATION COMPLETE! For additional wiring Now follow the Activation Guide to create options, see Page 3. an account and begin using Ascent. © 2017 Security Brands, Inc. All rights reserved. QSG-25C1-EN Rev. D (9/2017) - Page 3 G U IDE 3 of 4 25-C1 Model Status Check Event Input Wiring to enable Gate Status Check Wiring for accessories such as a request-to-exit device Ascent Connection Terminals Ascent Connection Terminals STATUS DIGITAL INPUTS EVENT RELAY B RELAY A STATUS...
- Page 4 Using a power source, such as solar, verify that Double check that you’ve wired from Third-Party it conforms to the following specs: positive on Ascent to positive on your Power Source power source and negative on Ascent to Input 12–24 VAC/DC negative on your power source.
