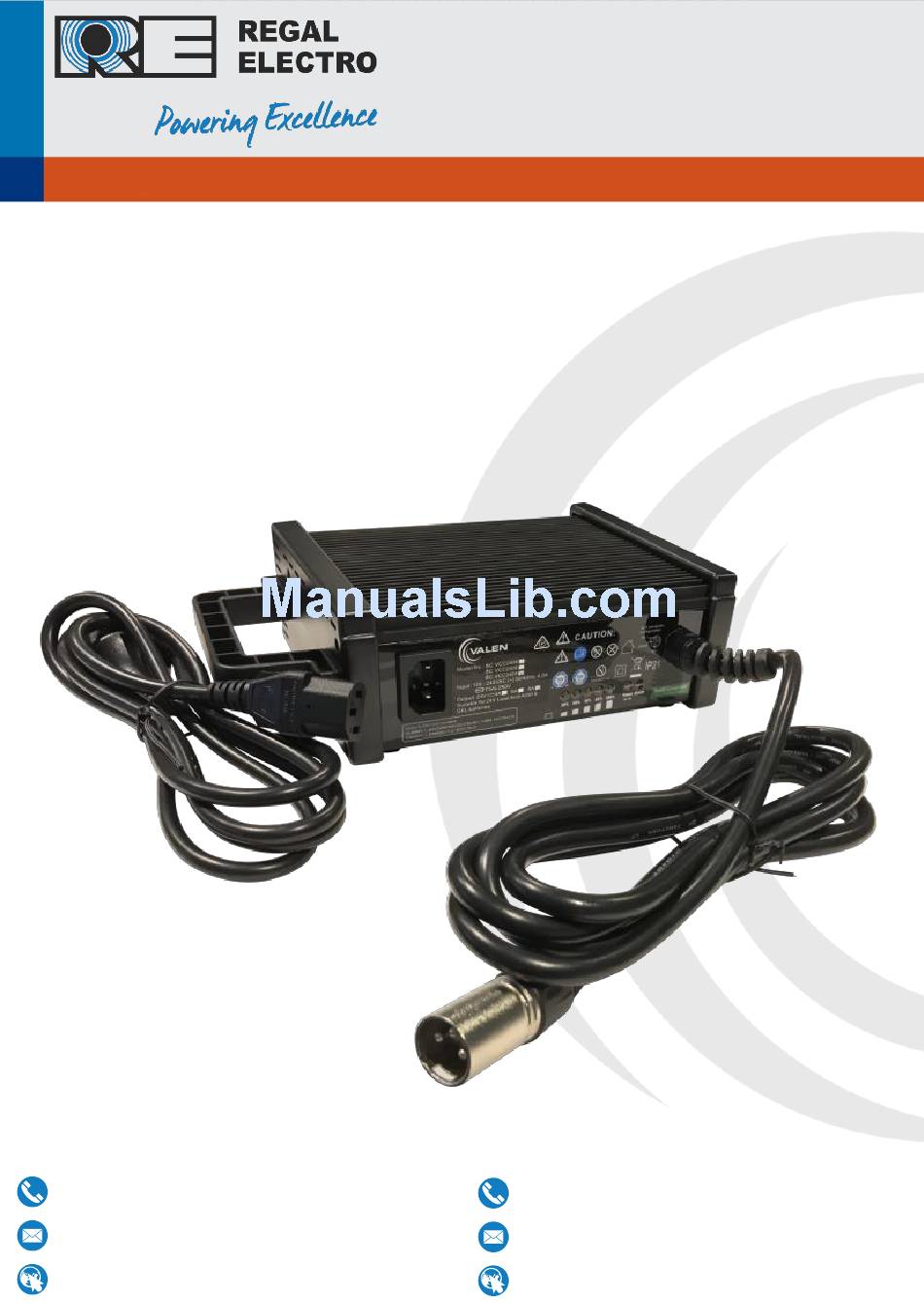

Page 1: Battery Charger
Battery Chargers Valen 24V6A Convection Cooled Battery Charger OPERATIONS MANUAL Valen 24V6A Convection Cooled Battery Charger AU: 1300 734 253 NZ: 0800 734 253 AU: sales@regalelectro.com.au NZ: sales@regalelectro.co.nz AU: www.regalelectro.com.au NZ: www.regalelectro.co.nz... -
Page 2: Product Information
Battery Chargers Valen 24V6A Convection Cooled Battery Charger SPECIFICATION: MODEL BC VCC2406 COOLING Convection Cooled INPUT AC VOLTAGE 100 - 240VAC, 50 - 60Hz OUTPUT DC VOLTAGE 28.9V Max. (24V Nominal) OUTPUT CURRENT LED INDICATOR Yellow on: Battery Charging Capacity Green on: Fully Charged Orange Flash: Charger self-test fail Orange on: Charger not connected to battery... - Page 3 Battery Chargers Valen 24V6A Convection Cooled Battery Charger OPERATING INSTRUCTION: Turn off the Power Chair or Mobility Scooter. Ensure the output voltage of the charger is compatible to the voltage of the batteries. Connect the battery charger cannon plug to the charge port of the Mobility Scooter or Power Chair.
- Page 4 3. If neither orange, yellow or green LED indicator lights are on, the charger is likely to be defective. Please return to REGAL ELECTRO for further trouble shooting. CHARGING LED INDICATOR (ORANGE & YELLOW) LIGHTS HAVE NOT TURNED TO GREEN: 1.
