Model 7365

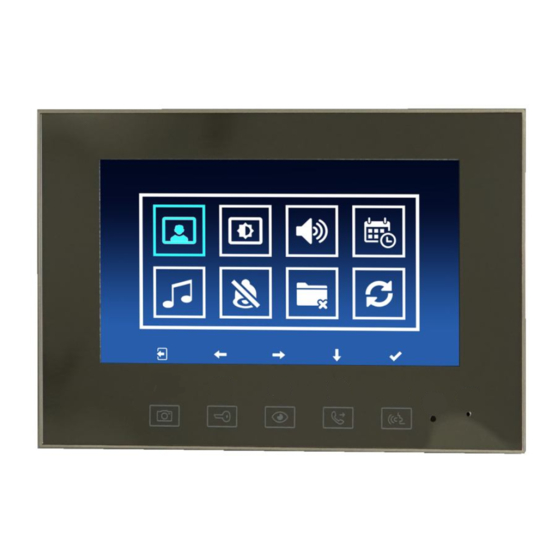

7 Inch Analog Video Door Phone
Notes: meanings of the indicator light
Red light: power supplied
Slowly flashing red light: talking and calling
Quickly flashing red light: being called
2. Features
-User Friendly GUI
-Can store 100 pcs
-5 ringtones
-Set Do-Not-Disturb period
Support an extra CCTV Camera signal input( CVBS signal)
-
-In multi-monitors system, one monitor can call the others.
-In multi-monitors system, one monitor can transfer the call to other monitors.
3. Specifications
Display: 7inch LCD 1024*600
Power: DC 15V
Storage Temperature: -40℃~70℃
Operating Temperature:-20℃~55℃
Outline Dimensions: 220*138*20mm
1. Outlook

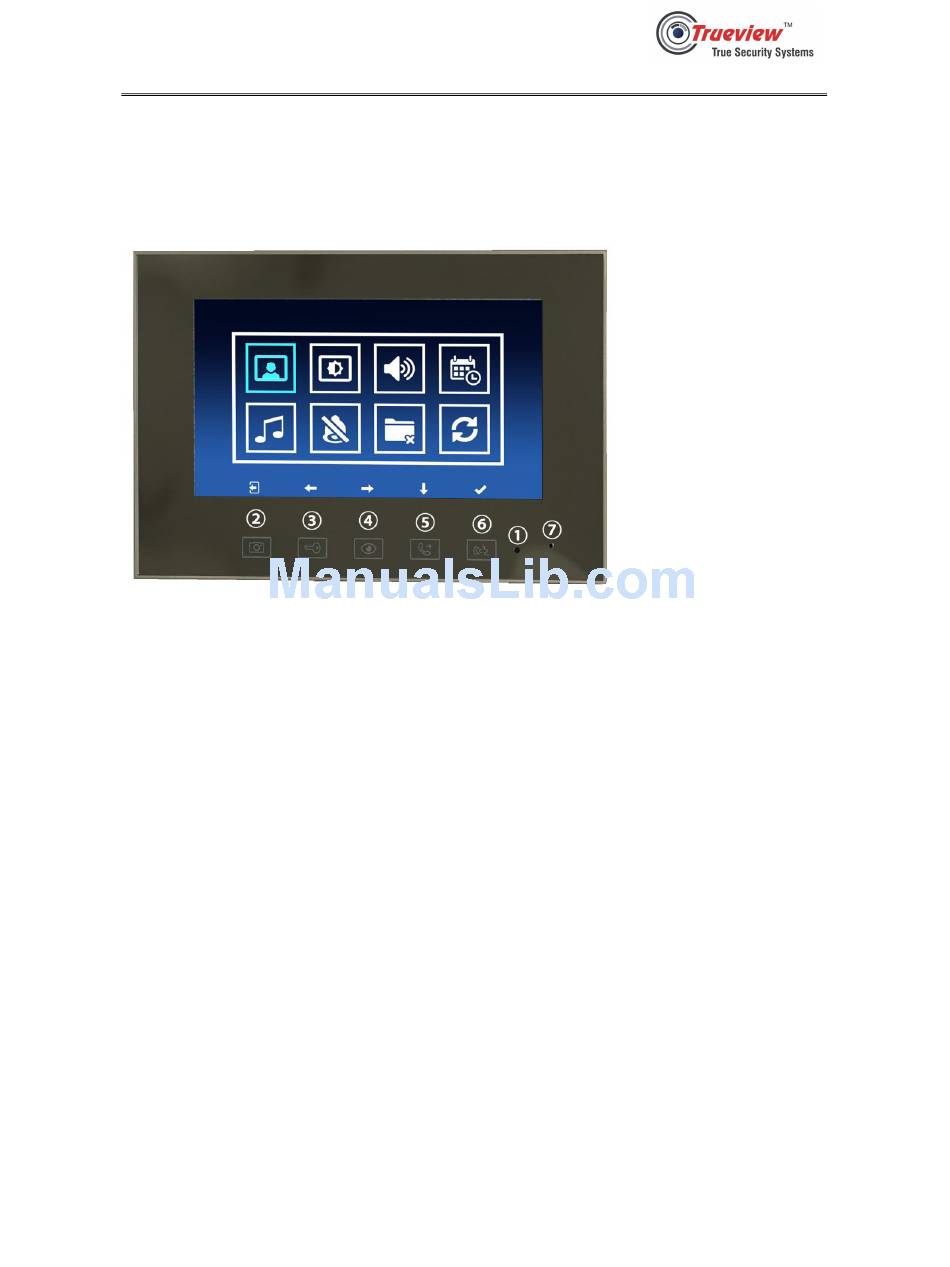

① Red indicator light
② Photographing key
③ Unlock key
④ Monitor key
⑤ Call transfer key
⑥ Talk key
⑦ Mic
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Trueview 7365
-
Page 1: Specifications
Model 7365 7 Inch Analog Video Door Phone 1. Outlook ① Red indicator light ② Photographing key ③ Unlock key ④ Monitor key ⑤ Call transfer key ⑥ Talk key ⑦ Mic Notes: meanings of the indicator light Red light: power supplied... - Page 2 Model 7365 4. Operations 4.1 Call Press the call button on outdoor panel, all the monitors in this system ring and display the image outside the door. The call lasts 30s. 4.2 Monitor 4.2.1 When a monitor is standby, user can press monitoring key to see the image from call panel and CCTV.
- Page 3 Model 7365 4.7 Check photos 4.7.1 When a monitor is standby, press photographing key to check photos. See pic 4.7.1 below, the 5 icons from left to right means “exit”, “previous”, “next”, “delete”, “confirm”. On the top left corner, it shows the ordinal of current photo, the amount of photos stored, and the amount of new photos.
- Page 4 Model 7365 4.8 Settings 4.8.1 Long press monitoring key for 2 seconds to enter settings page. See pic 4.8.1 below, the 5 smaller icons from left to right means “exit”, “left”, “right”, “down”, “confirm”. The eight bigger icons means “check photos”, “video settings”, “volume settings”, “date &...
-
Page 5: Wiring Diagram
Model 7365 5. Wiring diagram Power: 15V DC Input CAM1: used to connect call panel 1 CAM2: used to connect call panel 2 CCTV: used to connect a CCTV video signal input (CVBS video signal) Switch: can be used as the switch of CCTV... - Page 6 Model 7365 Video Door Phone Villa Set This system supports at most 2 outdoor panels and 4 Indoor monitors. Users may determine how many outdoor panels and indoor monitors to be installed as their requirement. Every indoor monitor has an access for an extra video...
- Page 7 Model 7365 Outdoor Panel...
