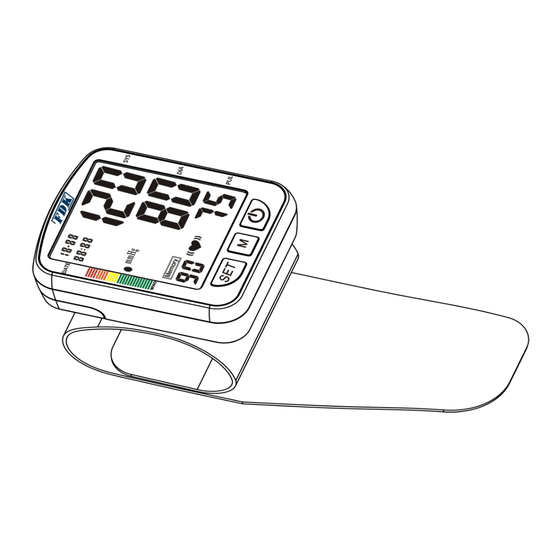

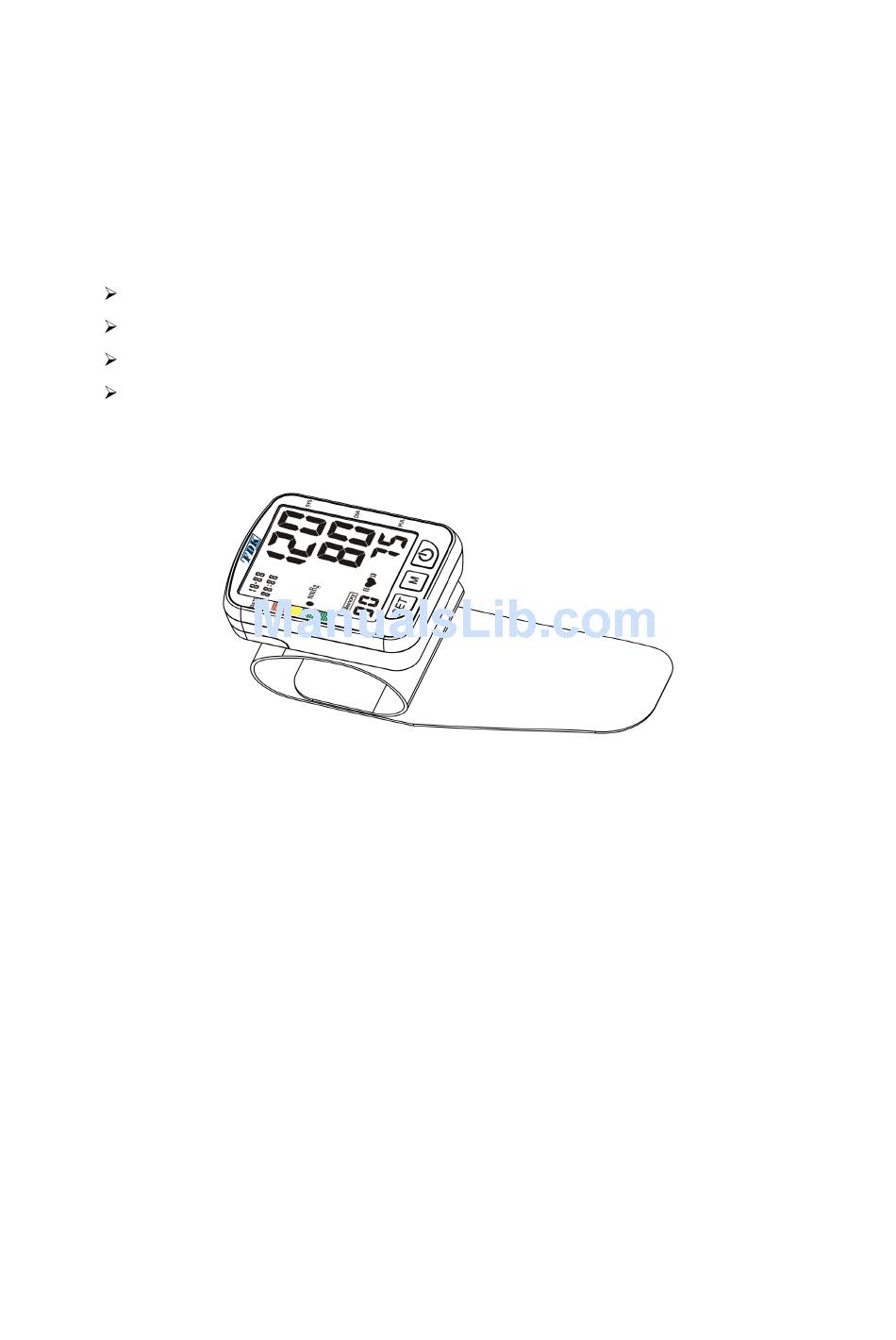

Wrist Blood Pressure Monitor
(Electronic Sphygmomanometer)
Thank your for purchasing our product.
Please read this manual carefully before using the product.
Please keep the manual appropriately for future reference.
This User Manual is suitable to the following models: FT-B11W, FT-B12W,
FT-B13W, FT-B14W, FT-B21Y, FT-B22Y,
FT-B14W-V, FT-B21Y-V, FT-B22Y-V, FT-B13W-UR and FT-B13W-BT.
Table of Contents
(I) General Information
(II) Precaution for Use and Maintenance
(III) Name of Each Part
(IV) Measure Procedure
(V) Troubleshooting
(VI) Model List
User Manual
FT-B11W-V, FT-B12W-V, FTB13W-V,
Advertisement
Summary of Contents for Fudakang FT-B12W
- Page 1 Thank your for purchasing our product. Please read this manual carefully before using the product. Please keep the manual appropriately for future reference. This User Manual is suitable to the following models: FT-B11W, FT-B12W, FT-B13W, FT-B14W, FT-B21Y, FT-B22Y, FT-B11W-V, FT-B12W-V, FTB13W-V, FT-B14W-V, FT-B21Y-V, FT-B22Y-V, FT-B13W-UR and FT-B13W-BT.
- Page 2 I. General Information Intended Use and Indications For Use Fudakang Wrist Blood Pressure Monitor are non-invasive blood measurement system intended to measure the diastolic, systolic blood pressures and pulse rate of an adult individual in hospitals, hospital-type facilities and home environments.
- Page 3 Temperature: -20~55° C Transport and storage Humidity: ＜95% RH Environment Pressure: 86~106 kPa Electric Shock Protection Internal power unit 90 sets of data including date and time Memory Capacity See VI. Model List Inflation Automatic Inflation by internal pump Automatic speed deflation system controlled by Deflation internal electromagnetic valve.
- Page 4 Maintenance: This product is designed for use over an extended period of time; however, it is generally recommended that it be inspected every five years to ensure proper function and performance. The device doesn’t need to be calibrated in five years of reliable service. Modification of this equipment is allowed except change the batteries.
- Page 5 9. Measurement may not be possible for anyone with insufficient blood flow to the area where measurements will be taken or who suffers from a frequent irregular heartbeat. Consult your physician for advice on whether to use the device. 10. DO NOT wrap the cuff around an injured wrist. 11.
- Page 6 5. NEVER clean the blood pressure monitor with thinners or benzene, as they may damage it. 6. DO NOT hard rub when clean the cuff. 7. DO keep the device out of reach of children, pets and insects. III. Name of Each Part Figure 1 - Appearance LCD Display “SET”...
- Page 7 Figure 2 – Display of LCD Note for LCD display: (1) Date: Month – Day (2) Time: Hour – Minute (3) Systolic Blood Pressure (unit: mmHg) (4) Diastolic Blood Pressure (unit: mmHg) (5) Pulse Rate (unit: beat/minute) (6) WHO Blood Pressure Classification Indicator (7) Inflation / Deflation Indicator (8) Blood Pressure Measurement Unit (9) Battery Symbol...
- Page 8 Place batteries with positive “+” and negative “-“ terminals into compartment and make sure they match the indicated terminals in the compartment. Close the battery cover by gently sliding it into the compartment and pressing it into place.. See Figure 3. Note：...
- Page 9 DAY signal will begin to blink. Press the “M” button to change the DAY. Each time when you press the “M” button, it will change one DAY forward. Don't keep on clicking on the 'SET' button without being released during programming. REPEAT THIS PROCESS FOR SETTING THE TIME.
- Page 10 fitting the cuff. ★ Unless your physician recommends otherwise, use the left wrist to measure pressure. ★ The cuff should be snug but not too tight. You should be able to insert two fingers between the cuff and your wrist. See Figure 6. ★...
- Page 11 Figure 7 After you are in a comfortable position, press the “ON/OFF” button. The device will perform a self verification/check. During this verification/check the LCD will display all “8’s”. At the conclusion of the verification/check the LCD will display “00”. See Figure 8. If the device has voice function, it will speak out the displayed blood pressure, heart rate.
- Page 12 ★ To review other results that are in memory – Press the “M” button to scroll through previous measurements. Each time you press and release the “M” button the next oldest result will be displayed. If the “TALKING” function is turned ON, each result will be verbally announced Figure 8 Figure 9...
- Page 13 From the above figure, we can see the classification of blood pressure for adults is as below. The WHO BP Classification Indicating Bar would show out the blood pressure level by the color indicator. Blood Pressure SBP (mmHg) DBP (mmHg) COLOR INDICATOR Classification Optimal...
- Page 14 The device will speak out the last time displayed memory blood pressure (systolic and diastolic blood pressure), and heart rate when reading memory result. Note: The voice function is ONLY for models FT-B11W-V, FT-B12W-V, FT-B13W-V, FT-B14W-V, FT-B21Y-V and FT-B22Y-V. UART connection and Blue Tooth Function...
- Page 15 ● The UART port connector & Cable specification: Any type of USB (micro USB, mini USB, standard USB) or serial connector is defined by the customer. Cable : OD 3.5 +/- 0.1 mm , # 28 x 4 Color wires Contact resistance >2 ohm Insulation resistance: DC 300V 20 Mohm /10 ms The Blue Tooth function model is FT-B13W-BT.
- Page 16 After mobile phone Bluetooth module searched to find the Bluetooth blood pressure monitor, it display “ClinkBlood” . Ⅱ.Press the “ClinkBlood” till “Connected” display on mobile phone screen which means successfully connected with blood pressure monitor. Ⅲ.Slide mobile phone screen to "Slave - > Host" and switch its NOTIFIED VALUES status from "Listen for notifications"...
- Page 17 The above two models have all function as normal NIBP only have different “result output “ method. V. Troubleshooting Abnormality Reason Checkout LCD shows Low Battery Batteries are low. Change new batteries. icon Cuff is not tightened Tighten cuff correctly and refer to properly or its position is “Wrist Cuff Connecting”.
- Page 18 You can test again for light irregular heartbeat patients. It is Irregular heartbeat inappropriate for serious irregular heartbeat patients to use this device. Speaking, frightened Do not speak, take deep breath nervous or excited 2~3 times to relax yourself. measurement Adjust position;...
- Page 19 STATEMENTS AND DECLARATIONS: 1. MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided in the ACCOMPANYING DOCUMENTS 2. Wireless communications equipment such as wireless home network devices, mobile phones, cordless telephones and their base stations, walkie-talkies can affect this equipment and should be kept at least a distance d = 3,3 m away from the equipment.
- Page 20 use RF energy [EQUIPMENT or SYSTEM] only for its internal function. Therefore, its RF emissions Group 1 RF emissions are very low and are not CISPR 11 likely to cause any interference in nearby electronic equipment. RF emission Class B CISPR 11 Harmonic emissions Not applicable...
- Page 21 <5% U (>95% dip in U for 5 sec Power frequency 3A/m 3A/m Power frequency magnetic (50Hz) magnetic fields should be at levels field IEC 61000-4-8 characteristic of a typical location typical commercial hospital environment. NOTE U is the a.c. mains voltage prior to application of the test level. Guidance and manufacture’s declaration –...
- Page 22 observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the [EQUIPMENT or SYSTEM] Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Recommended separation distances between portable and mobile RF communications equipment and the [EQUIPMENT or SYSTEM]...
- Page 23 Symbol for “TYPE BF APPLIED PART” Symbol for “Follow operating instructions” IP22 Symbol for “the IP classification” Symbol for “ RF transmitters” Manufacturer: FUDAKANG INDUSTRIAL CO.,LTD Address :No.8 Yinghe Road, Yuanjiangyuan Management Zone, Changping Town, Dongguan, Guangdong China. Tel: 86-769-81098181 Fax: 86-769-81098187 Website: www.fudakang.com Software Version 1.3...
