Summary of Contents for Luxul XWS-1810

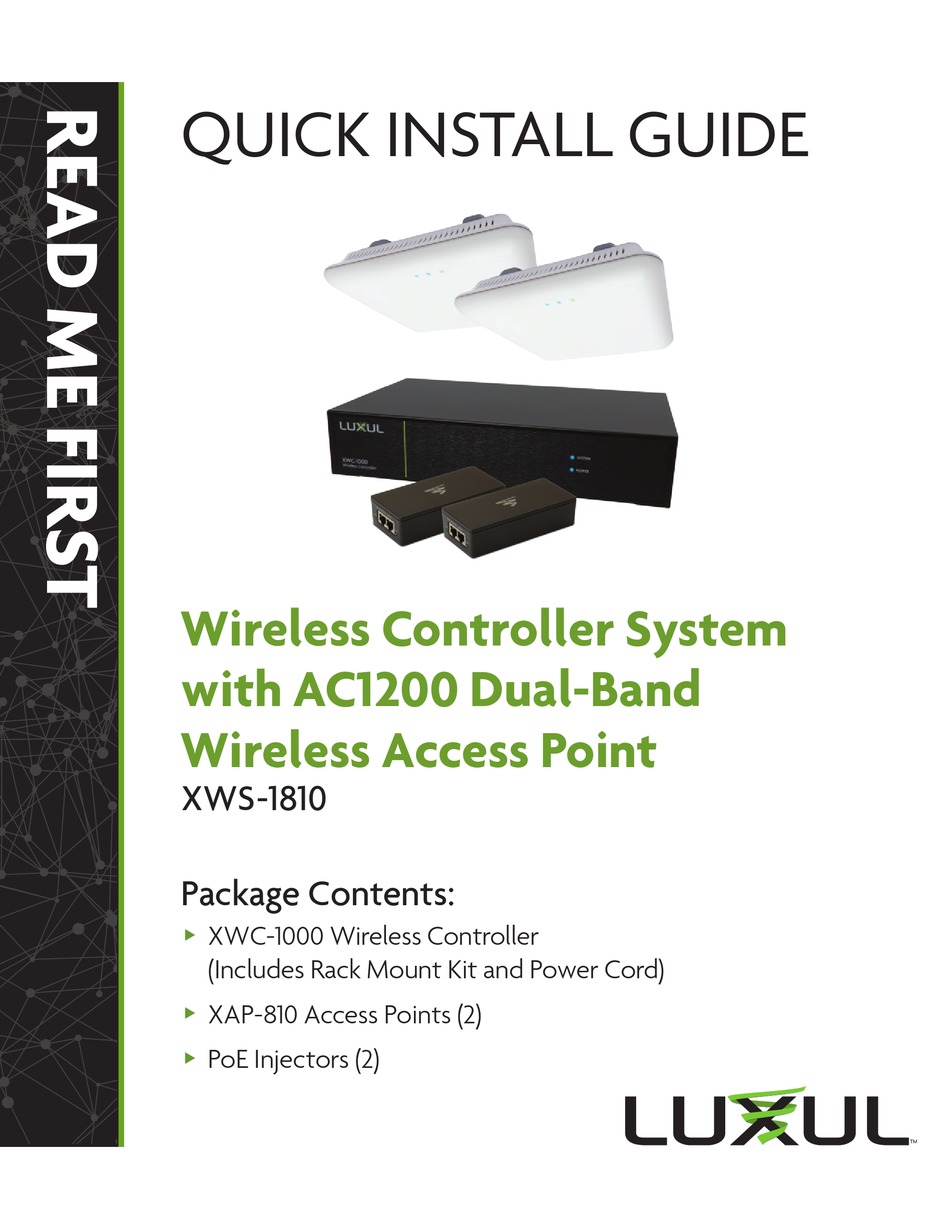

- Page 1 QUICK INSTALL GUIDE Wireless Controller System with AC1200 Dual-Band Wireless Access Point XWS-1810 Package Contents: XWC-1000 Wireless Controller „ (Includes Rack Mount Kit and Power Cord) XAP-810 Access Points (2) „ PoE Injectors (2) „...
- Page 2 BEFORE YOU BEGIN INSTALLATION Access Point Firmware: If you are using APs other than those included in this kit, ensure that firmware is v5 or newer. Visit the AP Firmware upgrade luxul.com/ap-upgrade page at details. Controller Setup Sequence: Be sure to set up the XWC-1000 Wireless Controller BEFORE powering up the APs.
- Page 3 APs. Note: Visit luxul.com/ap-placement for more detail on how to select and optimize AP placement. Note: Consider using Ekahau HeatMapper to assist with this process, available from www.ekahau.com. Luxul also offers an informative “How-To” video on HeatMapper at luxul. com/how-to-videos.
- Page 4 Getting Connected. Note: Be sure a DHCP server is present on the network and that all Luxul APs and the XWC-1000 Wireless Controller will share the same subnet. If your network doesn’t use a 192.168.0.X IP address scheme, you will need...
-
Page 5: Getting Connected
APs on the same network. You may add or remove APs to or from the managed profile at any time. Smart Tip: For more information on setup and configuration best practices, visit luxul.com/smart-tips. - Page 6 Hardware Operation - Wireless Controller Selecting front-panel LED color Use the switch on the rear panel of the XWC-1000 Wireless Controller to switch the Power and System LEDs on the front panel between green and blue to best match the equipment in the rack where the Wireless Controller is sharing space.
- Page 7 Hardware Operation - Wireless Access Points LED Indicators If the green power LED is ON, the XAP-810 is working. If the Power LED is OFF, the AP is not receiving power or the LED has been turned off in the AP’s web interface. If the power LED is blinking, the XAP-810 is booting.
- Page 8 Luxul product. © Copyright 2017 Luxul. All rights reserved. The name Luxul, the Luxul logo, the Luxul logo mark and Simply Connected are all trademarks and or registered trademarks of Luxul Wireless, Inc. All other trademarks and registered trademarks are property of their respective holders.
