- Page 1 ATC1006A 8x25 Multifunctional Laser Range and Angle Finder Monocular Operation Manual...
- Page 2 1. Introduction Multifunctional laser range and angle finder monocular is a portable optoelectronic device integrated with functions of a laser range finder, an angle finder and a monocular. a) It helps you observe objects with great clearness. In addition, it can measure the distance of a stationary or slowly moving object within a certain range.

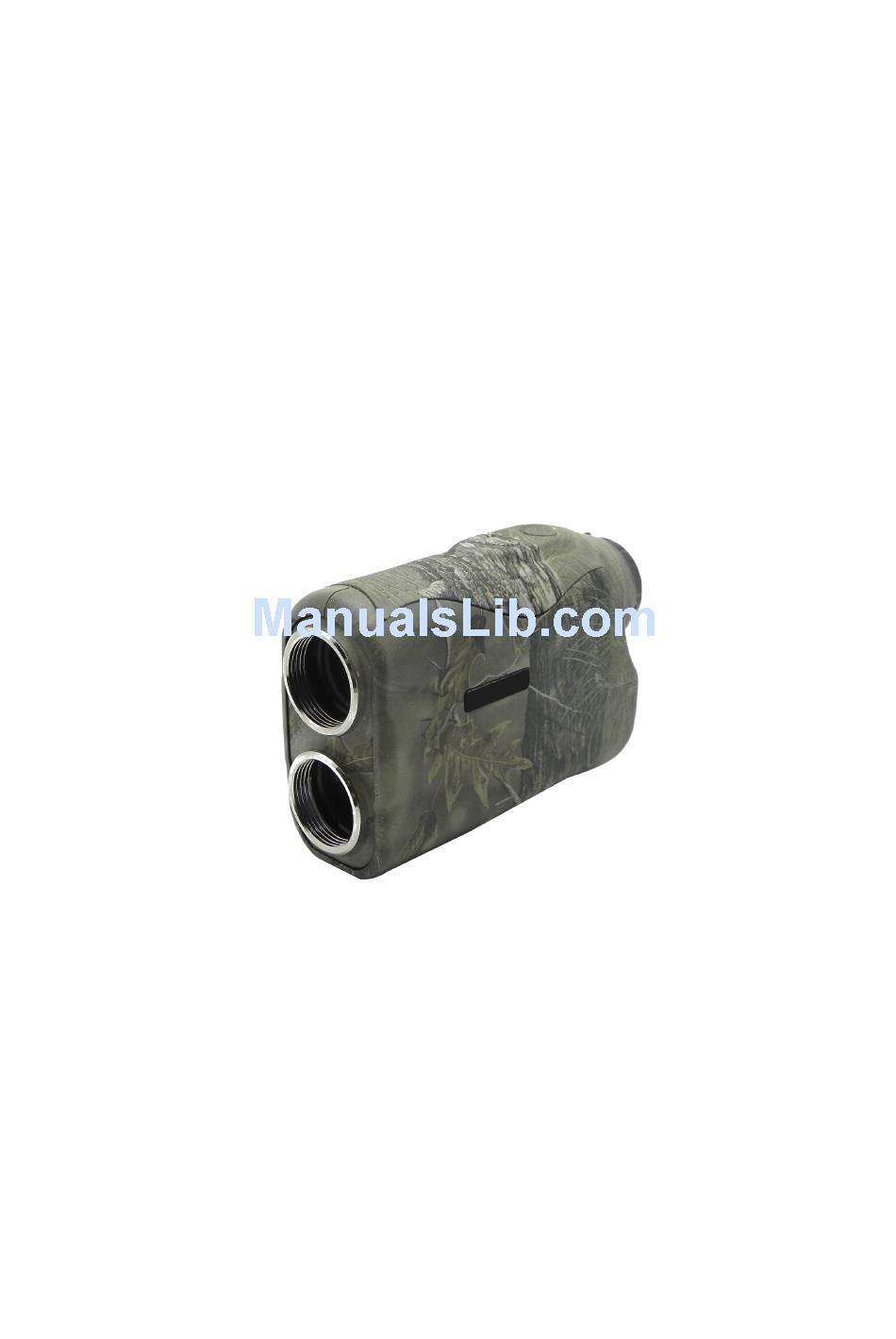

- Page 3 Figure 1 Appearance of Multifunctional Laser Range and Angle Finder Monocular 1. Laser Emitting Lens/Telescope Lens 2. Laser Receiving Lens 3. Mode Button 4. Power Button 5. Adjustable Eyepiece 6. Battery House 3. Built-in LCD Display Figure 2 LCD Indications 1) “...
- Page 4 2) “ ” — Low battery indication; 3) “ ”— Angle indication; 4) “ ” — Aiming indication, used for aiming the center of a target; 5) “ ”— Laser transmission indication; 6) “ ”— Sight-of-distance, or “----” when measurement fails; 7) “MY”—Distance unit indications, M=Meter and Y=Yard;...
- Page 5 Diopter Adjust Range ±4 Net Weight 260g Battery Lithium CR2/3V Low Battery Indicator Dimensions 120x79x42mm 5. Operation Instructions 1) The device has two buttons: “Power” button ( ) and “Mode” button. Press “ ”button for about 0.5 second to activate the built-in LCD display system.
- Page 6 Figure 3 Angle of Depression Figure 4 Angle of Elevation 5) Press and hold the “ ” button, scan function starts, and the LCD displays “SCAN”. The new data of sight-of-distances，horizontal distance, angles and height will continuously be displayed in the LCD.
- Page 7 LCD returns to initial state. 6) The device will automatically power off in 20 seconds without operation. 7) “ ” indicates that the power is insufficient and battery needs to change. 6. Caution 1) The measuring range of laser rangefinder could be influenced by the targets, the angle between the laser and targets and the weather.
- Page 8 well. 7) Keep the device at a dry, cool and airy place and avoid dust, direct sunshine and extreme change of temperature. 8) If the device meets a problem, send it to a professional department, never disassemble it by yourselves. 9) Never transmit the Laser towards sun or strong light，so as to prevent the photosensitive element from damages.
