Easlink UE100 User Manual

Cdma 2000 1x based evdo rev a data card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

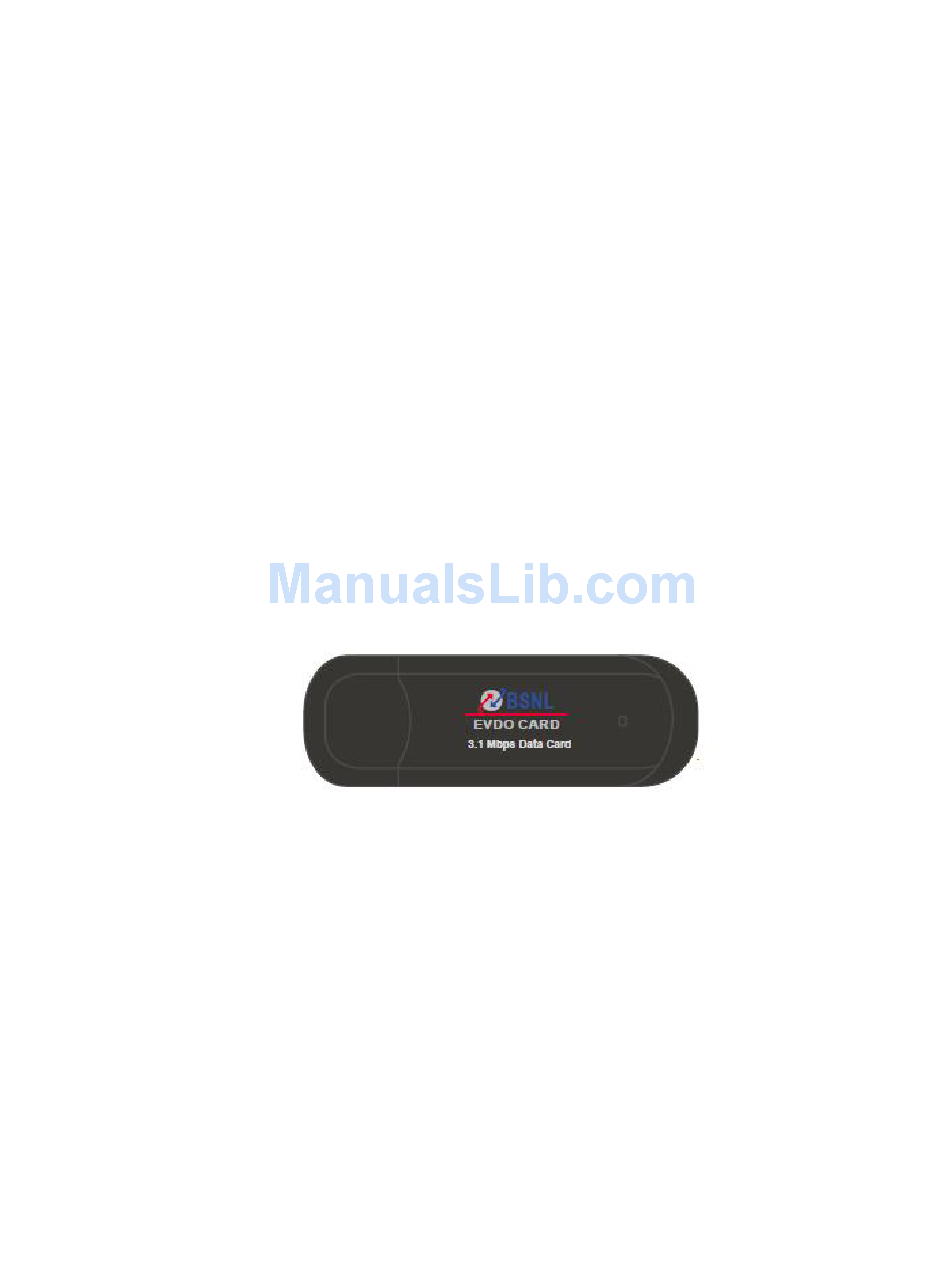

CDMA 2000 1x Based EVDO Rev A Data
Card
Make: Easlink Info Limited.
Model: UE100.
User Manual
Rev.1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UE100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Easlink UE100

  • Page 1 CDMA 2000 1x Based EVDO Rev A Data Card Make: Easlink Info Limited. Model: UE100. User Manual Rev.1.0...
  • Page 2 UE100 User Manual Rev.: Contents CONTENTS ................................. 2 INTRODUCTION ............................3 FEATURES..............................3 PRODUCT OVERVIEW..........................3 OVERVIEW ..............................3 R-UIM CARD INSTALLATION ........................4 MICRO SD CARD INSTALLATION ......................... 4 PACKING CONTENTS ..........................4 MINIMUM SYSTEM REQUIREMENTS ......................4 BSNL CONNECTION MANAGER INSTALLATION ................4 BASIC FUNCTIONS AND FEATURES OF THE BSNL CONNECTION MANAGER ......

  • Page 3: Introduction

    UE100 User Manual Rev.: 1 Introduction UE100 is a CDMA EVDO Rev.A Modem. It is compatible with all latest Windows Operating Systems that makes the Modem perfect solution for users. It also supports Linux OS (ubuntu) and MAC OS. 2 Features ...

  • Page 4: R-Uim Card Installation

    UE100 User Manual Rev.: R-UIM Card Installation: Micro SD Card Installation: Packing Content:  CDMA EVDO Rev.A Dongle  User Manual Minimum System Requirements:  Windows XP, Windows Vista, Windows 7, Windows 2000  Standard USB 2.0 interface  Screen Resolution: 800 by 600 pixels 4 BSNL Connection Manager Installation: Once the RUIM card is inserted, the BSNL Connection Manager can be installed.

  • Page 5: Basic Functions And Features Of The Bsnl Connection Manager

    UE100 User Manual Rev.: On completion of drivers’ installation, the following message will appear on your screen. Select “Finish” to complete the drivers installation. On finishing the installation, “BSNL Connection Manager” will automatically pop up. Wait till “Device Ready” message appears in BSNL Connection Manager.
  • Page 6 UE100 User Manual Rev.: 2. Select <Edit> to make the changes in current profile or Select <New> to create a new Profile. 3. Enter “User Name” and “Password” provided by BSNL. Access Number is “#777”. 4. After you finish the entry of Access Number, User name and Password, Select  Save  Apply to make the setting apply for your data card.

  • Page 7: C Ontact

    UE100 User Manual Rev.: Apart from the above, there is also LED indication for Network Status. LED indication for different network status is as follows.  RED LED Indication with no signal bars indicates “No Network” / “ No Service”.

  • Page 8: M Essage

    UE100 User Manual Rev.:  To Edit the contact details, Select a contact name and press <Edit> to modify Name and Number.  To Delete a contact, Select the contact and press <Delete>. A window will pop up to confirm the Delete action.
  • Page 9 UE100 User Manual Rev.: Press <Send> to send the message as shown below. 2). Select “Inbox” to view the messages received. one message in inbox, Press “Reply” to reply the message or “Forward” to forward the message to others. 3). Press <Delete> will delete message you select; Confirmation window will pop up to confirm the message deletion. .

  • Page 10: H Istory

    UE100 User Manual Rev.: 7. History Click on <History> icon to check data usage history. Select <Delete> to delete the history details one by one or select <Clear> to delete/clear all the history. NOTE: As voice is not applicable, “Call History” details are not required.
  • Page 11 UE100 User Manual Rev.: 3). Press <Connection Setting>, to select authentication type. User can select “Support CHAP” or “Support PAP”. Then Press <Apply> to save the settings. 4). User can manage the PIN management using the following option. Default “Pin Lock” is Disabled.
  • Page 12 UE100 User Manual Rev.: 9. How to receive a message: When a new message is received, the following pop up message appears on the screen. Window consists of Message content, Sender Number and Date & time of receipt. NOTE: ...

  • Page 13: Uninstalling The Software

    UE100 User Manual Rev.: Uninstalling the software Close BSNL Connection Manager, go to Start  Programs  BSNL Connection Manager, Click uninstall, and the software will be uninstalled. 2. You can also uninstall the BSNL Connection Manager as follows: Go to Control Panel  Add or Remove Programs, find BSNL Connection Manager and click Remove to uninstall the program.
