Summary of Contents for Roark Tools XTR Series

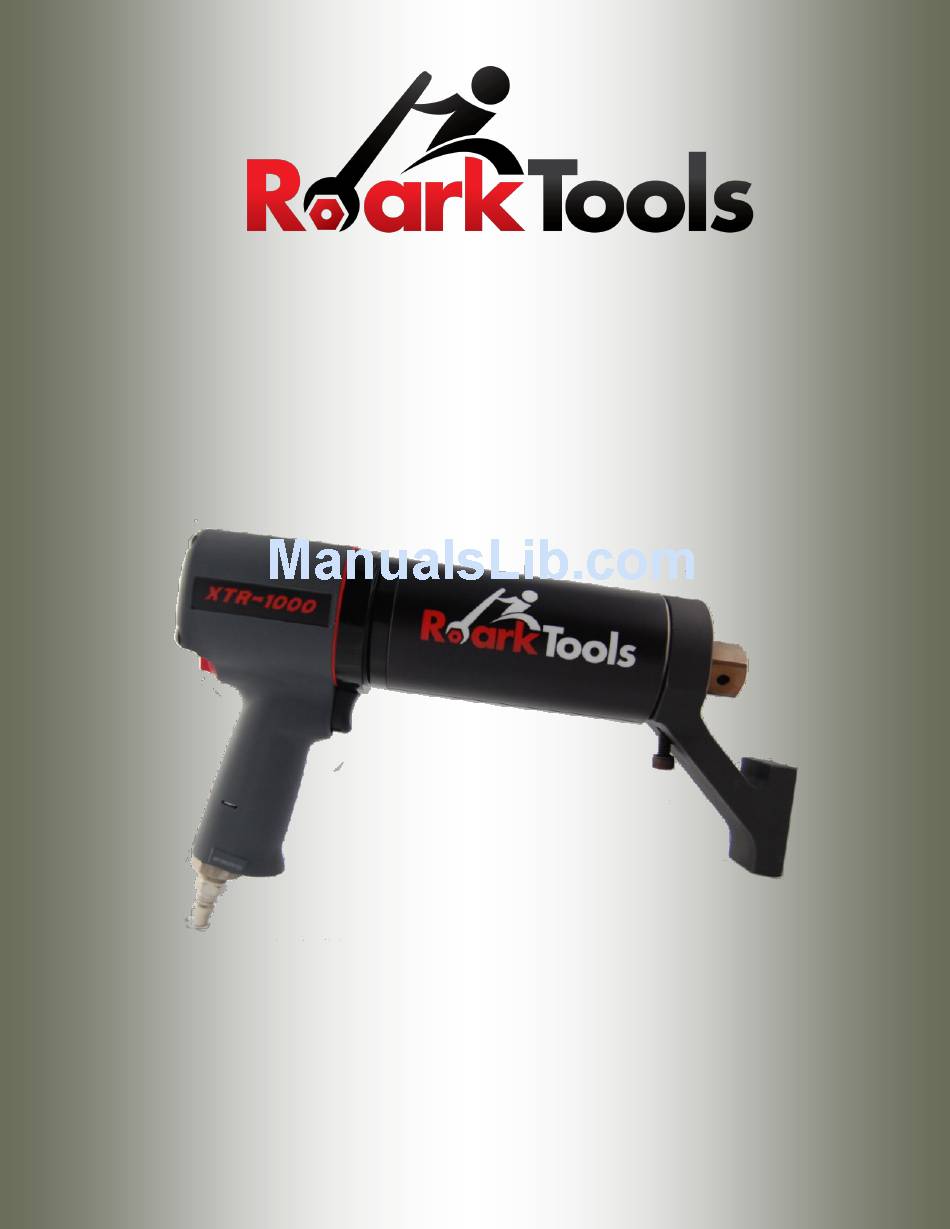

- Page 1 XTR SERIES PNEUMATIC WRENCH OPERATION AND MAINTENANCE INSTRUCTIONS...
- Page 2 An airflow of 40 SCFM(1.13 cubic metre/minute) guarantees optimum performance even within a non-protected working The XTR Series Pneumatic Torque Wrench provides torque settings of up to 5,000 FtLbs. clockwise and counter clockwise rotation, random positioning of the tool due to its free joint execution.
- Page 3 Operation of the Equipment in Accordance with Specified Use Depending on the working environment and how the XTR Series Pneumatic Torque Wrench is used, local health and safety regulations may require you protective gear (i.e. Ear Protection, Safety Shoes, Hard Hat, Gloves, Coveralls, etc.) In case external forces are exerted on the equipment, non-compliance with these regulations may result in injury.
- Page 4 9. Always turn off the air supply, bleed the air pressure and disconnect the air supply hose before installing, removing or adjusting any accesso- ry on this tool, or before performing any maintenance on this tool or any accessory. 10. Do not lubricate tools with flammable or volatile liquids such as kerosene, diesel or jet fuel. Use only Roark Tools recommended lubri- cants.
- Page 5 PLACING THE TOOL IN SERVICE 1. Must ensure air line is not connected to tool before following the following steps. 2. Ensure the reaction arm is properly attached and secured to splined section on the torque tool. 3. Select your desired square drive size and bolt/nut AF size impact socket or hex-drive socket for use. 4.
- Page 6 3. Set the air pressure the same as with tightening. Notice After extended use of the XTR Series Torque Wrench, Air Pressure Setting should be rechecked and may require minor adjustment. This is usually caused by variations in your air supply unit providing your airflow to F/R/L Unit or due to weather conditions.
-
Page 7: Operating Procedures
Unauthorized manipulation of air motor, valves, & F/R/L Unit or tampering with either will result in loss of warranty! Also for the life of your Roark Tools XTR Series Torque Wrench air supply should be clean and free of particles, water and other remains. Pollution of hose couplings or aggressive substances reaching air motor via the supply hose may cause damage to air motor vanes. - Page 8 7. Continue the process for tightening and loosening for each fastener you require. 8. If torque requirements require your application to go in torque increments, then set the XTR Series Torque Wrench to your first Torque Requirement. Tighten fastener as per your required tightening bolt sequence. Then reset for next setting on F/R/L unit by adjusting regulating knob.
- Page 9 3. Disconnect Supply Hose to F/R/L and Disconnect air hose at XTR Series Motor. 4. If the XTR Series Torque Wrench is not to be used for an extended period of time, spray pneumatic lubricating oil into XTR Series Fitting. Reconnect air hose and supply of R/R/L Unit air Inlet Fitting.
