Version 1.0 Updated: 07/25/2017

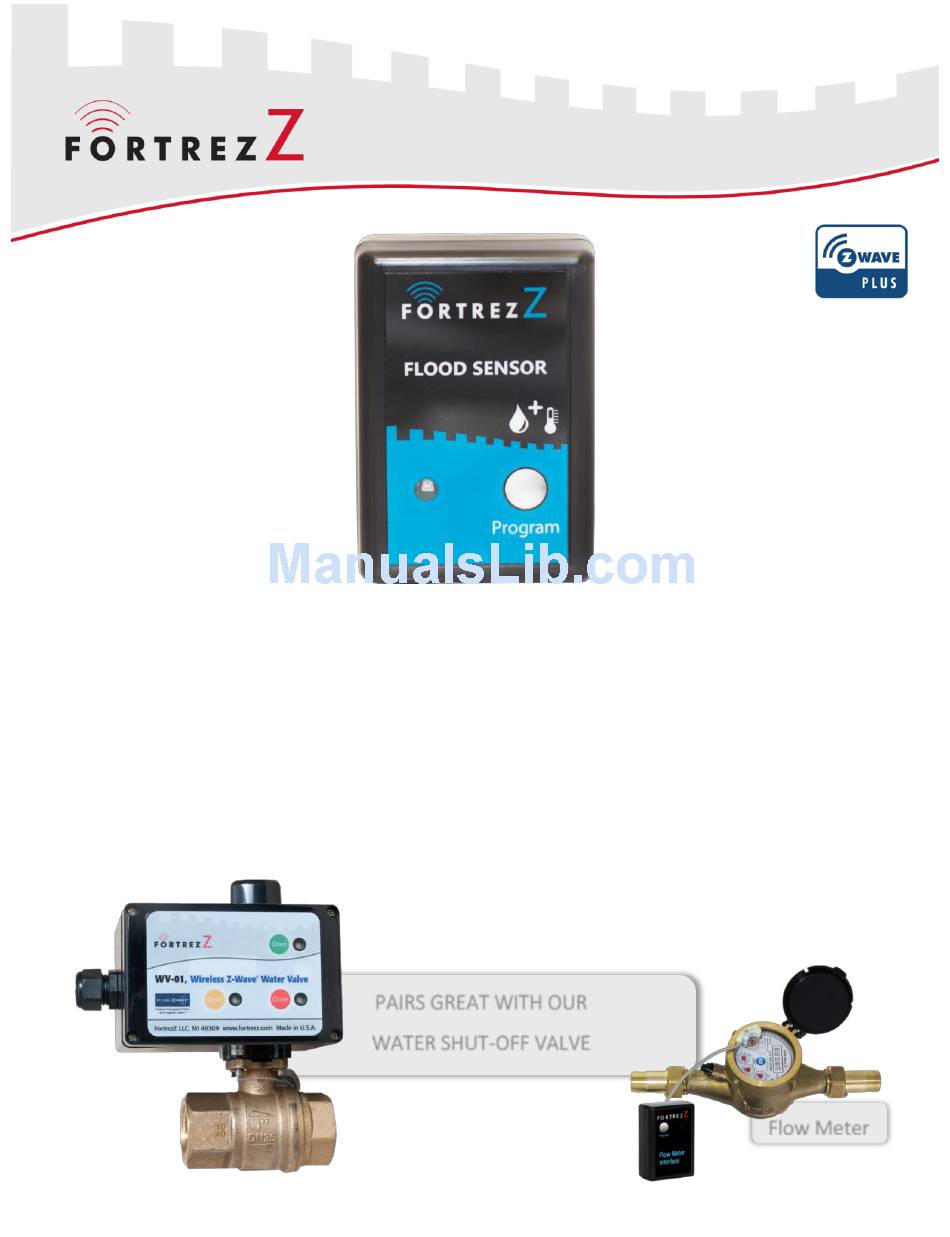

FLOOD & TEMPERATURE SENSOR
FTS05
USER MANUAL
Congratulations on your purchase! The FTS05 sensor is a Z-WavePlus
Security-enabled device that detects water leaks and
TM
measures temperature. In case of leak or high/low temperature conditions it will send alerts on your network. The FTS05 is
compatible with other Z-Wave
TM
and Z-WavePlus
TM
certified products. The FTS05 sensor comes in two part numbers for each
geographic region (where 'yy' below indicates, for example, US or EU):
•
FTS05US and FTS05EU
Pair together with our Automatic Water Shut-off Valve & Flow Meter for a complete Damage Prevention system!
PAIRS GREAT WITH OUR
WATER SHUT-OFF VALVE
Flow Meter
Advertisement
Table of Contents
Related Manuals for FortrezZ FTS05US
Summary of Contents for FortrezZ FTS05US
-
Page 1: User Manual
The FTS05 sensor comes in two part numbers for each geographic region (where ‘yy’ below indicates, for example, US or EU): • FTS05US and FTS05EU Pair together with our Automatic Water Shut-off Valve & Flow Meter for a complete Damage Prevention system! PAIRS GREAT WITH OUR... -
Page 2: Warnings And Precautions
WARNINGS AND PRECAUTIONS • Do not store highly flammable items such as oily rags or other combustibles near your FTS05. • Do not apply electrical power to the unit unless the unit is fully assembled. • Sensor functionality is based on wireless (RF) transmissions. Any wireless transmission can be subject to RF interference or loss of communication. - Page 3 LOCATIONS TO INSTALL SENSOR The sensor is suitable for use in normally dry, interior locations only. Do not install outside or in areas that become wet normally or have high humidity. Avoid placing the unit close to a metal frame, or other metal appliances that may affect its’ range.
- Page 4 INCLUDING THE SENSOR IN YOUR Z-WAVE NETWORK 1. Install the two AA batteries and secure the bottom cover using the 4 supplied screws. 2. Walk sensor to its installation location. Make sure it is within 25 feet of the Z-Wave hub or another Z-Wave signal repeating device.
- Page 5 DURING AN ALARM Water Alarm If water is detected at the monitoring location or an over/under-temperature condition is detected, the unit will send an alert message(s) to the Z-Wave network. The type of alert message depends on how the sensor is configured. Clearing an Alarm Drying the sensor contacts will clear the Water Alarm.
- Page 6 ADVANCED CONFIGURATIONS FOR YOUR SENSOR The high and low temperature set points in the sensor can be configured. The low temperature set point must always be set at least two degrees below the high temperature set point. The low temperature set point cannot be set less than –10 degrees C and the high temperature set point cannot be set greater than 70 degrees C.
- Page 7 TECHNICAL APPENDIX Z-Wave INFORMATION Node Information Frame (NIF): Always listening flag set, Optional functionality flag set Manufacturer ID 0X0084 Product ID 0x0073 (FTS05, US), 0x00A3 (FTS05P, US) Device Type / Supported Command Classes Generic Device Type: GENERIC_TYPE_SENSOR_NOTIFICATION Specific Device Type: SPECIFIC_TYPE_NOTIFICATION_SENSOR COMMAND_CLASS_ZWAVEPLUS_INFO_V2 COMMAND_CLASS_VERSION_V2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2...
-
Page 8: Troubleshooting
MIMO, or the FTS05 does not perform as expected we encourage you to return the FTS05 to your DISTRIBUTOR for an exchange or for a full refund within 30 days of purchase. Or, you can return the FTS05 to FORTREZZ, LLC with an RGA number.
