Summary of Contents for XLAYER BTS11

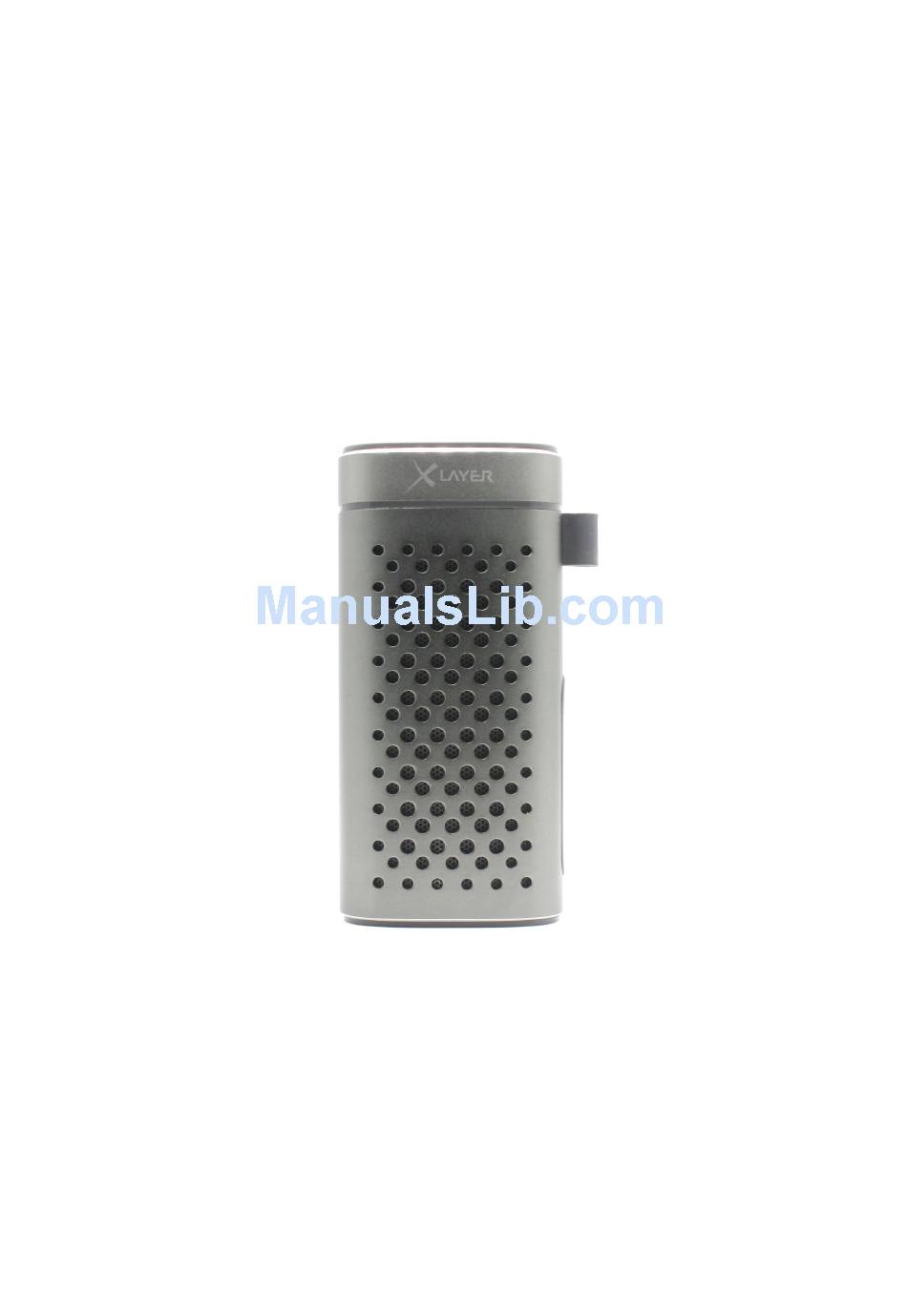

- Page 1 User’s Manual Bluetooth Speaker BTS11...
- Page 2 A. Important Don’ts • Do not place naked flames, such as lighted candles on or near the product. • Do not place objects filled with liquids, such as vases on or near the product. • Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.
- Page 3 B. Outlook and Controls...
- Page 4 Item Control Silicon Cover (for protect I/O port) Silicon Hanger (for lanyard) Speaker Bass Radiator Battery Indicators (LED x 4 for charge status or battery level) AUX Input (Under Silicon Cover) USB Micro Socket (Under Silicon Cover) USB Type-A Socket (Under Silicon Cover) Button (Power on and off) Button (Volume, Previous Song) MIC Hole (For Hand-free)
- Page 5 (refer to your mobile device’s manual when necessary) 2. Your mobile device should show “BTS11” in Bluetooth Devices list, and then select it for pairing. Waiting for some seconds and you will...
- Page 6 Bluetooth devices, you may need to input “0000” as pairing password) 3. If pairing is successful, a beep sound will heard and the “Mode Indicator (13)” will slow blinking each 4 ~ 5 seconds once. 4. Now, you can start to music play from the mobile device by it music player program.
- Page 7 g. Wireless Music Playing Control Function: (on Speaker) 1. In playing music, press “ / (16)” button to pause the music. To resume the music press it again. 2. Press and hold the “ 12)” button to increases the volume level. 3.
- Page 8 2. The Speaker will switch to “AUX In” mode automatically from wireless, and the “Mode Indicator (13)” will switch to red from blinking blue. 3. Now the AUX In function is ready, start to music play from your external device by it control and or program, for example, Play, Stop, volume control…etc.
- Page 9 I. Specification Dimension 63.2 mm (L) x 36.3 mm (W) x 132 mm (H) (not included lanyard holder) Weight 316g Specification BT V2.1 + EDR Wireless Supported Profile A2DP, AVRCP, HSP Connection Distance In 10 meters (open area) Lithium 3.7V, 4000mAh Built-In Battery Playing Time: 10 ~ 12 hours (at 75% of volume setting)
- Page 10 Caution: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
