Summary of Contents for SmartBridges airPoint XO2

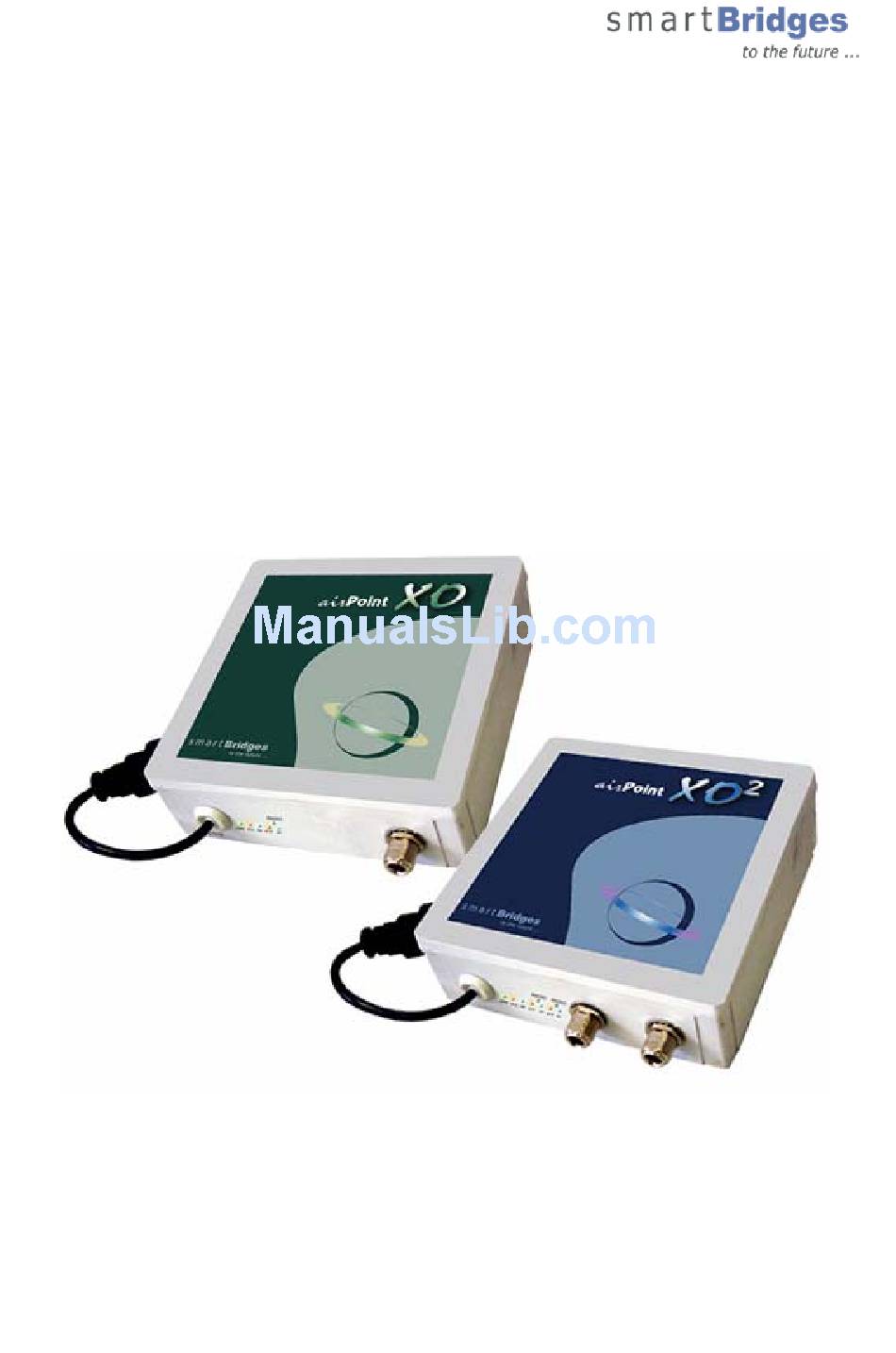

- Page 1 airPoint XO Series ™ Wireless Access Points Quick Install Guide...
- Page 2 N male connectors at both ends. • Set the power output of airPoint XO / airPoint XO2 using the procedure shown in "Configuring airPoint XO" / “ Configuring airPoint XO2 “. The RF output power can be adjusted to a maximum of +17dBm.
- Page 3 Table of Contents 1. airPoint XO™ Series..............4 2. Package Contents ..............6 3. Hardware Installation ..............6 4. Installing the airPoint XO™ Series ..........8 4.1 Pole Mounting..............9 4.2 Mounting the Antenna............10 4.3 Cabling................11 4.4 LEDs Status............... 12 4.5 Protection................
-
Page 4: Airpoint Xo™ Series
XO™ Series The smartBridges airPoint XO™ products are LongRange™, IEEE 802.11b compliant Access Point devices for deployment of Wireless Wide Area Networks (WWANs). The airPoint XO™ products deal with four key areas that are of vital importance in any WWAN network: Subscriber Bandwidth Management, Advanced Networking Capabilities, Remote Infrastructure Management and, Carrier-Class Reliability. - Page 5 airBridge series (Client devices) and the airPoint XO™ series (access points) wirelessly. Application Diagram for airPoint XO™ Access Point with Bandwidth Management airPoint Client Client Client Bandwidth limit of 128 kbps Bandwidth limit of Bandwidth limit of 1 Mbps 512 kbps Bandwidth limit of 512 kbps Client...
-
Page 6: Package Contents
Application Diagram for airPoint XO ™ in Full Repeater mode airPoint airPoint XO Client Backhaul Connectivity Client Client Internet Backbone Package Contents airPoint XO™ or XO ™ Unit Power over Ethernet (PoE) Outdoor™, with 48 V power adapter and Wall Plate Unit (standard accessories provided with airPoint XO™ series) Grounding Tag Pole Mounting Kit : U Bracket, Nuts, Washers Wall Mounting Kit : Wall plugs , Screws... -
Page 7: Hardware Installation
Make sure that the AC supply has a proper Ground available to the surge suppressor, spike protector or UPS. • Use only smartBridges Power over Ethernet Outdoor™ with a 48V AC adaptor. • The specification for smartBridges AC adaptor :... -
Page 8: Installing The Airpoint Xo™ Series
• Verify that the PWR , ETH and RF LEDs are ON . • airPoint XO™ with its Factory Default Settings will serve the nearby wireless clients Installing the airPoint XO™ Series Grounding : • Crimp an AWG # 10 grounding wire to the Tag provided. •... -
Page 9: Pole Mounting
Pole Mounting airPoint XO Series Page 9 of 24... -
Page 10: Mounting The Antenna
Select the most appropriate place on the roof which will provide a direct view to the Access Point. Secure a 1.5 inch steel pipe vertically and insure that it cannot come off with wind force. Attach the bracket of the airPoint XO™... -
Page 11: Cabling
Seal the RF connectors both at the antenna and the SB device side from the natural elements using weatherproofing tape provided. Do not skimp or skip on this. Choose the antenna of the correct gain and radiating angle to meet the requirements for the system setup. -
Page 12: Leds Status
Suitable cable ties should be used to hold the cable rigidly along its path. Make sure that the cable does not pull or cause strain on the weather proof connector on the airPoint XO™ devices. Do not make sharp bends. Provide bending radius of minimum 2 inches (50mm). -
Page 13: Service And Support
Configuration of airPoint XO™ series. If, however, you still have problems or need further support, you can visit our website at: http://www.smartbridges.com or send your queries to support@smartbridges.com Please register airPoint XO on our product registration page. airPoint XO Series... -
Page 14: Frequently Asked Questions
Frequently Asked Questions How does the airPoint XO™ differs from some other available products? The airPoint XO™ is designed to provide Bandwidth Management function from the Access Point box, which houses the radio, rather than the commonly used method of managing bandwidth from the NOC. - Page 15 Is bandwidth throttling based on radius profiles possible? Dynamic RADIUS based control is supported for large networks. Bandwidth control can be implemented using static IP lists for small networks. In airPoint XO ™, does each radio have independent WEP key, ESSID, and channel. Is it possible to set it differently? Yes.
-
Page 16: Appendix A – Specifications
Appendix A – Specifications Model No SB5100 (airPoint XO ™) ; SB5200 (airPoint XO™) Network Standard IEEE 802.11b Data Rates Supported Can be adjusted in steps of 64Kbps, up to max throughput Frequency Band 2400 to 2483.5Mhz Wireless Medium Direct Sequence Spread Spectrum (DSSS) Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA) Modulation DSSS with CCK / DQPSK / DBPSK... - Page 17 Operating Temperature -40 deg C to +60 deg C (-40 F to +140 F) Relative Humidity Operating: 0 to 70% (non-condensing) Storage: 10 to 90% (non-condensation) Mounting Pole or wall mount via 2 pc U-Bolts & clamps (supplied) Power Consumption 400 mA @ 48V (airPoint XO ™);...
-
Page 18: Appendix B –Warranty, License And Copyrights
Please visit customer support area of smartBridges web site for making warranty claims. smartBridges may elect to exchange the product or refund the full purchase price of the unit. Except as expressly provided above, smartBridges makes no warranties or conditions,... -
Page 19: Appendix C -Declaration Of Conformity
Records maintained by smartBridges continue to reflect that the units being produced under this Declaration of Conformity, within the variation that can be expected due to quantity production and tested on a statistical basis, continue to comply with the applicable technical standards. - Page 20 édicté par le Ministère des Commu-nications du Canada. EUROPEAN COMMUNITY CE MARK, DECLARATION OF CONFORMITY smartBridges Pte. Ltd. declares that the equipment described in this document is in conformance with the requirements of the European Council Directives - 73/23/EEC, Low Voltage Directive with Amendment 93/68/EEC and 89/336/EEC, EMC Directive with Amendments 92/31/EEC and 93/68/EEC.
- Page 21 Notes: airPoint XO Series Page 21 of 24...
- Page 22 Notes: airPoint XO Series Page 22 of 24...
- Page 23 Notes: airPoint XO Series Page 23 of 24...
- Page 24 airPoint XO Series Page 24 of 24...
