Thank you for opening the envelope and reading this documentation. Your new
RHS780 was carefully assembled and will begin generating profits for you in just a
few minutes.
1. Please follow these simple instructions to ensure your new machine survived
any rough handling it may have experienced during transport.
2. Immediately report any visible damage to the unit. Save the shipping carton for
inspection by a claims adjuster. Call RTI Technologies at 800-468-2321 (ext
259) for instructions.
3. Cut and remove all hold-down straps including the one underneath the front of
the unit.
4. Remove protective plastic cover.
5. Carefully tip unit and remove cardboard blocks from
underneath.
6. GENTLY ease the unit off the pallet.
7. Unscrew knob from top and store on rear of unit. This
knob restrains the internal cylinder during shipping and
should be used during any future shipping. A hole plug is
provided to insert in the hole on the top.

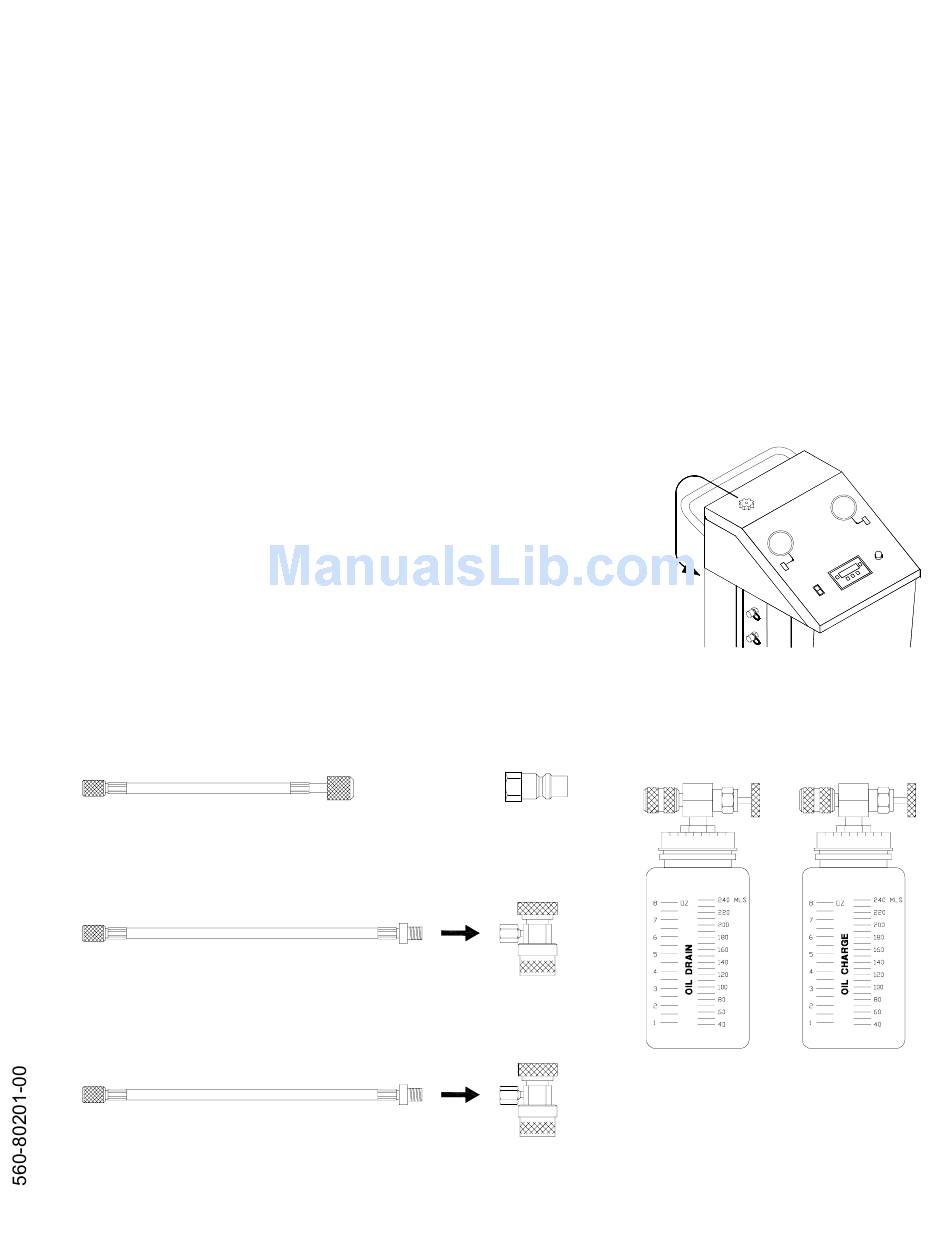

8. Refer to the illustration below and verify that all accessories were received.
Yellow Hose (30 inch)
360-80464-03
Red Hose (11 feet)
028-80035-02
Blue Hose (11 feet)
028-80036-02
Unpacking - RHS780
Anti-blowback
Valve
FSC to ACME
Adapter
023-80147-00
Red - High Side
Field Service Coupler
023-80095-00
Oil Drain Bottle
026-80207-00
Blue - Low Side
Field Service Coupler
023-80096-00
Knob
Oil Charge Bottle
026-80208-00
Page 1 of 5
