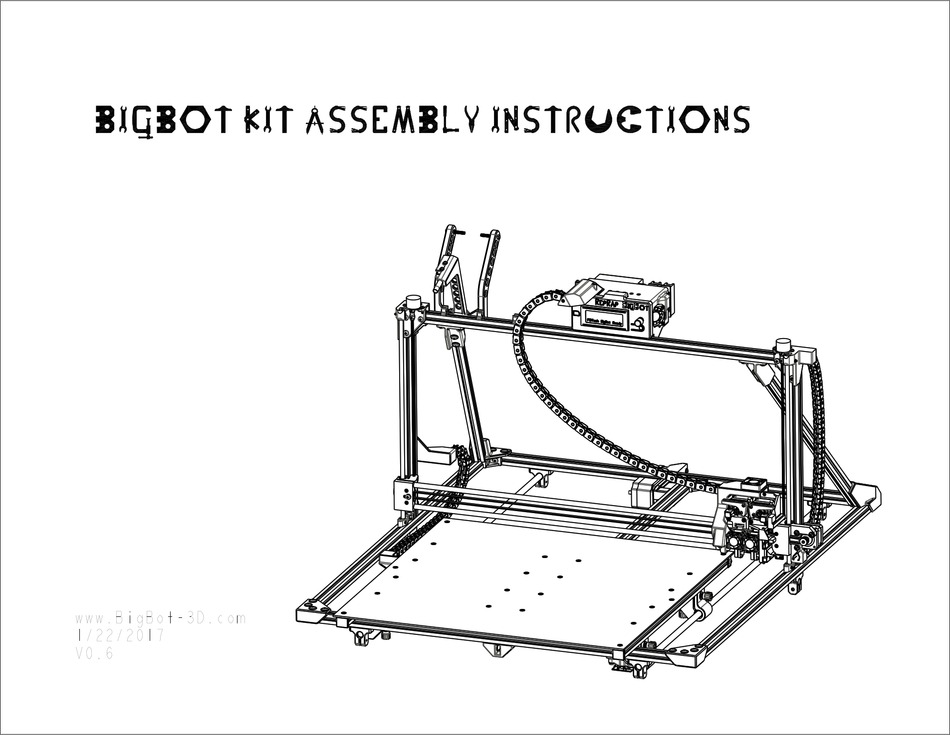

BIGBOT KIT ASSEMBLY INSTRUCTIONS
www.BigBot-3D.com
1/22/2017
V0.6

Advertisement

loading
Need help?

Need help?

Do you have a question about the BigBot and is the answer not in the manual?

Questions and answers

Summary of Contents for PD Technology BigBot

  • Page 1 BIGBOT KIT ASSEMBLY INSTRUCTIONS www.BigBot-3D.com 1/22/2017 V0.6...
  • Page 2 THANKS FOR PURCHASING A PDTECH BIGBOT KIT! WE SINCERELY HOPE YOU ENJOY YOUR PRINTER AND THE EVER-GROWING WORLD OF 3D PRINTING! PART ORGANIZATION: YOUR KIT INCLUDES SEVERAL BOXES AND/OR BAGS OF PARTS. THESE BOXES AND BAGS ARE LABELED AND SORTED IN A MANNER WHICH HOPEFULLY MAKES ASSEMBLY EASY.
  • Page 3 INDEX PAGE 1: TITLE PAGE 2: PREFACE PAGE 3: INDEX PAGE 4: INDEX (CONTINUED) PAGE 5: ASSEMBLE BED ADJUSTING THUMB NUT: 4 TIMES PAGE 6: ASSEMBLE HEIGHT LOCKING THUMB NUT: 4 TIMES PAGE 7: ASSEMBLE 90 CORNERS TO Y BEARING MOUNTS: 4 TIMES PAGE 8: ASSEMBLE SCREWS, WASHERS, AND TSLOT NUTS TO BED PAGE 9:...
  • Page 4 INDEX (CONTINUED) PAGE 34: CLAMP X RAILS AND ASM IDLER PAGE 35: ASSEMBLE X RAILS TO MOTOR SIDE PAGE 36: ASM X LIMIT SWITCH PAGE 37: INSERT Z THREADED ROD AND NUT PAGE 38: ASSEMBLE CARRIAGE BACK AND CLIP X AXIS BELT PAGE 39: DUAL EXTRUDER LIFT (OPTIONAL, WITH DUAL EXTRUDER) PAGE 40:...
  • Page 5 1.1 ASSEMBLE BED ADJUSTING THUMB NUT: 4 TIMES PART LOCATION [1] LONG THUMB WHEEL PLASTIC PARTS BAG [2] SHORT THUMB WHEEL PLASTIC PARTS BAG [3] SCREW BAG 33 [4] LOCK WASHER BAG 10 [5] NUT BAG 4 USE SHORTER M5 SCREW TO SHOULDER WHEEL AGAINST AND TIGHTEN NUT INTO SHORT THUMB WHEEL...
  • Page 6 1.2 ASSEMBLE HEIGHT LOCKING THUMB NUT: 4 TIMES PART LOCATION [1] LONG THUMB WHEEL PLASTIC PARTS BAG [2] SCREW BAG 32 [3] LOCK WASHER BAG 10 [4] NUT BAG 4...
  • Page 7 1.3 ASSEMBLE 90 CORNERS TO Y BEARING MOUNTS: 4 TIMES PART LOCATION [1] ADJUSTING THUMB NUT ASM ASM 1.1 [2] LOCKING THUMB NUT ASM ASM 1.2 [3] Y BEARING MOUNT, L PLASTIC PARTS BAG [4] Y BEARING MOUNT, R PLASTIC PARTS BAG [5] CORNER BRACKET HARDWARE BOX [6] WASHER, 10MM OD...
  • Page 8 1.4 ASSEMBLE SCREWS, WASHERS, AND TSLOT NUTS TO BED PART LOCATION [1] ALUMINUM BED ASM PACKED IN BOX 600x600 [2] SCREWS: 600x300 BAG 52 UNPACK ALUMINUM BED: 300x300 KEEP PROTECTIVE FILM ON 600x600 [3] WASHERS: 600x300 BAG 53 300x300 600x600 [4] T SLOT NUTS: 600x300 BAG 3...
  • Page 9 SLIDE FRAME INTO BUILD PLATFORM ASSEMBLE HEATERS TO BUILD PART LOCATION PLATFORM (MAY BE SUPPLIED PRE- ASSEMBLED). IF HEATERS ARE [1] ALUMINUM BED ASM APPLIED TO ALUMINUM BED, THIS 600x600: 555mm [21.85"] 2020 FRAME STEP IS COMPLETE [2] 600x300: 555mm [21.85"] 2020 FRAME WRAPPED IN BOX 300x300: 250mm [9.85"] 2020 FRAME ALIGN NUT INTO FRAME SLOT AND SLIDE LEFT...
  • Page 10 ASM Y BEARING MOUNT TO FRAME PART LOCATION [1] Y BEARING MOUNT ASM [2] TSLOT NUT BAG 3 [3] SCREW BAG 24 ORIENTATION OF THIS WALL (4 PLACES) IN RELATION TO FRONT OF BED IS IMPORTANT LOOSEN HEIGHT LOCK THUMB NUT TO TIGHTEN SCREW BED FRONT [2] IN RAIL...
  • Page 11 ASM SIDE FRAME INTO BUILD PLATFORM PART LOCATION 590mm [23.23"] 2020 FRAME [1] 285mm [11.23"] 2020 FRAME WRAPPED IN BOX 285mm [11.23"] 2020 FRAME...
  • Page 12 ASSEMBLE FRAME CROSS-MEMBERS: 600x600 ONLY PART LOCATION [1] 600x600: 330mm [13"] 2020 FRAME, DRILLED WRAPPED IN BOX 600x300: N/A 300x300: N/A [2] T SLOT NUT BAG 3 [3] SCREW BAG 29 [2] IN RAIL...
  • Page 13 1.10 MOUNT THERMISTOR TO BUILD PLATFORM PART LOCATION [1] THERMISTOR HEATED BED BAG [2] KAPTON TAPE HEATED BED BAG [2] TAPE THERMISTOR BEAD END TO CENTER OF BUILD PLATE BOTTOM WITH KAPTON TAPE RUN THERMISTER WIRE UNDER TAPE IN 3 PLACES MIN. ALUMINUM FRAME NOTE: FOR 300x300 PRINTER, PLACE THERMISTOR IN CENTER HOLE OF RED HEATER PCB.

  • Page 14: Plastic Parts Bag

    1.11 ASM Y BELT, CORNER PROTECTORS, AND Y CHAIN MOUNT PART LOCATION [1] Y BELT MOUNT PLASTIC PARTS BAG [2] Y BELT: 1.95M [76.75"] LONG HARDWARE BOX [3] TSLOT NUT BAG 3 [4] WASHER FOR BELT MOUNT BAG 8 [5] SCREW BAG 31 [6] Y CABLE CHAIN BOTTOM MOUNT PLASTIC PARTS BAG...
  • Page 15 2.1 ASM Y ROD MOUNT HARDWARE: 4 TIMES PART LOCATION [1] Y ROD MOUNT PLASTIC PARTS BAG [2] NUT BAG 1 LOOSLY ASSEMBLE ALL HARDWARE [3] T SLOT NUT BAG 3 [4] WASHER BAG 9 [5] SCREW BAG 26 [6] SCREW BAG 17...
  • Page 16 2.2 BUILD Y BELT IDLER/TENSIONER PART LOCATION [1] Y IDLER MOUNT PLASTIC PARTS BAG [2] WASHER BAG 9 [3] SCREW BAG 29 [4] SCREW BAG 25 [5] NUT BAG 4 [6] T SLOT NUT BAG 3 [7] M5 FLANGED BEARING HARDWARE BOX LOOSLY ASSEMBLE SCREWS TO NUTS...

  • Page 17: Plastic Parts Bag

    2.3 ASSEMBLE FRONT AND REAR FRAME MEMBERS PART LOCATION 600x600: 828mm [32.6"] 2020 FRAME [1] 600x300: 828mm [32.6"] 2020 FRAME WRAPPED IN BOX 300x300: 523mm [20.6"] 2020 FRAME [2] Y ROD MOUNT ASM [3] Y IDLER ASM [4] 90 CORNER HARDWARE BOX [10] [5] Y LIMIT SWITCH MOUNT...
  • Page 18 2.4 ASM LOWER Z BEARING ROD MOUNT: 2 TIMES PART LOCATION [1] Z BEARING ROD MOUNT PLASTIC PARTS BAG [2] SCREW BAG 26 [3] SCREW BAG 16 [4] WASHER BAG 7 [5] T SLOT NUT BAG 3 [6] NUT BAG 1 ASSEMBLE ALL PARTS LOOSLY...
  • Page 19 2.5 ASM SIDE FRAME MEMBERS PART LOCATION 600x600: 968mm [38.11"] 2020 FRAME WRAPPED IN [1] 600x300: 460mm [18.11"] 2020 FRAME 300x300: 460mm [18.11"] 2020 FRAME [2] 600x600 ONLY: Y ROD MOUNT PLASTIC PARTS (WITHOUT SCREWS) [3] Z ROD MOUNT ASM [4] T SLOT NUTS BAG 3 [5] SCREW...
  • Page 20 2.6a (600x600 ONLY): ASM Y MOTOR MOUNT TO FRAME SEE 2.6b FOR 600X300 AND 300X300 Y MOTOR MOUNT [11] [10] PART LOCATION LOOSE [1] 968mm [38.11"] 2020 FRAME WRAPPED IN BOX [2] Y MOTOR: NEMA 23 HARDWARE BOX [3] Y MOTOR MOUNT PLASTIC PARTS BAG [4] 90 METAL CORNER HARDWARE BOX...
  • Page 21 2.6b (600x300 AND 300x300): ASM Y MOTOR MOUNT TO FRAME PART LOCATION [1] Y MOTOR NEMA 17 17HS19-2004S1 HARDWARE BOX [2] Y MOTOR MOUNT PLASTIC PARTS BAG [3] PULLEY HARDWARE BOX [4] T SLOT NUTS BAG 3 [5] WASHER BAG 9 [6] SPACER BAG 12 [7] MOTOR MOUNT SCREW...
  • Page 22 2.7a (600x600 ONLY) ASM Y MOTOR FRAME TO MAIN FRAME PART LOCATION [1] Y MOTOR RAIL ASM [2] T SLOT NUTS BAG 3 [3] WASHER FOR Y MOTOR BRACKET BAG 9 [4] SCREW FOR Y MOTOR BRACKET BAG 25 [5] SCREW FOR 90 CORNERS BAG 24 DETAIL B DETAIL C...
  • Page 23 2.8 ASSEMBLE BED TO MAIN FRAME PART LOCATION [1] BED ASM 1.11 [2] FRAME ASM [3] Y BEARING ROD 12mmOD X 1M WRAPPED IN BOX STEP 1: THREAD BELT TRU IDLER BEARINGS AND PULL TAUGHT, THEN TIGHTEN SCREWS TIGHTEN M3 SCREWS 4 PLACES STEP 2: TENSION BELT AS TIGHT AS YOU CAN BY HAND...
  • Page 24 TIGHTEN Y BELT AND Y ROD MOUNTS. ALIGN BED ASM PART LOCATION BED AND FRAME ASM STEP 2: TIGHTEN ALL SCREWS AFTER BED IS ALIGNED TIGHTEN Y ROD MOUNT SCREWS WITH BED MOVED NEAREST TO 4.23 SCREWS BEING TIGHTENED [107.5 ] STEP 1: MEASURE BED DISTANCE TO FRONT RIGHT...
  • Page 25 ASM FRAME SUPPORTS PART LOCATION 600x600mm: 828mm [32.6"] 2020 FRAME [1] 600x300mm: 828mm [32.6"] 2020 FRAME WRAPPED IN BOX 300x300mm: 828mm [20.6"] 2020 FRAME 600x600mm: 517mm [20.35"] 2020 FRAME [2] 600x300mm: 413mm [16.26"] 2020 FRAME WRAPPED IN BOX 300x300mm: 413mm [16.26"] 2020 FRAME [3] BACK LEFT CORNER LOWER BRACKET PLASTIC PARTS BAG [4] BACK RIGHT CORNER LOWER BRACKET...
  • Page 26 3.2 ASM Z MOTOR MOUNTS: LEFT AND RIGHT PART LOCATION [1] Z MOTOR ELECTRONICS BOX [2] Z MOTOR MOUNT L PLASTIC PARTS BAG [3] Z MOTOR MOUNT R PLASTIC PARTS BAG [4] NUTS BAG 1 [5] MOTOR MOUNT WASHERS BAG 7 [6] MOTOR MOUNT SCREWS BAG 15 [7] Z UPPER RAIL SCREW...
  • Page 27 3.3 ASM GANTRY CORNERS PART LOCATION [1] GANTRY UPPER ASM [2] Z MOTOR MOUNT ASM, L [3] Z MOTOR MOUNT ASM, R [4] METAL 90 CORNER HARDWARE BOX [5] T SLOT NUTS BAG 3 [6] Z MOTOR MOUNT SCREWS BAG 25 [7] METAL 90 CORNER SCREWS BAG 24 [5] IN FRAME...
  • Page 28 ASM GANTRY SIDE FRAME TO TOP OF GANTRY PART LOCATION [1] 410mm [16.14"] 2020 FRAME WRAPPED IN BOX [2] METAL 90 CORNER HARDWARE BOX [3] METAL 90 CORNER SCREWS BAG 24 [4] T SLOT NUTS BAG 3 [5] Y CHAIN UPPER MOUNT PLASTIC PARTS BAG [6] Y CHAIN UPPER WASHERS BAG 9...
  • Page 29 3.5 ASSEMBLE X IDLER MOUNT (LOOSE BEARING MOUNT SCREW) PART LOCATION [1] Z LINEAR BEARINGS HARDWARE BOX [2] X IDLER MOUNT PLASTIC PARTS BAG [3] X IDLER BEARING MOUNT NUT BAG 1 [4] X IDLER BEARING MOUNT SCREW BAG 17 [4] LOOSE LOOSE...
  • Page 30 3.6 ASSEMBLE X MOTOR MOUNT (LOOSE BEARING MOUNT SCREW) PART LOCATION [1] Z LINEAR BEARINGS HARDWARE BOX [2] X MOTOR MOUNT PLASTIC PARTS BAG [3] X MOTOR NEMA 17 17HS16-2004S1 HARDWARE BOX [4] X MOTOR SPACERS BAG 12 [5] X MOTOR WASHERS BAG 9 [6] X MOTOR SCREWS BAG 16...
  • Page 31 3.7 FLIP BED ASM UP AND INSERT Z BEARING RODS PART LOCATION [1] BED ASM [2] X IDLER MOUNT ASM [3] X MOTOR MOUNT ASM [4] Z BEARING ROD WRAPPED IN BOX INSERT ROD THROUGH BEARINGS TRY TO ALIGN ROD AND BEARING WELL SO BEARING SEAL REMAINS FREE OF CUTS.
  • Page 32 3.8 ASSEMBLE GANTRY TO LOWER ASSEMBLY PART LOCATION [1] GANTRY ASM [2] T SLOT NUT BAG 3 [3] METAL 90 CORNER BRACKET SCREW BAG 24 [4] PLASTIC FRONT CORNER BRACKETS PLASTIC PARTS BAG [5] PLASTIC CORNER WASHERS BAG 8 [6] PLASTIC CORNER SCREWS BAG 25 LOOSEN THESE 4 SCREWS BEFORE TIGHTENING THE LOWER CORNER...
  • Page 33 3.9 REEL HOLDER AND FILAMENT GUIDE: 2 OR 4 (DUAL) TIMES PART LOCATION [1] TALL THUMB WHEEL L & R EXTRUDER BOX [2] HEX HEAD SCREW BAG 49 [11] [3] ANTI-SLIP WASHER BAG 38 [4] WASHER BAG 40 [5] NUT BAG 36 [10] [6] FILAMENT FEEDER...
  • Page 34 4.1 CLAMP X RAILS AND ASM IDLER [2] CUT SPLICING TAPE PART LOCATION INTO 4 EQUAL LENGTH [1] X RAIL WRAPPED IN BOX PIECES AND WRAP [2] SPLICING TAPE HARDWARE BOX AROUND END OF X BEARING RAILS [3] X BEARINGS HARDWARE BOX [4] X IDLER MOUNT FRONT NUTS BAG 1...
  • Page 35 ASSEMBLE X RAILS TO MOTOR SIDE PART LOCATION [1] SPLICING TAPE HARDWARE BOX [2] X MOTOR MOUNT FRONT CLAMP PLASTIC PARTS BAG [3] X MOTOR MOUNT FRONT NUTS BAG 1 [4] X MOTOR MOUNT FRONT SCREWS BAG 18 WRAP SPLICING TAPE AROUND SHAFT ENDS DETAIL G SEE DETAIL...
  • Page 36 ASM X LIMIT SWITCH PART LOCATION [1] X LIMIT SWITCH ELECTRONICS BOX [2] X LIMIT SWITCH SCREWS BAG 20 DETAIL H SEE DETAIL...
  • Page 37 INSERT Z THREADED ROD AND NUT PART LOCATION [1] COUPLING SET SCREWS CONTACT FLATS. [1] SHAFT COUPLING HARDWARE BOX [2] 2.0mm ALLEN WRENCH HARDWARE BOX [3] Z THREADED ROD WRAPPED IN BOX [4] M4 NUT BAG 2 [4] RUN NUT THROUGH ENTIRE LENGTH OF THREADED ROD.
  • Page 38 ASSEMBLE CARRIAGE BACK AND CLIP X AXIS BELT PART LOCATION [1] CARRIAGE BACK PLASTIC PARTS BAG [2] BINDER CLIPS HARDWARE BOX [3] X PULLEY HARDWARE BOX SEE DETAIL INSTALL X BELT PULLEY DETAIL K ENSURE BEARINGS ARE SEATED PULL BELT TIGHT BINDER CLIP MUST TOUCH WRAP BELTS AS SHOWN, THEN CLIP BOTH SIDES OF BELT...
  • Page 39 4.6 DUAL EXTRUDER LIFT (OPTIONAL, WITH DUAL EXTRUDER) PART LOCATION [1] CARRIAGE FRONT PLASTIC PARTS BAG [2] 4mm LINEAR BEARINGS RIGHT EXTRUDER BOX [3] BEARING CLAMP UPPER PLASTIC PARTS BAG [4] BEARING CLAMP LOWER PLASTIC PARTS BAG [5] CLAMP NUTS BAG 54 [6] CLAMP SCREWS BAG 55...
  • Page 40 4.7 ASSEMBLE CARRIAGE FRONT TO CARRIAGE BACK PART LOCATION [1] CARRIAGE FRONT ASM [2] CARRIAGE FRONT MOUNT WASHERS BAG 7 [3] CARRIAGE FRONT MOUNT NUTS BAG 1 [4] CARRIAGE FRONT MOUNT SCREWS BAG 19 SEE DETAIL DETAIL L...
  • Page 41 ASSEMBLE 30mm FAN: 1 OR 2 (DUAL EXTRUDER) PART LOCATION [1] 30mm FAN L & R EXTRUDER BOX [2] FAN CLIP L & R EXTRUDER BOX [3] FAN SCREWS BAG 48 MOUNT FAN LABEL IS NOT ON THIS SIDE WIRES EXIT BOTTOM SIDE HERE...
  • Page 42 CARRIAGE FAN AND SWITCH MOUNT PART LOCATION [1] 40mm FAN ELECTRONICS BOX [2] Z LIMIT SWITCH ELECTRONICS BOX [3] Z LIMIT SWITCH SCREWS BAG 20 [4] FAN AND SWITCH MOUNT PLASTIC PARTS BAG [5] FAN MOUNT SCREWS BAG 21 MOUNT FAN SO LABEL IS NOT ON THIS SIDE SEE DETAIL DETAIL M...
  • Page 43 4.10 EXTRUDER ASSEMBLY (1 OR 2) [3] ALIGN WITH FILAMENT HOLE PART LOCATION [10] [1] HS MOUNT, L &R PLASTIC PARTS BAG [15] [11] [2] EXTRUDER MOTOR L & R EXTRUDER BOX [3] DRIVE GEAR HARDWARE BOX [4] LEVER L & R EXTRUDER BOX [5] HEATSINK CLAMP L &...
  • Page 44 4.11 MOUNT FAN AND SWITCH MOUNT TO CARRIAGE PART LOCATION SEE DETAIL [1] FAN AND SWITCH MOUNT ASM [2] FAN AND SWITCH MOUNT SCREWS BAG 14 [3] FAN AND SWITCH MOUNT NUTS BAG 1 [4] 1 IN, 3 OUT 2 PIN FAN WIRE WIRE BAG [5] EXTRUDER 1 AND 2 EXTRUDER BOXES...
  • Page 45 4.12 ASSEMBLE EXTRUDER(S) TO CARRIAGE PART LOCATION SEE DETAIL [1] CARRIAGE MOUNT WASHERS BAG 39 [2] CARRIAGE MOUNT SCREWS BAG 47 REMOVE SCREWS FROM BACK OF MOTOR BEFORE ASSEMBLING THESE IF USER CHOOSES TO OPERATE RIGHT EXTRUDER WITHOUT SERVO LIFT, ASSEMBLE RIGHT EXTRUDER SAME AS LEFT DETAIL N...
  • Page 46 4.13 OPTIONAL R EXTRUDER LIFT (DUAL EXTRUDER ONLY) PART LOCATION [1] 4MM LINEAR RODS R EXTRUDER BOX [2] ROD CLAMP R EXTRUDER BOX [3] SPRING R EXTRUDER BOX [4] ROD CLAMP NUT BAG 54 [5] ROD CLAMP SCREW BAG 56 INSERT SPRING LAST THIS SPRING HAS SMALLER WIRE AND IS LESS STIFF...
  • Page 47 4.14 ADJUST BED LEFT OR RIGHT AND GANTRY FORWARD OR BACK SEE DETAIL SEE DETAIL MOVE EXTRUDER CARRIAGE UNTIL YOU HEAR THE X LIMIT SWITCH CLICK, THEN BACK 2mm. ENSURE LEFT EXTRUDER NOZZLE WILL NOT COLLIDE WITH BUILD PLATFORM. ADJUST BED POSITION IF NECESSARY.
  • Page 48 5.1 AC CIRCUIT COMPONENTS WARNING: WORKING WITH AC VOLTAGES CAN PART LOCATION CAUSE SERIOUS HARM! SEEK HELP IF YOU ARE UNSURE OF YOUR WIRING, AND ALWAYS [1] ENCLOSURE PLASTIC PARTS BAG WORK WITH THE POWER CORD UNPLUGGED! [2] POWER SWITCH ELECTRONICS BOX [3] FUSE AND HOLDER WIRE BAG...
  • Page 49 5.2 AC CIRCUIT WIRING PART LOCATION [1] 120VAC POWER CORD WIRE BAG [2] 16AWG, WHITE, SPADE TO BARE WIRE BAG [3] AC TO SSR, 16AWG BLUE WIRE BAG BARE TO BARE, 100-150mm ALL BLUE LINES SHOW WIRE ROUTING. USE DESCRIPTIONS TO MAKE CONNECTIONS, NOT ILLUSTRATIONS FROM FUSE, BLUE TO POWER SUPPLY "L"...
  • Page 50 24VDC CIRCUIT PART LOCATION [1] RAMPS 1.4/MEGA 2560/DRV8825 ELECTRONICS BOX [2] 22AWG YELLOW, BARE ENDS 150mm WIRE BAG [3] 22AWG BLACK, BARE ENDS 150mm WIRE BAG [4] 22AWG YELLOW, BARE ENDS 25mm WIRE BAG [5] VREG WITH HANGING WIRES ELECTRONICS BOX [6] WHITE CONNECTOR TERMINALS WIRE BAG CONNECT YELLOW WIRE TO...
  • Page 51 INSTALL RAMPS 1.4, MEGA 2560, AND ENCLOSURE FAN PART LOCATION [1] RAMPS 1.4/MEGA 2560/DRV8825 ASM [2] VREG WITH HANGING WIRES ELECTRONICS BOX [3] LCD TOP CONNECTOR PCB ELECTRONICS BOX [4] 40mm FAN ELECTRONICS BOX [5] VREG SCREWS BAG 20 [6] NYLON WASHER FOR LONG SCREW BAG 11 [7] RAMPS 1.4 LONG SCREW BAG 23...
  • Page 52 6.25VDC CIRCUIT PART LOCATION WARNING: WIRING THIS POWER CIRCUIT WRONG CAN DAMAGE FANS, CONTROLLER, [1] 1 IN, 2 OUT, 2 PIN ADAPTER WIRE BAG AND MOTOR DRIVES. PLEASE DOUBLE- [2] .1" HEADER EXTENSION PINS WIRE BAG CHECK FOR CORRECT WIRING. [3] LED LIGHT STRIP ELECTRONICS BOX DETAIL S...
  • Page 53 MOUNT ENCLOSURE TO TOP GANTRY FRAME PART LOCATION [1] T SLOT NUTS BAG 3 [2] ENCLOSURE MOUNT WASHER BAG 9 [3] ENCLOSURE MOUNT SCREWS BAG 26 SEE DETAIL [1] IN FRAME REMOVE ADHESIVE FROM LED'S AND APPLY TO UNDERSIDE OF FRAME DETAIL T...
  • Page 54 WIRE EXTENSIONS AND ROUTING PART SIZE WIRE LOCATION [1] X AXIS MOTOR CABLE ATTACHED 300x300 ATTACHED + 4P 30cm FFH WIRE BAG 600x300 ATTACHED + 4P 70cm FFH WIRE BAG [2] Y AXIS MOTOR CABLE 600x600 6-4P NEMA23 MOTOR WIRE + WIRE BAG 4P 70cm FFH + 4P 30cm FFH [3] Z AXIS MOTOR CABLE...
  • Page 55 5.7 WIRE EXTENSIONS AND ROUTING (CONTINUED) [2], [3], WRAP IN SPIRAL WIRE WRAP [1], [3], [4], [5] WRAP IN SPIRAL WIRE WRAP ZIP TIE TO FRAME [6] & CARRIAGE CABLE FROM 5.11 [1], [3], [4], [5] WRAP IN SPIRAL WIRE WRAP [1], [4] NOT ON FRAME WRAP IN SPIRAL WIRE WRAP...
  • Page 56 5.8 ROUTE CARRIAGE WIRES AND ASM X CABLE CHAIN MOUNT PART LOCATION [1] TOP X AXIS CABLE CHAIN MOUNT PLASTIC PARTS BAG [2] TOP X AXIS CABLE CHAIN SCREW, LONG BAG 17 [3] TOP X AXIS CABLE CHAIN SCREW, SHORT BAG 15 [4] TOP X AXIS CABLE CHAIN NUT BAG 1...
  • Page 57 DETAIL V CONNECTOR IS REVERSED, CONTROLLER RESETS WHEN SWITCH IS CLOSED. 4. MOTOR DRIVES ARE PRE-SET FOR ALL BIGBOT KITS. NO ADJUSTMENT IS NECESSARY UNLESS MOTORS ARE TOO HOT TO TOUCH FOR MORE THAN 5 SECONDS OR MOTORS ARE SKIPPING STEPS.
  • Page 58 5.10 MOUNT AND CONNECT LCD AND SD READER PART LOCATION [1] LCD ELECTRONICS BOX [2] FRONT COVER PLASTIC PARTS BAG [3] FRONT COVER SCREWS BAG 14 LCD RIBBON CABLE ELECTRONICS BOX CONNECT BOTH IDE CABLES FROM LCD TO RAMPS 1.4. BE SURE MATCH EXP0 TO EXP0 (SEE LCD AND RAMPS FOR LABEL) DO NOT MOUNT LCD COVER TO ENCLOSURE YET.
  • Page 59 5.11 TEST ELECTRONIC SYSTEMS PLUG IN AND SWITCH PRINTER ON. ENSURE BED REMAINS COOL. TURN OFF IF IT WARMS. ADJUST SCREW ON BACK OF LCD FOR PROPER LCD BRIGHTNESS. CLIP LCD COVER TO ENCLOSURE REMOVE PROTECTIVE FILM COVERING BUILD PLATE. APPLY YOUR HEATED BED MATERIAL, TAPE, OR ADHESIVE OF YOUR CHOICE.
  • Page 60 5.12 COMPLETE WIRE MANAGEMENT, CLEAN UP PART LOCATION WIRE TIES WIRE BAG [2] WIRE CLIPS PLASTIC PARTS BAG [3] X CABLE CHAIN ASM (LONG) PLASTIC PARTS BAG [4] Y CABLE CHAIN PLASTIC PARTS BAG [5] Z CABLE CHAIN PLASTIC PARTS BAG CLIP CABLE CHAIN ON SPIRAL WRAPPED WIRES FOR X, Y, AND Z AXIS INSERT WIRE CLIPS ONTO TOP RAIL AND CLIP ONTO SPIRAL WRAP.
  • Page 61 CONGRATULATIONS, ASSEMBLY OF YOUR BIGBOT PRINTER IS COMPLETE! CONTINUE ON TO USAGE INSTRUCTIONS WHEN YOU'RE READY TO START PRINTING!
