Darim PVE400 Quick Start Manual

Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

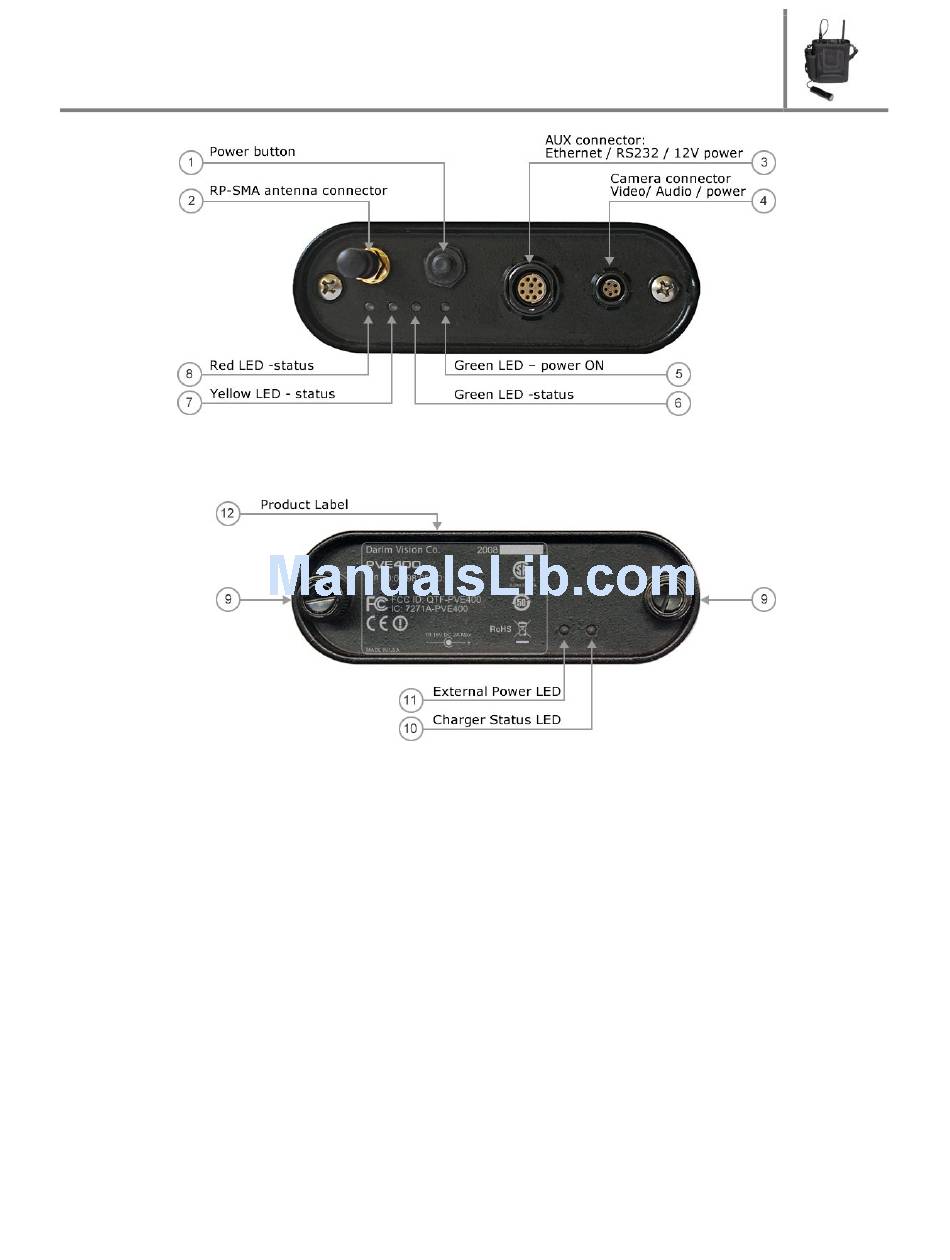

1. Connect the Bullet Camera to the camera connector (4) – the white guide markings on the
PVE interface and camera interface should be lined up. If there are no white alignment
dots, simply rotate until it mates.
2. Attach the Antenna to RP-SMA connector (2).
3. Press and hold the Power button (1) until Green Power On LED (5) is on.
4. The unit will take approximately 60 seconds to fully boot at which point it is ready for
operation. The Green Status LED (6) will indicate that unit is ready.
5. Connect PVE-AUX cable to the AUX connector (3) and RG45 side to the PC or switch.
PVE-AUX cable is "straight" Ethernet cable and must be connected through a
hub/switcher unless your computer has autosensing Ethernet port.
PVE400 Quick Start Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVE400 and is the answer not in the manual?

Questions and answers

Related Manuals for Darim PVE400

Summary of Contents for Darim PVE400

  • Page 1 PVE400 Quick Start Guide 1. Connect the Bullet Camera to the camera connector (4) – the white guide markings on the PVE interface and camera interface should be lined up. If there are no white alignment dots, simply rotate until it mates.
  • Page 2 6. Set your PC network adapter to static IP address on subnet 192.168.1.x. For example 192.168.1.100: 7. By default the wired PVE400 Ethernet port is configured with a static IP address 192.168.1.250. By utilizing the PVE-AUX cable you can access the PVE400 and configure the network settings, a/v settings and diagnostics using the web management interface by launching the Internet Browser session to http://192.168.1.250.
  • Page 3 8. After browsing the IP address of the PVE unit, the dialog box requesting the user account should appear. The factory default account is: User: admin : Password: admin ….then the PVE400 Web Management Interface opens. Note: you may use any Internet Browser for configuration, but the embedded video...
  • Page 4 11. Confirm acceptance and when installed you will be able to view live video from the PVE unit via the Darim’s Active-X plug-in on the VIDEO tab 12. To turn off – press and hold the power button (1) until green Power LED (5) is off.
