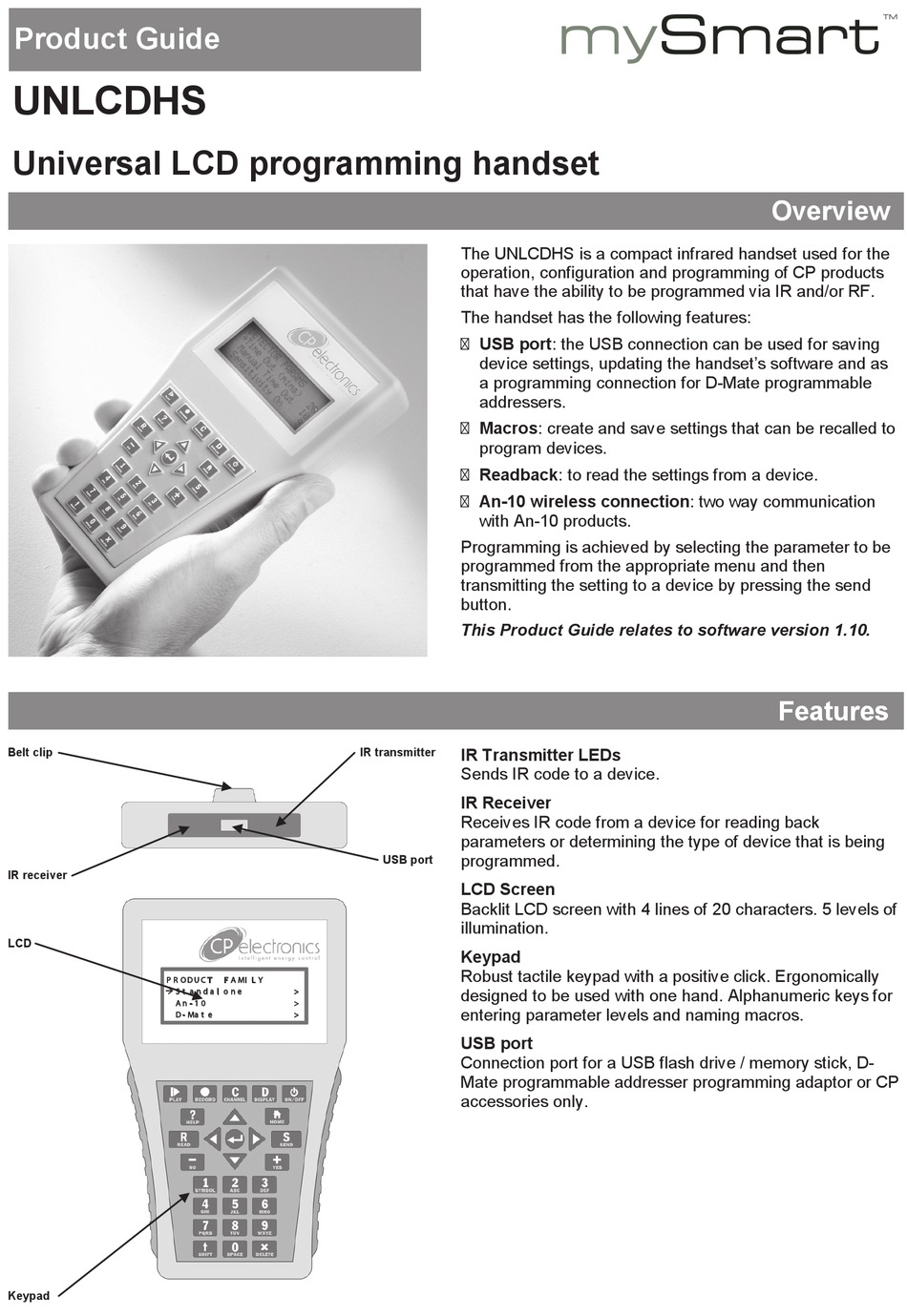

mySmart UNLCDHS Product Manual

Product Guide
UNLCDHS
Universal LCD programming handset
Belt clip
IR receiver
LCD
1234 567 890 123 456 789 0
P R O D U C T
1234 567 890 123 456 789 0
S t a n d a l o n e
1234 567 890 123 456 789 0
A n - 1 0
1234 567 890 123 456 789 0
D - Ma t e
Keypad
IR transmitter
USB port
F A MI L Y
>
>
>
The UNLCDHS is a compact infrared handset used for the
operation, configuration and programming of CP products
that have the ability to be programmed via IR and/or RF.
The handset has the following features:
USB port: the USB connection can be used for saving
device settings, updating the handset's software and as
a programming connection for D-Mate programmable
addressers.
Macros: create and save settings that can be recalled to
program devices.
Readback: to read the settings from a device.
An-10 wireless connection: two way communication
with An-10 products.
Programming is achieved by selecting the parameter to be
programmed from the appropriate menu and then
transmitting the setting to a device by pressing the send
button.
IR Transmitter LEDs
Sends IR code to a device.
IR Receiver
Receives IR code from a device for reading back
parameters or determining the type of device that is being
programmed.
LCD Screen
Backlit LCD screen with 4 lines of 20 characters. 5 levels of
illumination.
Keypad
Robust tactile keypad with a positive click. Ergonomically
designed to be used with one hand. Alphanumeric keys for
entering parameter levels and naming macros.
USB port
Connection port for a USB flash drive / memory stick, D-
Mate programmable addresser programming adaptor or CP
accessories only.

Overview

Features
