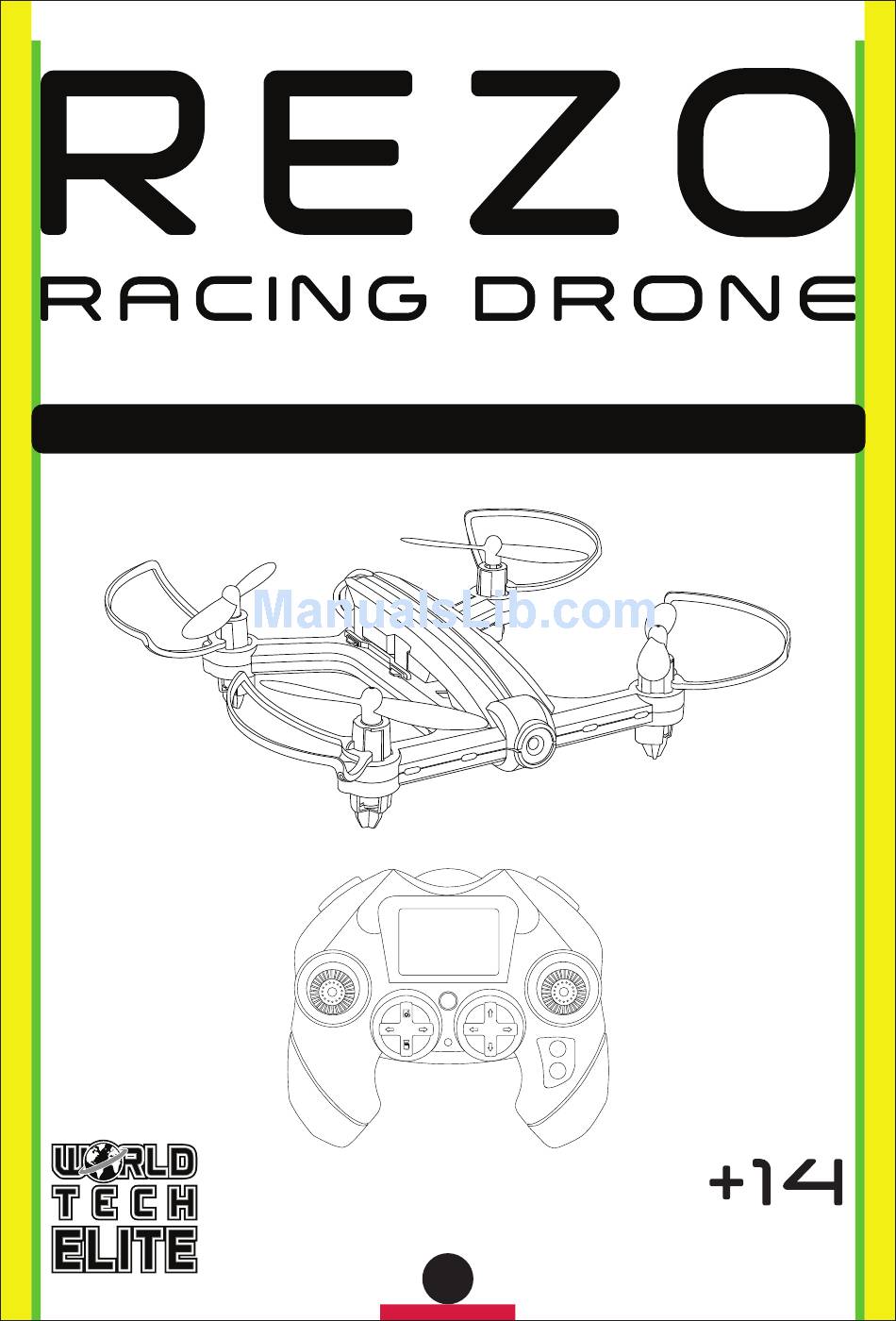

- Page 1 2 . 4 G H z 4 . 5 C H R C R A C I N G Q U A D C O P T E R I N S T R U C T I O N M A N U A L ITEM NO. 33054...
- Page 2 TA B L E O F C O N T EN TS INTRODUCTION SAFETY & PRECAUTIONS DRONE DIAGRAM TRANSMITTER DIAGRAM INSTALLING THE TRANSMITTER BATTERY INSTALLING THE DRONE BATTERY CHARGING THE DRONE BATTERY CHANGING THE DRONES SHELL PREFLIGHT PREP / SYNCING THE DRONE TO THE REMOTE FLYING THE DRONE FLYING THE DRONE - SPECIAL FUNCTIONS ADJUSTING THE TRIM...
-
Page 3: Introduction
INTRODUCTION Thank you for purchasing this amazing World Tech Toys product. This drone is suitable for indoor and outdoor flight. Please carefully read the entire manual before operating this drone and keep it for reference in the future. SAFETY & PRECAUTIONS 1. -
Page 4: Drone Diagram
DRONE DIAGRAM BOTTOM OF DRONE Rotor Red LED Rotor Guards Lights FRONT Shell Power Switch Landing BACK Skids Green LED Battery Lights Compartment Headlight Landing Skids TRANSMITTER DIAGRAM Power Button Speed Modes Flip Stunt Mode Forward / Backward (Move Left / Right) Ascend/Descend (Turn Left/Right) Forward / Backward Trim... -
Page 5: Installing The Drone Battery
INSTALLING THE TRANSMITTER BATTERIES Battery Cover First remove the screw on CAUTION: the battery cover and then 1. Make sure the polarity of the remove the battery cover batteries are correctly installed. itself. Next, install 4 AA 2. Do not mix old and new batteries with the correct batteries. -
Page 6: Changing The Drones Shell
CHANGING THE DRONES SHELL The drone has a removable shell that you can replace if damaged. You can also change the color of your drone with a new shell (Sold Separately). Follow the directions to change the drone shell. Remove the battery first. Focus on one Once the shell tabs are all released side of the drone at a time. -
Page 7: Flying The Drone
FLYING THE DRONE Before flying the drone for the first time please read the instructions carefully and make sure you fully understand how to control your drone. BASIC FLYING CONTROLS Throttle Move Forward/Backward Front Back Move Right/Move Left Move Left Move Right Turn Left /Turn Right Turn Left... -
Page 8: Flying The Drone - Special Functions
FLYING THE DRONE - SPECIAL FUNCTIONS SPEED CONTROL The drone has 3 speed settings: Low, medium and high speed. The drone will always default to the low speed when you first turn it on. Press the SPEED CONTROL button once and you will hear 2 beeps, meaning it is now on medium speed. -
Page 9: Adjusting The Trim
ADJUSTING THE TRIM When the drone moves without transmitter input, adjust the trim controls until hovering is stable. Drone is turning Push the TURN to the left. RIGHT TRIM button until the drone stops turning. Turn Right Trim Push the TURN Drone is turning to the right. -
Page 10: Post Flight
POST FLIGHT After you are done flying the drone make sure the battery pack is disconnected and the transmitter power is turned off. If you are not going to use the drone for a long period of time, please remove the AA batteries from the transmitter to prevent them from draining or leaking. -
Page 11: Racing Rings Assembly
RACING RINGS ASSEMBLY Two of the included racing rings have LED Battery Cover lights that are each powered by a battery box. To start, remove the single screw on each of the battery covers and then slide them off towards the plug and switch. Next install 2 AA batteries with the correct polarity into each battery box. -
Page 12: Racing Rings Assembly Continued
RACING RINGS ASSEMBLY CONTINUED Once you have assembled the racing rings connect the battery boxes to the red and blue racing rings as shown. Turn on each battery box via the switch located next to the battery boxes power port. Finally, place the battery box next to the ring or on the flat base of the racing ring. -
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Transmitter is not syncing with Drone is unresponsive. The Repeat the power up process. drone. Transmitter light keeps flashing. Drone is unresponsive. Transmitter and or drone Turn both transmitter and drone ON. is not powered ON. Transmitter batteries are Install the batteries with the installed incorrectly. - Page 14 NOTES: Website: www.worldtechtoys.com Email: customerserv@worldtechtoys.com SPECIFICATIONS, Phone: (877) 498-8697 COLORS AND CONTENT Monday - Friday / 8:00AM - 5:00PM / Pacific Time MAY VARY FROM ILLUSTRATIONS MADE IN CHINA WWW.WORLDTECHTOYS.COM...
