Protege PRT-RDM2 Quick Start Manual

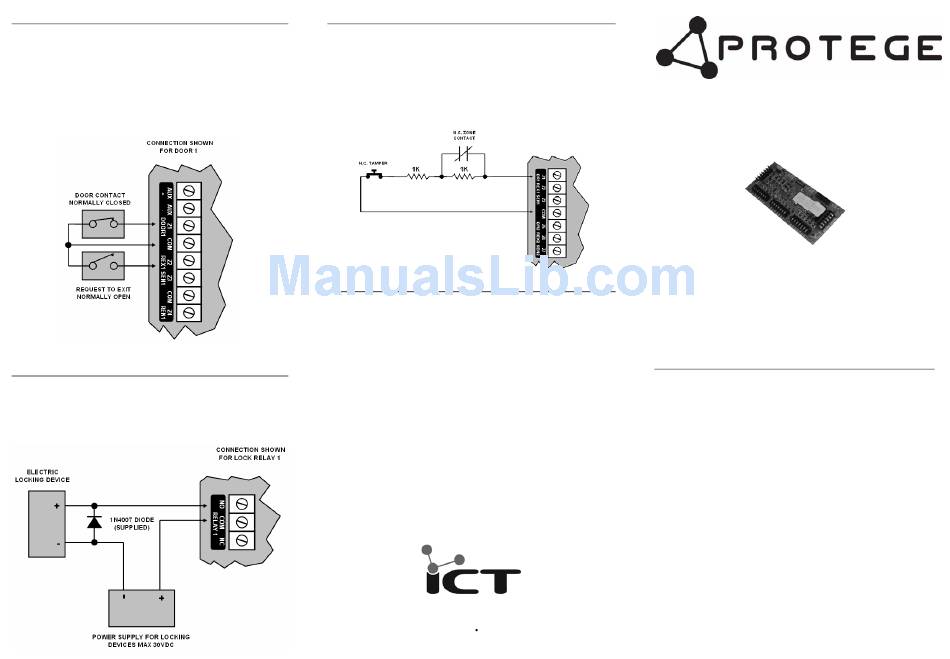

DOOR CONTACT CONNECTION

The Protégé Reader Expander allows the connection of
up to 4 contacts for monitoring and controlling access
control doors. Each zone on the reader expander can be
used for the door function that is automatically assigned
and as a normal zone input on the system. The following
example shows the connection of a normally closed door
position monitoring contact to monitor the open, closed,
forced and alarm conditions of the door.

DOOR LOCK CONNECTION

The Protégé Reader expander provides a connection for 2
electric strike locks with full monitoring of the lock circuit
for tamper and over current/fuse blown conditions. The
door lock monitoring can be disabled if it is not required.

ZONE INPUT

The Protégé Mini Reader Expander can monitor the state of
up to 6 zone inputs such as magnetic contacts, motion
detectors and temperature sensors.
supports normally opened and
configurations with or without EOL resistors on a per zone
configuration setting, the diagram below shows how to wire
a zone with EOL resistors enabled.

SPECIFICATION

Power Supply
DC Input Voltage 12VDC
(10.5VDC Min, 14.0VDC Max)
Operating Current 80mA (Typical)
Communication
RS-485 Module Network
Outputs
Lock Outputs 2 FORM C Relay Outputs
PGM Outputs 6 (50mA Max) Open Collector
Inputs
Zone 8 (500ms to 40sec Input Speed)
Tamper 1 (Normally Closed)
Trouble Zone 16
Dimensions
PCB Dimensions 92mm X 210mm
3.6" X 8.3"
*Specifications are subject to change without notice, please
visit www.integratedcontroltechnology.com for the updated
information.
Unit C, 6 Ascension Place, Mairangi Bay, P.O. Box 302-340
North Harbour, Auckland, New Zealand.
Phone: +64 (9) 476 7124 Fax: +64 (9) 476 7128
www.integratedcontroltechnology.com
The Controller
normally closed
Mini 2 Reader Expander
Quick Start Guide

INTRODUCTION

The Protégé Reader Expander extends the number of card
reader inputs on the system by 2, number of zone inputs
by 8 (4 zones used for door monitoring and control and
up to eight can be used for extended functionality) and
the number of PGM outputs by 8 (includes 2 monitored
lock control outputs).
• 4 Wiegand Reader Mode for 2 Entry/Exit Doors Per
Reader Expander
• Secure Encrypted RS-485 Module Communications
• 8 Zone Inputs
• 2 Lock FORM C Relay PGM Outputs
• 6 Open Collector PGM Outputs (Reader Control
Outputs)
• Smart Reader Missing/Tamper Monitoring
• Online and Remote upgradeable firmware
For a full installation manual or more information on the
Protégé Reader Expander and other Integrated Control
Technology
www.integratedcontroltechnology.com
PRT-RDM2
products please login to our website
