Summary of Contents for TBS technologies TBS2910

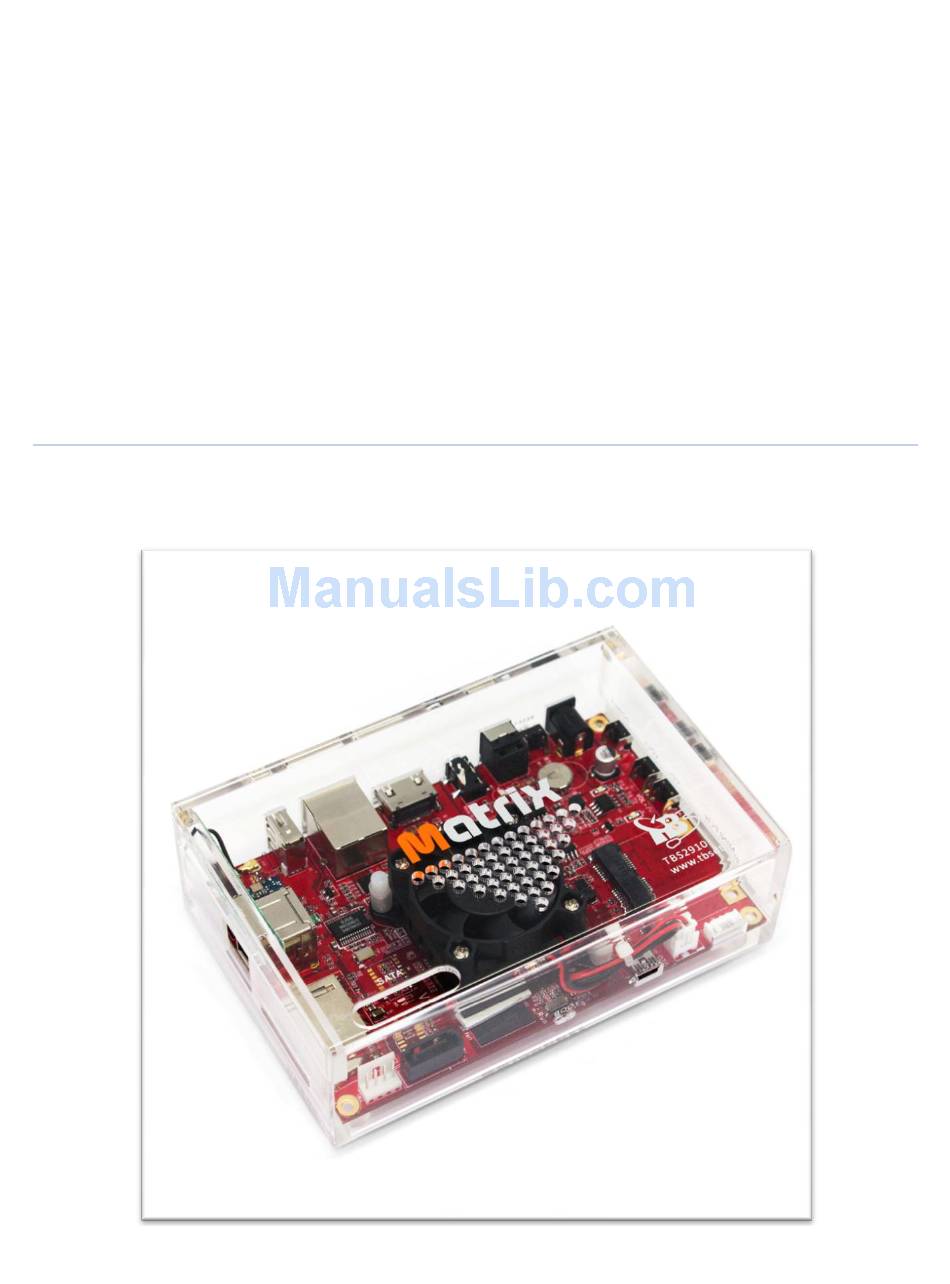

- Page 1 Matrix Get Started Guide V2.0...

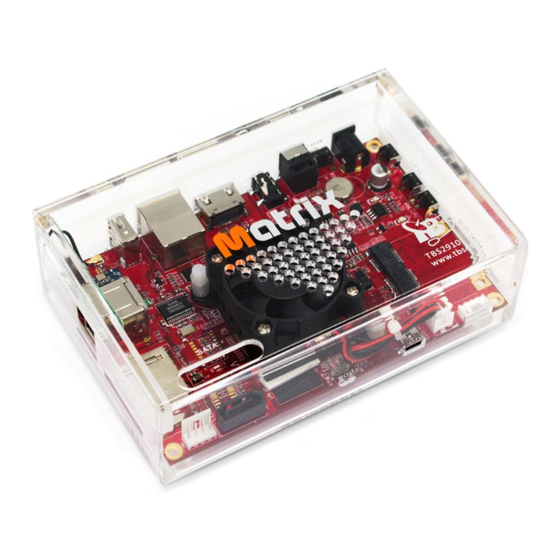

- Page 2 Overview Matrix is a single board mini computer based on ARM with a wide range of interface, equipped with a powerful i.MX6 Freescale processor, it can run Android, Linux, Ubuntu and other operating systems, a switch between different operating systems can be done within just a few minutes! Matrix also has great support for TBS USB tuners and popular software such as XBMC, VDR, Tvheadend, DVBLast and so Features...
- Page 3 Specification System-on-a-Chip (SoC) Freescale MCIMX6Q5EYM10AC Quad ARM Cortex-A9 at 1.0GHz Vivante GC2000, Quad core GPU, Quad IPU 2GB DDR3 USB 2.0 Ports 3x USB 2.0 3.5 mm jack Audio & Video HDMI port SATA3.0 UART port I/O port Other Interface OTG (mini USB) mini PCIe Optical (S/PDIF)
- Page 4 Interface Introduction 1. I/O port 8. Optical (S/PDIF) port 16. BOOT/ UPDATE switcher 2. 2x USB 2.0 ports 9. USB 2.0 port 17. IR receiver 3. Micro SD/ TF card slot 10. DV 12V (power 18. LED indictor connector) 4. LAN port 19.
- Page 5 Get Started Matrix is an open source mini PC based on ARM, which can run Android, Linux, Ubuntu and many other operating systems, by default it has MatrixTV system preinstalled inside, it’s easy to switch to another system within just a few minutes, by burning a new OS image into the eMMC on the board.
- Page 6 02- Connect the network cable Connect the network cable to the LAN slot on Matrix. 03- Connect keyboard & mouse There are 3 USB2.0 ports on Matrix, two of which can be used to connect with a keyboard and a mouse.
- Page 7 04- Power on Matrix Matrix starts to boot the moment you plug the power supply to the “DC 12V” slot. Now Matrix is ready for you to explore more! ---7 / 9 Matrix – Get Started Guide V2.0...
- Page 8 Switch to another operating system Matrix runs MatrixTV system by default, if you want to switch to another operating system, you need to burn a new OS intos the eMMC on the board. In order to burn the new OS into eMMC, you are going to need: ...
- Page 9 How to update MatrixTV system through SD card If your Matrix runs MatrixTV V1.0.0.7 or a later version, system update becomes more convenient now, you no longer have to connect it via mini USB cable to the PC and then flash the new OS to eMMC, because MatrixTV V1.0.0.7 and the later versions support update through SD card, and there are just a few easy steps! 1.
