Sailrite 100547 Assembly Instructions

Table Top & Stand
Assembly Instructions

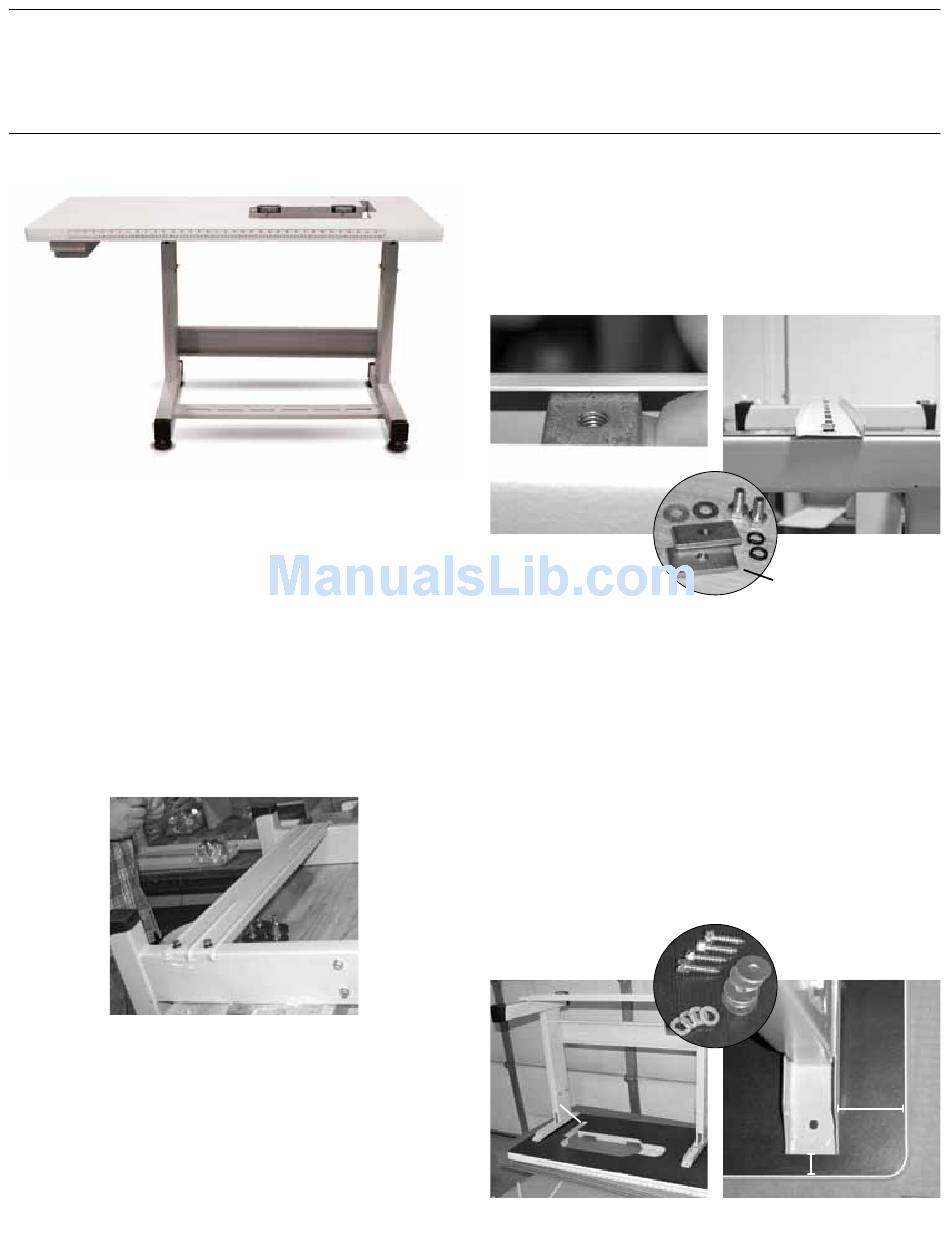

Completed Table Top & Stand for the Ultrafeed
Table STand aSSembly
Begin by unpacking all materials. Take inventory of what was
received and compare to the invoice and the Sailrite catalog.
Stand the two legs (legs come pre-assembled) upright and
facing the same direction. Align the back brace (wider bar)
with the two screw holes on the back of each leg. Thread a lock
washer and then a washer onto the screws and screw the back
brace to the leg. Place screws in both holes and then repeat
on the other leg (Figure 1). After screws are in place, secure by
tightening each screw with a socket or crescent wrench.
Flip the legs upside down to attach the floor brace (narrow
bar). Align floor brace with the long slot on each leg. Take one
square nut and insert it under the slotted groove of the leg
and turn it so that its length spans the width of the leg (Figure
2). Once inserted in the leg, hold the square nut up inside the
long slotted groove with your finger and position the floor
brace over the hole in the square nut. Insert a bolt (threading
#100547
Figure 1
Kit Includes:
• Table Top for Ultrafeed
• Leg Table Frame Assembly
• Euro Hinge (2)
• Rubber Base for Euro Hinge (2)
a lock washer and washer on the bolt first) while holding the
square nut with your finger and screw down. Repeat with
the other leg (the opposite leg may have to bend in order
to secure). Once both screws are in, position the floor brace
around the center of the legs and tighten down
(Figure 3).
Figure 2
aTTach Table Top
Position the table top upside down on a soft surface that will
not damage the top. The front of the table can be identified
by the ruler on the front edge. Take the assembled leg stand
and flip it upside down also. Position the leg stand so that it
rests 1 inch from the back of the table and 3 inches from the
right edge, the edge closest to the belt opening (Figure 4 & 5).
The back brace should be along the back edge of the table,
opposite the edge with the ruler.
Thread a lock washer and then a washer onto the self-tap
screws, and attach the table stand to the table at the four
holes in the table legs. Use a drill with a socket attachment
(if available) to secure, or mark and predrill holes before
attaching the table stand.
Back Brace
Belt Opening
Figure 4
• Drawer with Rails
• Adjustable Rubber Feet
Cushions (4)
• Hardware
Figure 3
Square Nut
3"
1"
Figure 5
