sylber F-TANK MV 150 User Manual

Solar storage cylinders

Advertisement

Quick Links

INSTALLER, TECHNICAL ASSISTANCE
CENTRE AND USER MANUAL
SOLAR STORAGE CYLINDERS
F-TANK MV 150

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-TANK MV 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for sylber F-TANK MV 150

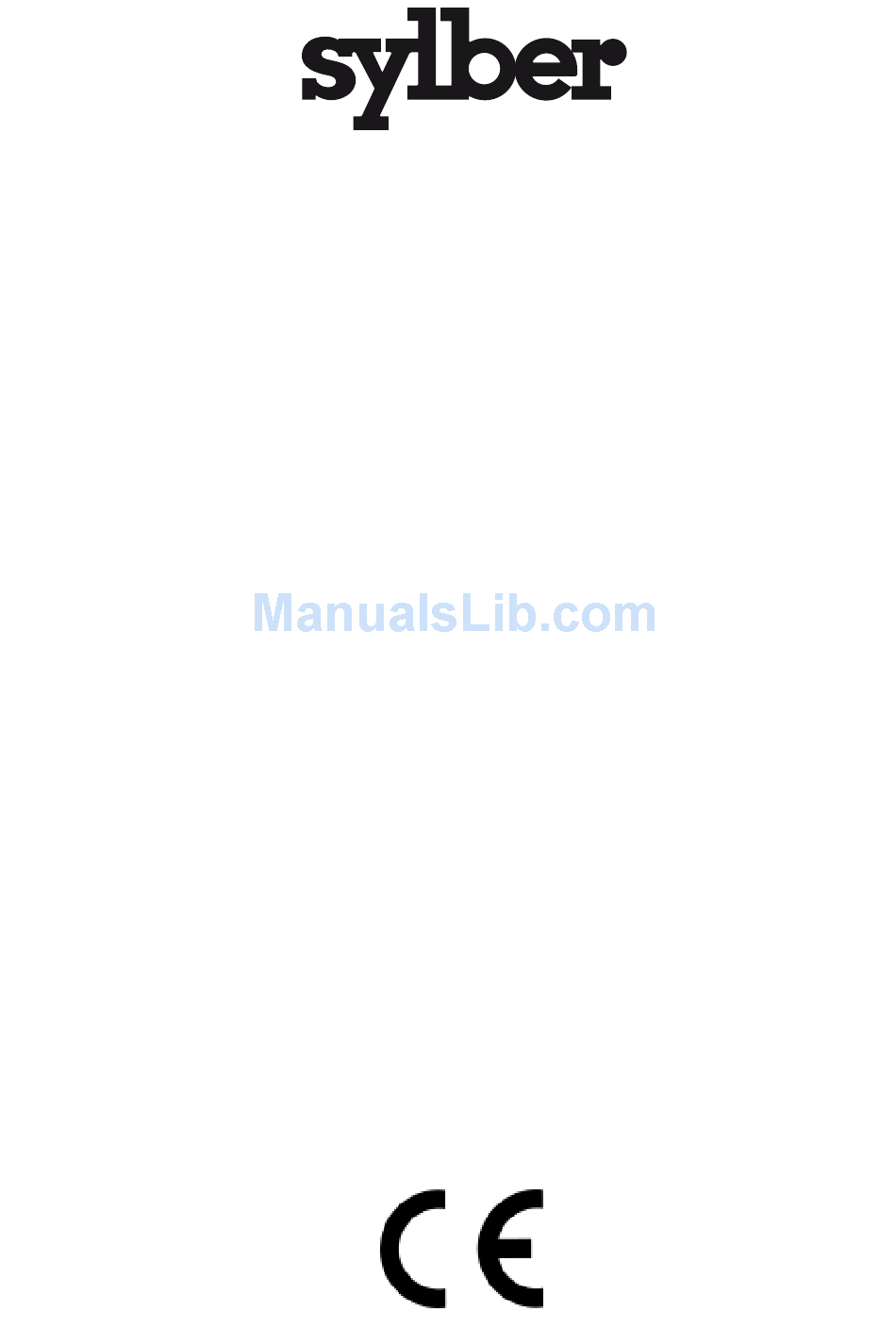

  • Page 1 INSTALLER, TECHNICAL ASSISTANCE CENTRE AND USER MANUAL SOLAR STORAGE CYLINDERS F-TANK MV 150...
  • Page 2 RANGE MODEL CODE F-TANK MV 150 BC 20096933 ACCESSORIES For a complete list of accessories and details of their compatibility, refer to the Catalogue. ENGLISH...
  • Page 3 CONTENTS GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1 General Safety Information .
  • Page 4: General

    GENERAL GENERAL SAFETY INFORMATION PRECAUTIONS The operation of any appliance that uses electrical power Check that the product is complete, undamaged and demands that a number of fundamental safety precautions as ordered as soon as you receive it. Report any dis- be respected.
  • Page 5: Description Of The Appliance

    This lists the technical specifications and performance of the product. The most important technical features of these solar stor- age cylinders are: SYLBER Via Risorgimento, 13 23900 Lecco (LC) - The storage cylinder and coil are specially designed and BOLLITORE SOLARE...
  • Page 6: System Layout

    GENERAL SYSTEM LAYOUT Magnesium anode Flow regulator Storage cylinder Cock B Temperature gauge Pump Sleeve for electric heating element (not supplied) Pressure gauge Cylinder inspection flange Cock A Flange cover Fitting for expansion vessel Coil Safety valve outlet Sensor socket Safety valve (6 bar) Insulation Return valve R...
  • Page 7: Technical Specifications

    GENERAL TECHNICAL SPECIFICATIONS DESCRIPTION F-TANK MV 150 BC Type of storage cylinder Vitrified Storage cylinder layout Vertical Heat exchanger layout Vertical Storage cylinder capacity Diameter of storage cylinder with insulation Height with insulation 1055 Insulation thickness Diameter/length of first magnesium anode...
  • Page 8 GENERAL Pressure drops COIL PRESSURE DROP (mbar) 1000 FLOW RATE (l/h) Tests performed with a 30% glycol/water solution. Residual head Water outlet and return group RESIDUAL HEAD (mbar) FLOW RATE (l/h) Tests performed with water at 20°C. Flow regulator fully open.
  • Page 9: Water Circuit

    GENERAL WATER CIRCUIT TYPICAL WATER SYSTEM SCHEMATIC Solar collector Domestic hot water outlet Solar storage cylinder Outlet from boiler Collector probe Return to boiler Disconnect valves Collector outlet Non-return valve Collector return Safety valve DHW circulation Drain Domestic cold water inlet Expansion vessel Storage cylinder drain Pump...
  • Page 10: Location Of Sensors

    GENERAL LOCATION OF SENSORS storage cylinders are equipped with dedicated sockets for the storage cylinder TEMPERATURE F-TANK MV BC GAUGE or TEMPERATURE SENSOR. The installer is responsible for making all necessary connections to the boiler and solar collectors. Installers must use their expertise to ensure proper installation and functioning in compliance with all applicable legislation.
  • Page 11: Overall Dimensions And Water Fittings

    GENERAL OVERALL DIMENSIONS AND WATER FITTINGS EAF (SB) (*) Hoses DESCRIPTION F-TANK MV 150 BC Domestic hot water outlet 1” F Ø Outlet from solar collector 1” M Ø Return to solar collector 1” M Ø DHW recirculation 3/4” F Ø...
  • Page 12: Installer

    - Carefully rotate and slide the storage cylinder off the plat- - Hydraulic test certificate. form on to the floor - Remove the platform. Position the storage cylinder as required. F-TANK MV 150 BC 1040 1280 Adjust the feet to ensure that the storage cylinder is per- fectly level.
  • Page 13: Place Of Installation

    INSTALLER 12 PLACE OF INSTALLATION 14 PREPARING FOR INITIAL STARTUP storage cylinders can be installed F-TANK MV BC in any room where there is no specific requirement for an - Connect the safety valve drain to a pipe (T) to avoid electrical protection rating higher than IP X0D.
  • Page 14: Initial Startup

    TECHNICAL ASSISTANCE CENTRE FLUSHING THE SYSTEM ADJUSTING THE FLOW - Turn the knobs of the outlet and return valves (M) and (R) Correct flow adjustment is essential to proper functioning fully anti-clockwise of the entire system. - Close the flow regulator (V) (so that the screw slot is hori- Set the flow regulator (V) fully open (see figure above).
  • Page 15: Checks During And After Initial Start-Up

    TECHNICAL ASSISTANCE CENTRE - Check that the solar collector circuit has been properly bled Position of the knob of the valve R - M Flow stopped 90° 90° 0° 0° Upward flow only (non-return valve function) Outlet Return group group - Check that the pressure of the system when cold is ap- proximately 3 bar - Check that the safety valve operates at 6 bar...
  • Page 16: Temporary Shutdown

    TECHNICAL ASSISTANCE CENTRE 17 TEMPORARY SHUTDOWN REPLACING THE PUMP Perform the following operations before starting work to re- place the pump (C): If you are going away for a short period of time like a week- - Switch the electricity supply to the storage cylinder’s end or a short holiday, etc., and outdoor temperatures are valve group and to any associated boiler OFF at the main going to remain above ZERO, proceed as follows.
  • Page 17: Troubleshooting

    TECHNICAL ASSISTANCE CENTRE 20 CLEANING AND REMOVING Cleaning inside the storage cylinder - Remove the screws (4) INTERNAL COMPONENTS - Remove the flange cover (5) - Remove the insulation (6) EXTERNAL CLEANING - Unscrew the bolts (7) and remove the cover (8) Clean the outside of the storage cylinder with a soft cloth - Remove the seal (9) damped in soapy water.
  • Page 18: End User

    END USER END USER INSTRUCTIONS Refer to the GENERAL SAFETY INFORMATION and PRECAUTIONS section for safety-related information. 23 START-UP 24 TEMPORARY SHUTDOWN The storage cylinder must be put into service for the first To reduce impact on the environment and save energy, time by personnel from the manufacturer’s Technical Assis- before leaving for the weekend or a short break, etc., pro- tance Centre.
  • Page 19 END USER...
  • Page 20 The manufacturer strives to continuously improve all products. Appearance, dimensions, technical specifications, standard equipment and accessories are therefore liable to modification without notice.
