Specification
ADST30S70
Model
1/3" SONY EXview HAD CCD
Pick up Element
Effective Picture Elements
PAL: 1020(H)×596(V), NTSC: 1020(H)×508(V)
(H×V)
700 TV Line
Horizontal Resolution
0.001 Lux
Minimum Illumination
65dB
S/N Ratio
2:1 interface
Scanning System
Internal, Negative sync.
Synchronous System
NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
Auto Electronic Shutter
0.45
Gama Characteristic
30 Meters (with￠5x 36 PCS Infrared LED )
IR Distance
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V(+/-10%)/700mA
Power/Current
2.8-12mm Manual Zoom Lens
Lens
￠131x 93(H)
Dimension (mm)
850
Weight (g)
-20~+60℃ RH95% MAX
Storage Temperature
-10~+50℃ RH95% MAX
Operating Temperature
Packing List
No
Name
1.
Vandalproof IR Dome Camera
ADST30S70
2.
ADST30S70
User Guide
II
Franchiser：
Model
Number
1
1
ADST30S70 Color Camera

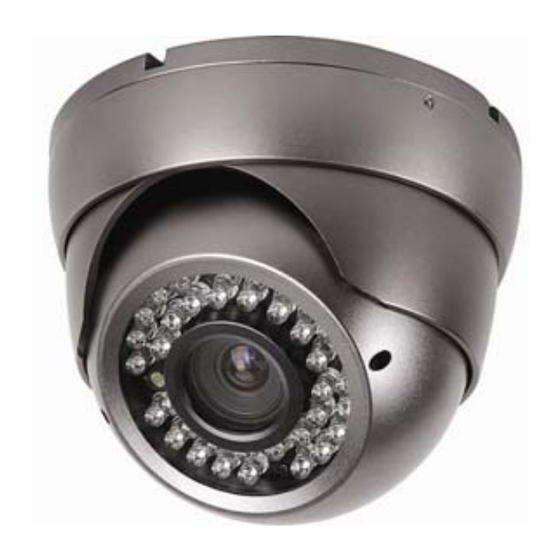

Vandalproof IR Dome Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Advertisement
Related Manuals for ACESEE ADST30S70
Summary of Contents for ACESEE ADST30S70
-
Page 1: Packing List
Specification ADST30S70 Model ADST30S70 Color Camera 1/3" SONY EXview HAD CCD Pick up Element Effective Picture Elements PAL: 1020(H)×596(V), NTSC: 1020(H)×508(V) (H×V) 700 TV Line Horizontal Resolution 0.001 Lux Minimum Illumination 65dB S/N Ratio Vandalproof IR Dome Color Camera 2:1 interface Scanning System Internal, Negative sync. - Page 2 BRIEF OF PRODUCT INTRODUCTION CONNECTING Congratulations on your purchase of this product. * Sensor (CCD) This User Guide suits ADST30S70 product. We adopt the latest SONY technical of sensor and driver. The most at- Adopt SONY 1/3" CCD Sensor. Monitor Video...
