Summary of Contents for PDi NC-120

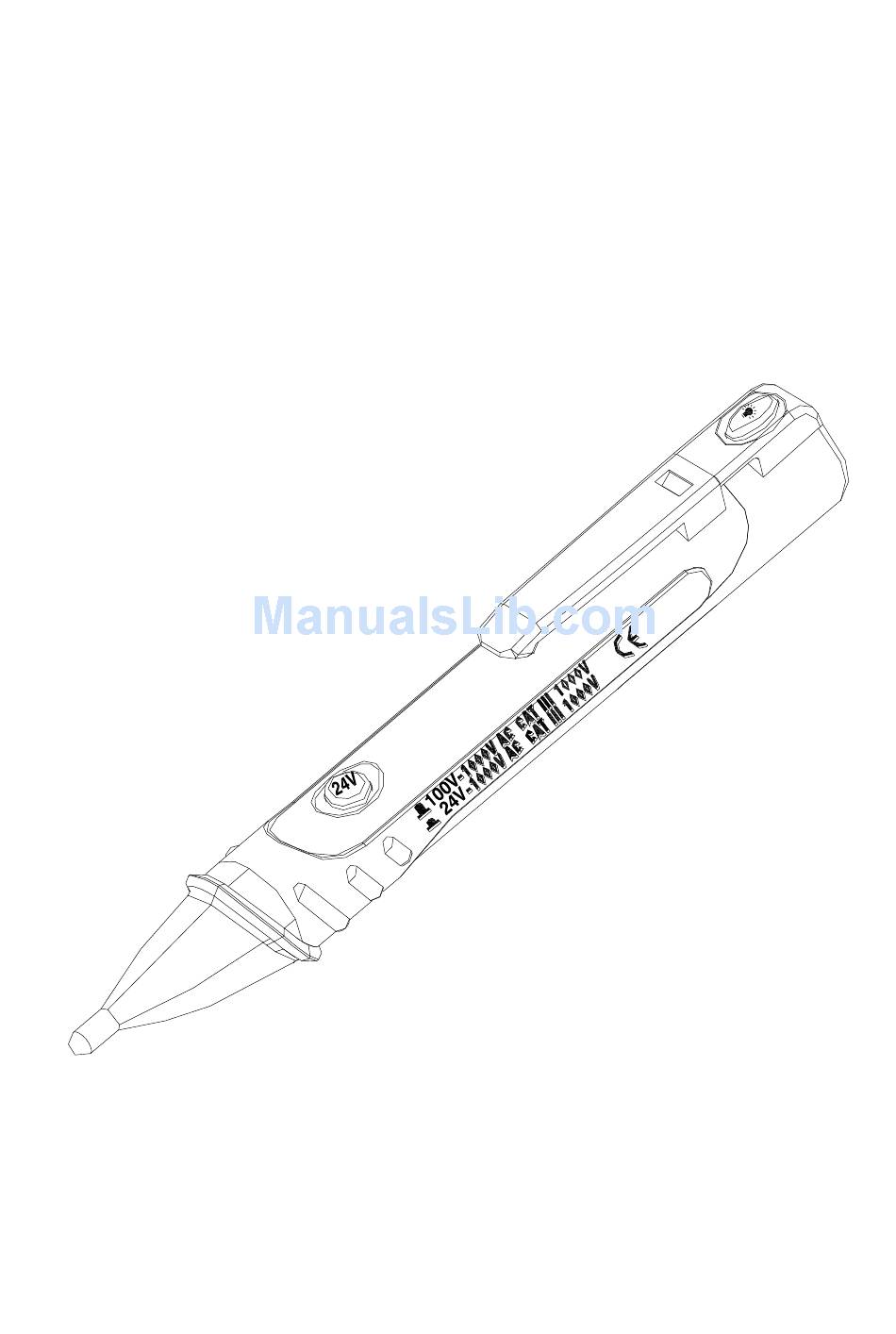

- Page 1 NC-120 NON-CONTACT AC VOLTAGE DETECTOR OPERATIONS MANUAL...
- Page 2 TABLE OF CONTENTS GENERAL APPLICATIONS----------------------------------2 DETECTOR DESCRIPTION----------------------------------2 SAFETY INFORMATION ( Read First)--------------------3 SPECIFICTIONS & ACCURACY----------------------------4 OPERATING INSTRUCTIONS-------------------------------4 BATTERY REPLACEMENT-----------------------------------5 WARRANTY-------------------------------------------------------5...
- Page 3 1. GENERAL APPLICATIONS The NC-120 voltage detector is intended to check for the presence of AC voltage, signaling the user with a glowing red LED and an audible Beep when there is voltage present. The NC-120 has 2 voltage ranges and comes with a built-in flashlight with ON/OFF button 2.
- Page 4 SAFETY INFORMATION ( Read First) Warning To avoid possible electric shock or person injury: Do not use if Tester appears damaged or if the Tester is not operating properly. If in doubt, have the Tester serviced. Do not apply the Tester to more than the rated voltage, as indicated on the Tester.
- Page 5 SPECIFICTIONS & ACCURACY DATA Detection voltage range 100VAC to 1000VAC, 24VAC to 1000VAC Power 3V(AAA x 2) alkaline battery –10°C to 50°C (14°F to 122°F) Operating temperature –10°C to 50°C (14°F to122°F) Storage temperature Humidity 95%(0°C to30°C (32°F to86°F)) Altitude 3000m Contaminated distinction Weight...
- Page 6 NOTE: Remove battery for prolonged storage or extended periods of no use. 7. WARRANTY This PDI product is warrantied to be free from defects in materials and workmanship for a period of one (1) year from the verified date of purchase. During the one year warranty period, PDI will either repair or replace the defective unit, at PDI’s...
