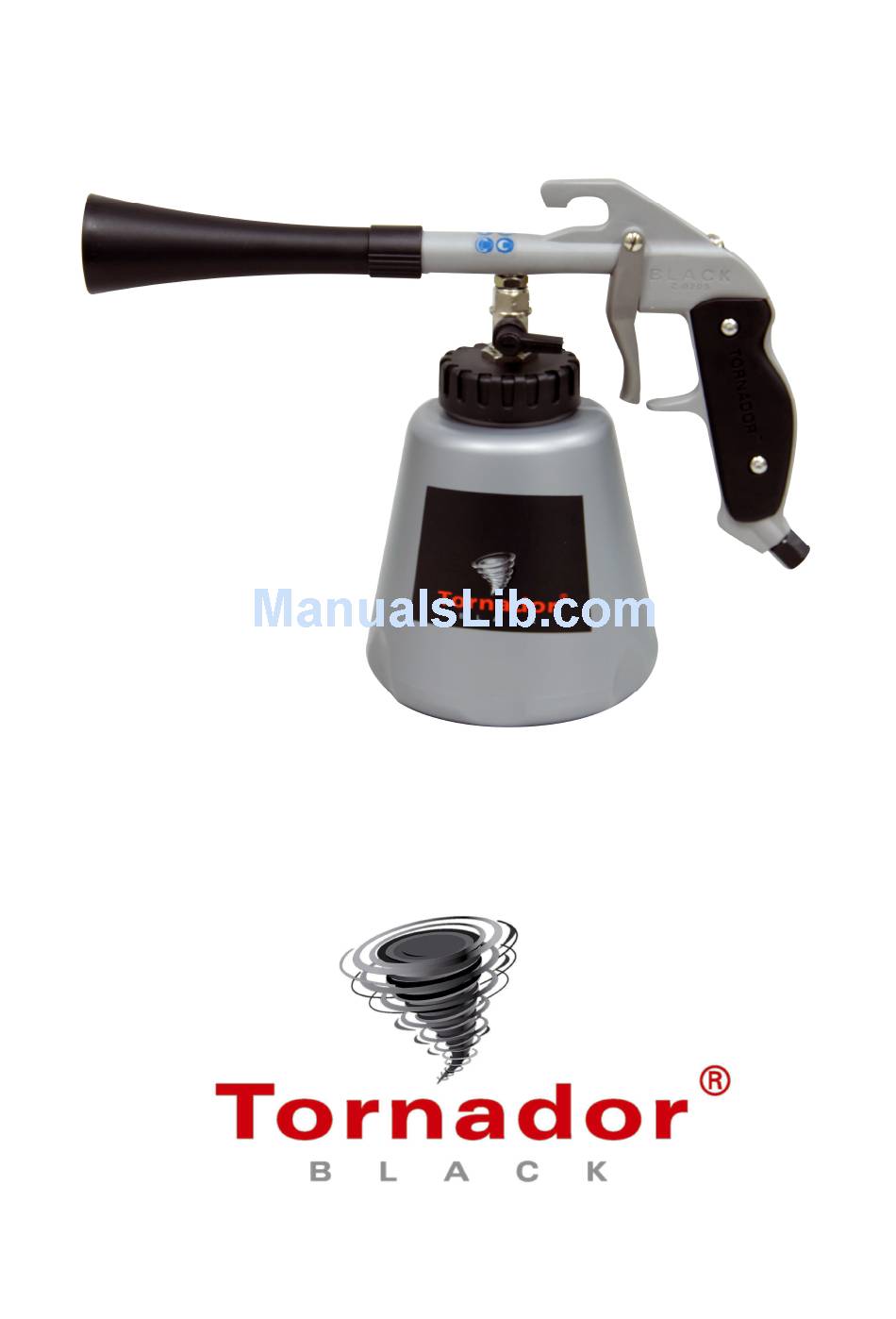

Z-020S Tornador-Gun (Tornador-Black)
Original-Bedienungsanleitung / Original Instruction Manual

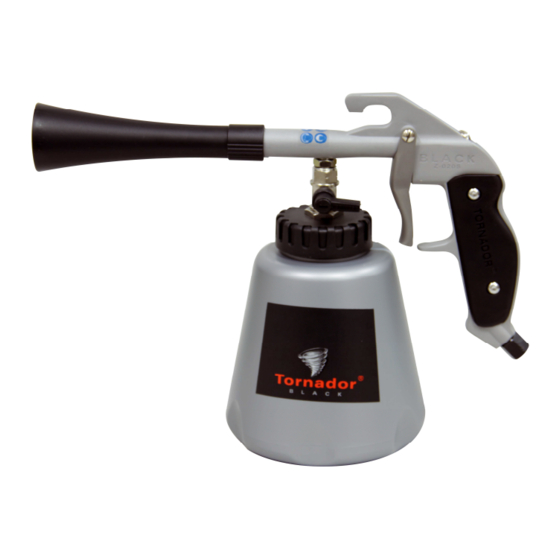

Beispielhafte Abbildung / Exemplary image
BENDEL Werkzeuge GmbH & Co.KG
Wilhelm-Schulze-Str-8-10 ° D-29549 Bad Bevensen
Vers.2016/02
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z-020S and is the answer not in the manual?

Questions and answers

Summary of Contents for Tornador Black Z-020S

  • Page 1 Z-020S Tornador-Gun (Tornador-Black) Original-Bedienungsanleitung / Original Instruction Manual Beispielhafte Abbildung / Exemplary image BENDEL Werkzeuge GmbH & Co.KG Wilhelm-Schulze-Str-8-10 ° D-29549 Bad Bevensen Vers.2016/02...
  • Page 2 Read and understand these instructions before operating the tool. General safety instructions and individual safeness Attention • You need to read, understand and follow the complete instruction manual and the safety briefing BEFORE USE. Afterwards the instruction needs to be kept at a adequate place, accessible for any user.
  • Page 3 operating. • Do not super extend and take care on a balanced position and secure footing to control the tool also in unexpected situations. • Long hairs and loose clothing could tangled up in rotating parts of the device and cause serious hurts.
  • Page 4 For additional safety information consult: • Your employer, union and/or trade association. • Council of the European communities and/or local codes • ,,Safety requirements for hand-held non-electric Power Tools", available from: European committee for standardization, Rue de Stassart 36. 1050 BRÜSSEL, BELGIEN. http://www.cen.eu/cenorm/homepage.htm Maintenance: •...
  • Page 5: Safety Instructions

    You must observe the following points in the interest of your own safety!!! Safety instructions: • The TORNADOR-GUN causes considerable noise pressure. Please wear hearing protection in order to avoid noise which can be damaging to your health. • When working with the TORNADOR-GUN, small parts may be whirled into the air: Wear protective goggles to prevent eye injuries.
  • Page 6 Operating instructions: Remove loose soiling from the surface you wish to clean (brush or vacuum clean) Turn the green rocker lever into the vertical position to activate the (cleaning) liquid in the bottle. Pls. note to insert the cleaning liquid just before application and remove remaining liquid after use to avoid that the hoses and the suction filter get choked by chemical residues.
  • Page 7 A air-volume-control-valve is optional available for your Tornador-Black (Part-No. ZZ-1033, Air-Regulator 1/4"), to control the required liquid. Depending on the model the Tornador-Black could also be equipped with this tool as standard. Air-regulator The Tornador-Black requires a air pressure between 5,5 and 6,5 bar (79-93 psi) to perform to its full potential.
  • Page 8: Technical Data

    BENDEL Werkzeuge GmbH & Co.KG Wilhelm-Schulze-Str.8-10 D-29549 Bad Bevensen declares that the machine Z-020S Tornador-Gun (BLACK) is conform with the legal regulation of the above mentioned directive. Name and address of the person who is authorized to assort the technical documentation: Frank Bendel Wilhelm-Schulze-Str.8-10...
  • Page 9 Ref. Q'ty Ref. Q'ty Part No. Description Part No. Description Tool Tool SPZ020S001 Housing SPZ020S004 Screw SPZ020S007 SPZ020S005 Screw SPZ010008A Screw SPZ020S006 O-Ring ( 9.5x1.5 ) SPZ010009B Trigger (Stainless) SPZ010024A Air Inlet (1/4"PF) SPZ010010 Screw SPZ020008B Nozzle (Matt Finish) SPZ010026 O-Ring (4.47x1.78) SPZ020009A Inner Tube Ass'y...
