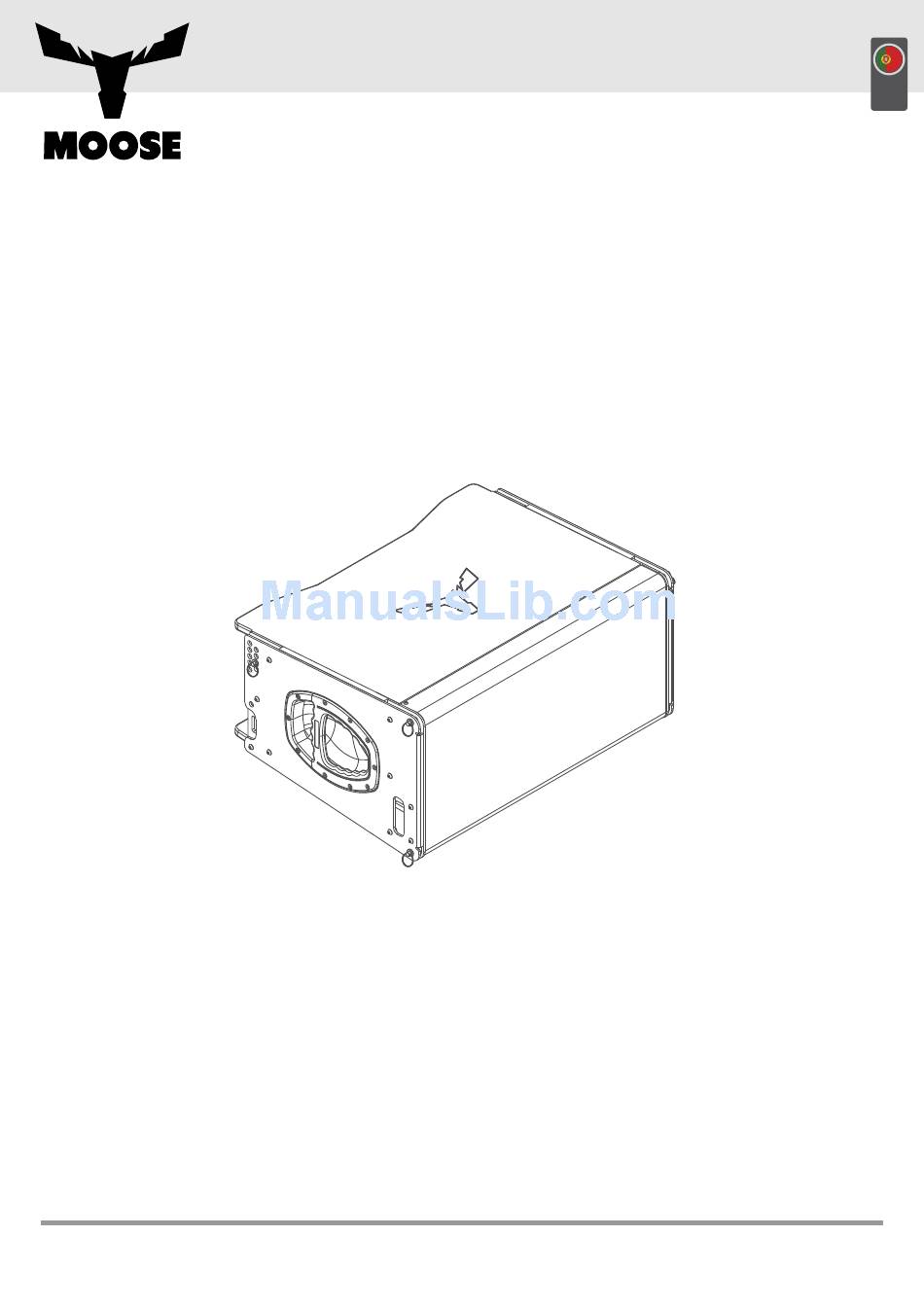

- Page 1 PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL MADE IN PORTUGAL 100% EUROPEAN www.moosesound.com LARRAY - LA12 Line array speaker USER’S MANUAL MAN213_0...
- Page 2 Dear customer, Thank for choosing MOOSE branded products! MOOSE is a brand of professional audio & lighting products, proudly developed and manufactured in PORTUGAL. In order to operate this product in a safe and reliable manner, please follow the instructions in this booklet and before operating the equipment read the instructions carefully and please note the technical information.
- Page 3 To prevent unneeded devices from consuming power in standby mode, disconnect the mains plug. EC DECLARATION OF CONFORMITY The equipment marketed by MOOSE complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TTE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be requested to info@profactor.pt.
-
Page 4: Connections And Controls

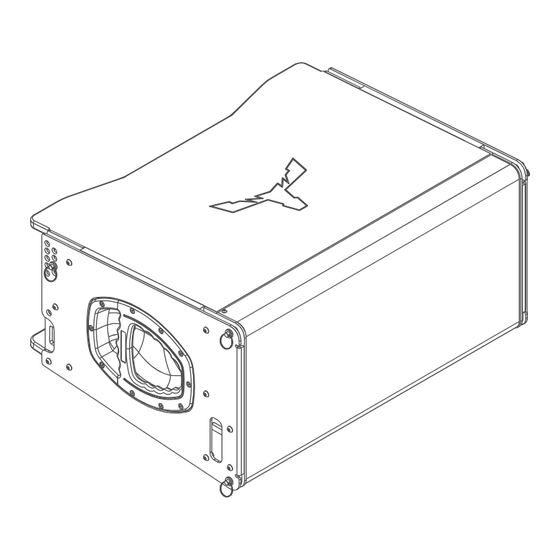

LA12 Passive line array speaker Connections and Controls Please refer to the following scheme and instructions: LA12 Backpanel LA12 Passive Array element PROUDLY DEVELOPED AND 12" MF + 1.4" HF MANUFACTURED IN PORTUGAL 550W IMPEDANCE 8ohm HI HI 100W IMPEDANCE 8ohm INPUT THROUGH... - Page 5 LA12 Passive line array speaker Flying system / Rigging frame Use the FL-LA12 Rigging Frame for flying applications. Up to twelve line array speakers can be simultaneously connected per frame. Adjust the vertical directivity angle according to the installation environment. Shown below is a basic flying system.
- Page 6 LA12 Passive line array speaker Flying system / Rigging frame Inter-connect speaker sections referring to the figures below. Ensure that both speakers are securely connected by fixing the supplied bolts/pins from both left and right sides. Since connection holes for setting the overlap angle are provided at the side rigging parts of the speaker, assemble using the connection holes matching the required overlap angle.
-
Page 7: Dimensional Diagram
LA12 Passive line array speaker Dolly wheel frame Shown next is a basic dolly carrying system. Bolt Bolt DOLLY1012 Bolt Dimensional diagram LARRAY LA12 PROFACTOR S.A., all rights reserved. The technical data and the functional product characteristics can be subject to modifications. - Page 8 PROUDLY DEVELOPED AND MANUFACTURED IN PORTUGAL MOOSE is a brand or PROFACTOR S.A. PROFACTOR S.A Rua do Padrão 52 4440-617 Valongo PORTUGAL Telf.: +351 224 119 160 Fax: +351 224 155 822 info@profactor.pt www.moosesound.com...
