SWC-2013 is a USB 3.0 to 6 bay SATA hard drive docking station. It supports simultaneous access of six 2.5" or
3.5" SATA hard disk for both data read and data write. It is also backward compatible with USB 2.0 and USB 1.1. The
maximum transfer speed of USB 3.0 can reach 5Gbps. The actual transfer speed of SWC-2013 is depends on
HDD/SSD.
supports Flash Copy, Offline Clone, Offline Compare, Online Clone, which is able to copy data
SWC-2013
and system files from Source HDD to Target HDD completely.
data transfer rate, and best data protection.

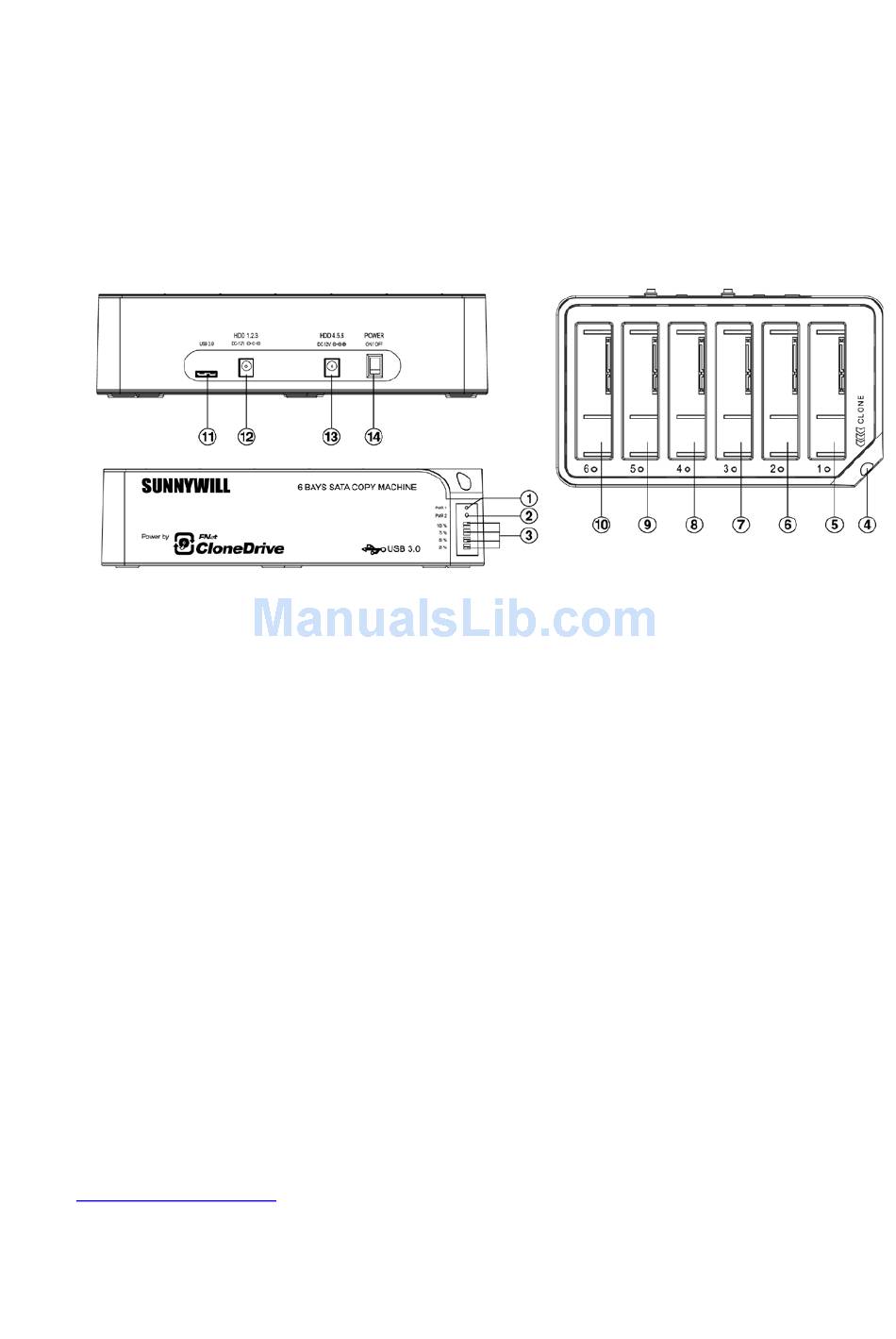

Function Chart：
1、 Power indicator 1
2、 Power indicator 2
3、Clone/Compare processing % indicator
4、Clone/Compare button
5、Bay '1
6、Bay '2
7、Bay '3'
8、Bay '4'
9、Bay '5'
10、Bay '6'
11、USB3.0 input
12、DC input
13、DC input
14、Power switch (ON/OFF)
Function：
• Complies with Gen2i/Gen2m of Serial ATA II Electrical Specification 2.6
• Supports SATA II Asynchronous Signal Recovery (Hot Plug) feature
• Complies with USB 3.0 Specification, USB Mass Storage Class, Bulk-Only Transport Specification
• Supports USB Super-Speed/High-Speed/Full-Speed Operation
• Supports USB2.0/USB3.0 power saving mode
• Supports Multi LUN for USB2.0/USB3.0
• One Touch clone/Compare function.
• Easy to Install and Set-up
• Design for Win2000, WinXP, WinVista, Win7, Win8, MAC 9.2 or later version.
For more detail SPEC and demo video please check our Web site at
http://www.sunnywill.com.tw/index.php/product/6-bay-sata-docking
SWC-2013 Manual
SWC-2013 provides high storage capacity, high
1
Advertisement
Summary of Contents for Sunnywill SWC-2013
- Page 1 SWC-2013 Manual SWC-2013 is a USB 3.0 to 6 bay SATA hard drive docking station. It supports simultaneous access of six 2.5” or 3.5” SATA hard disk for both data read and data write. It is also backward compatible with USB 2.0 and USB 1.1. The maximum transfer speed of USB 3.0 can reach 5Gbps.
- Page 2 HDD to Bay ‘1’; target HDD to Bay ‘2, 3, 4, 5, 6’, and then turn on the power b、Once the Bays indicators are on, that means SWC-2013 is ready for clone. c、Press and hold the clone button for 3 seconds until the indicator light is blinking in blue, press the button...
- Page 3 d、Clone progress indicator flashes and shows the progress (25%, 50%, 75%, 100%). e、Once clone is finished, all progress indicators will light up in blue. f、Turn off power and take out the HDD carefully...
- Page 4 HDD to Bay ‘6’; target HDD to Bay ‘2, 3, 4, 5’, and then turn on the power b、Once the Bays indicators are on, that means SWC-2013 is ready for compare operation. c、Press and hold the clone button for 6 seconds until the indicator light is blinking in Orange, press the button...
- Page 5 Software “CloneDrive” Installation a、Please download the latest version “CloneDrive” from the download page of our official web site http://www.sunnywill.com.tw/index.php/download b 、Please use the “WinRAR” to uncompress the download file and run the “CloneDrivePlus_Setup.exe” to install the CloneDrivePlus, you can get the winrar from the official download web site at http://www.rarlab.com/download.htm...
- Page 6 g、The “CloneDrive” will show the HDD info of each bay. h、User can choose to “clone the external Disk”, which means the HDD in bay 1 will be the source HDD, and all the HDD in other bay are the target HDD.
- Page 7 i、User can choose to “Clone system disk to external disk”, which means the system disk inside the PC would be the source HDD, and all the HDD in bay 1~6 will be the target HDD. j、Just click the “Start” on the right-down side of the program. Or just push the button on the docking station twice to start the operation.
- Page 8 FlashCopy operation: The flash copy is the unique advance technology from Sunnywill Tech. Co. User can enjoy twice fast transfer speed while copy data between HDDs plugged in the 6bay SATA docking station. You can see the video demo on our web site at http://www.sunnywill.com.tw/index.php/product/6-bay-sata-docking...
- Page 9 e、For the first time install, you will need to fill in the S/N # accordingly (you can find the S/N# on the license sticker) f、After the filling the S/N, the “FlashCopy” start to show the HDD info in each bay.
- Page 10 g、Select the file to be copied and drag to the target HDD (The HDD in bay #2 for this case)
- Page 11 h、Press start button in the right down side of the program to start the operation i、FlashCopy will save you wait time for copying the data, with FlashCopy, you can easily manage the data in your HDD.
