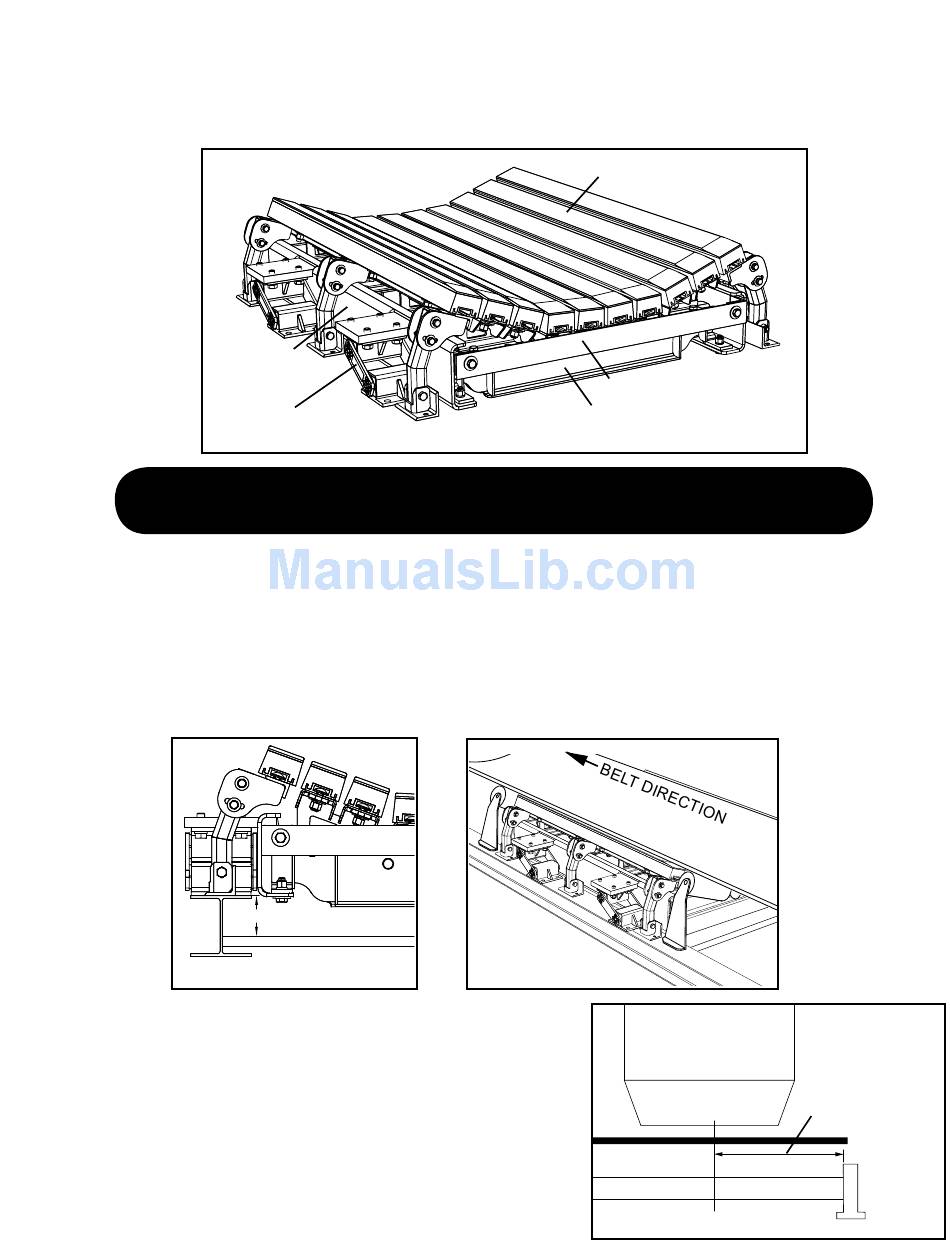

Flexco DRX3000 Installation Instructions

DRX

Installation Instructions

Suspension
Rail
Impact Energy
Absorber
PHYSICALLY LOCK OUT AND TAG THE CONVEYOR AT THE POWER
Caution: Components may be heavy. Use safety approved lifting procedures.
Before Installation: Confirm depth of 5" (125mm) clearance below the top of the conveyor
structure for the impact bed to travel while absorbing the load (Fig. 1). Inspect structure;
confirm CEMA rating. The Flexco DRX3000 Dynamic Impact Bed is designed exclusively to
function with CEMA E rollers. For use with CEMA C or D rollers please call the factory. NOTE:
Installation of an idler is required 1" (25mm) before and 2" (50mm) after a Flexco DRX Dynamic
Impact Bed (Fig. 1a).
FIG. 1
1. Take out the current system. Remove existing impact
idlers or bed from area. Loosen or remove skirting
material for extra space. If available, use two Flex-
Lifters (before and after the load zone) to lift the belt
™
out of the way.
2. Visually locate center of loading zone. Determine the
center of the load zone on one side of the structure and
mark (Fig. 2). Measure to a fixed point on the structure
and then transfer this dimension to the opposite side
structure.
Dynamic Impact Beds
™
for DRX3000 Models
SOURCE BEFORE YOU BEGIN INSTALLATION.
5" (125mm)
Impact Bars
Channel Crossbeam
DRX Dynamic Impact Bed
FIG. 1a
Belt
FIG. 2
Crossbrace
Chute
Structure
C L
Measure from
center line to a
fixed point on
structure; duplicate
on opposite side.
