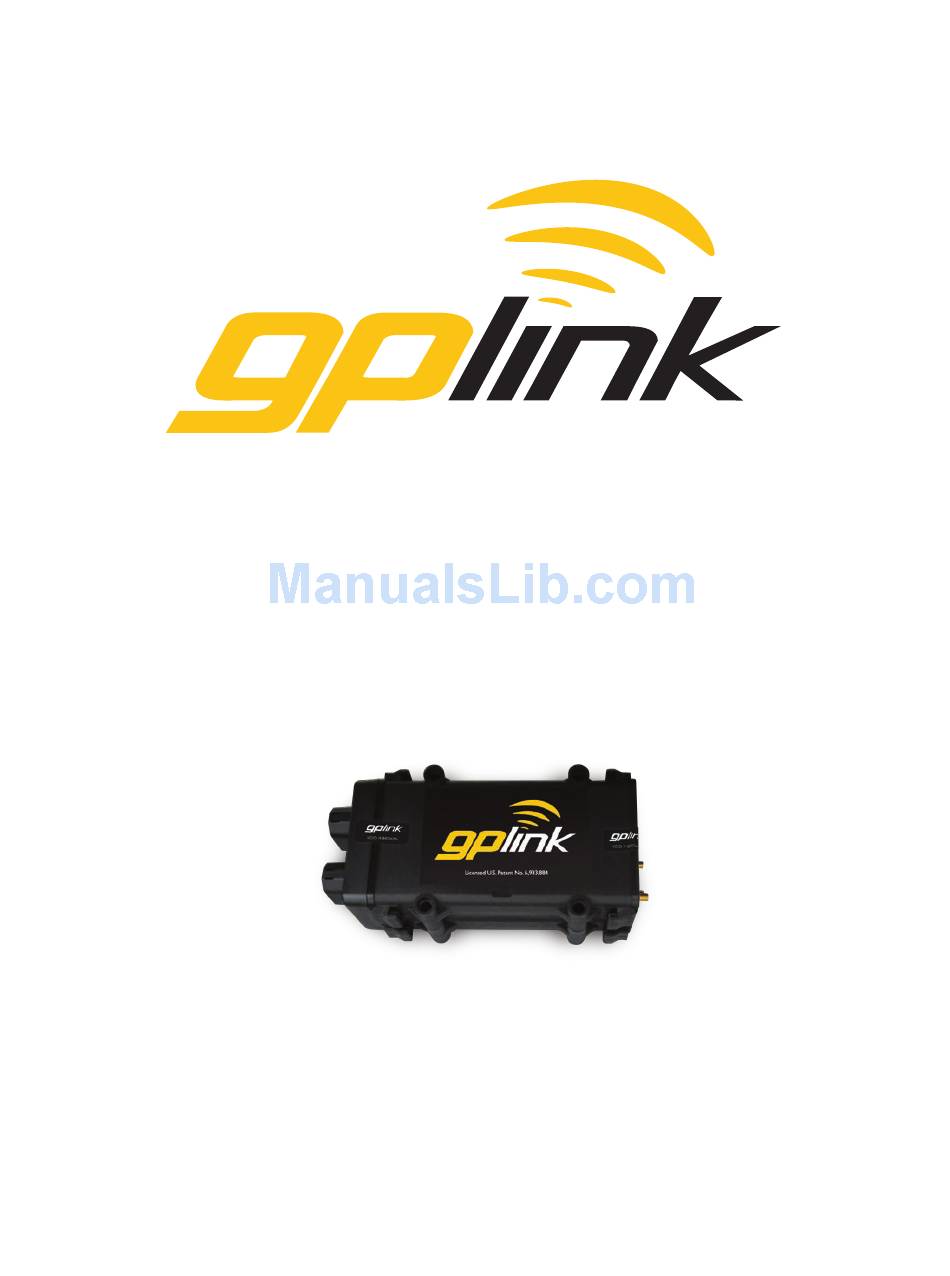

- Page 1 ® Satellite Tracking and Monitoring Solutions Commercial Installation Guide J1939 Contact gplink at +1.252.504.5113 at least 24 hours prior to scheduled installation for activation of units. (48 hours on weekends) www.gplink.com...
- Page 2 3.4.2 External antennas 3.5 Connecting and mounting the MTMs 3.5.1 Connecting antenna cables to primary MTM 3.5.2 Connecting J1939 harness to MTM 3.5.3 Connecting power to the MTM 3.5.4 Connecting the jumper cable between the MTMs 3.5.5 Mount the MTM 3.6 Initial data uplink and testing...
-
Page 3: Replacement Parts
- all while tracking the precise location of a boat anywhere in the world. gplink utilizes dual-band technology with GSM communications and optional Iridium satellite systems for location tracking, monitoring, emergency notification and communication. -
Page 4: System Overview
The gplink MTMs collects information from the engine control module (ECM), GPS and any other attached sensors and then decodes it before transmitting via satellite or GSM/cell to gplink. Once received the data generates alerts and can be viewed via the vessels secured gplink website. -
Page 5: Parts Included In Basic Kit
2.3 Parts included in basic kit Part # Description Quantity MTM (Port) GWD018 Port Monitoring Tracking Module MTM (Starboard) SLV001 Starboard Monitoring Tracking Module HN0771 Port Four-Wire Harness HN0775 Starboard Two-Wire Harness HN0770 Port J19 Three-Wire Harness HN0776 Starboard J19 Three-Wire Harness HN0774 Four-Wire Plug Assembly Interconnector, Primary to Secondary Antenna Options... -
Page 6: Installing Gplink
3.1 Location Locate a suitable mounting location for the MTMs and antennas. The MTMs will need easy access to the J1939 dataline and power from each respective engine and should be securely mounted to a bulkhead or other hard point. Antenna mounting will depend on the type of antenna being used but all will need to have cable runs back to the primary MTM. -
Page 7: Antennas
3.5.2 Connecting J1939 harness to MTM Plug the J1939 harness into the B port on the bottom of the MTM. This plug is keyed, so make sure it is inserted in the proper orientation and that both latches click into place. -
Page 8: Connecting The Jumper Cable Between The Mtms
The Warranty herein is lieu of any other expressed warranty of merchantability or fitness or any other obligation on the part of gplink or the retailer. All implied warranties are limited to the initial period, as stated above. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
