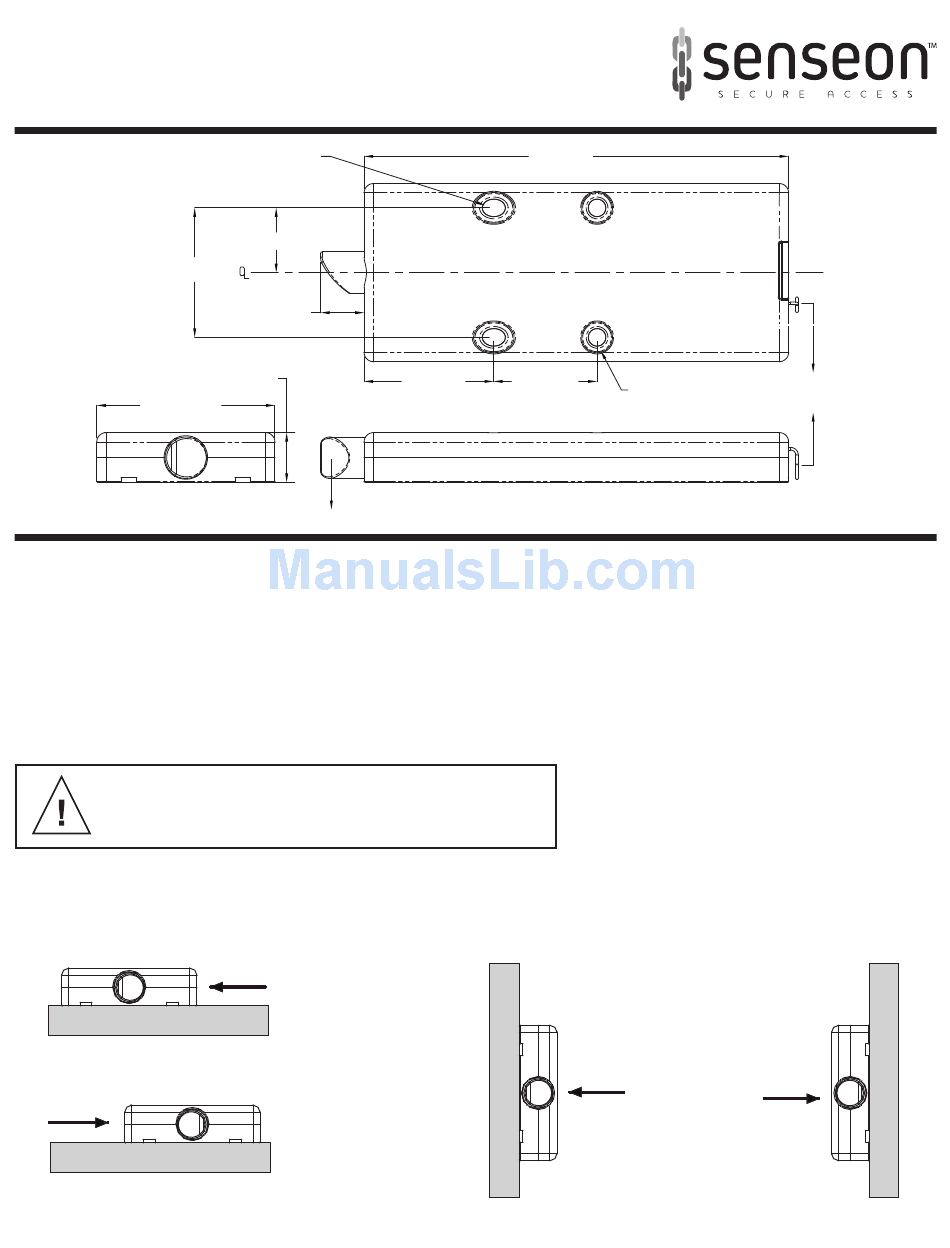

Model 5EL
Electronic Lock for Casework
Sliding Doors.
ø.170x.295 [4.3x7.3] (2X)
1.25 [32]
1.72 [43.7]
Specifications
Lock Finish:
Black (C)
Height:
0.48" [12mm]
Width:
1.72" [44mm]
Length:
3.63" [92mm]
Mounting:
Horizontal or vertical (left or right)
Mounting Hardware:
#6 square drive pan head (included)
WARNING! Before installing the lock, you must have access to
manual override lever or the activation device must be connected.
Otherwise, the lock will not unlock and open.
Mounting Options
Striker orientation based on door closure direction for optional lock mounting positions.
Horizontal Mounting (standard)
LH Horizontal
Door closure
RH Horizontal
.625 [16]
.42 [10.67]
.48 [12.19]
Striker
Door closure
3.63 [92]
1.25 [32]
1.0 [25.4]
Features:
Lock Voltage Supply:
Lock Connector:
Vertical Mounting
LH Vertical
ø.170 [4.3] (2X)
The 5EL is an electronic locking mechanism
with manual override
Withstands up to 150 pounds of force
Works with Senseon Secure Access Control
+6 VDC to +24 VDC
SM08B GHS TB
Door closure
Door closure
1
Manual
Override
Inch/mm
RH Vertical
Advertisement
Summary of Contents for Senseon 5EL
- Page 1 Override 1.72 [43.7] Inch/mm Striker Specifications Lock Finish: Black (C) Features: The 5EL is an electronic locking mechanism with manual override Height: 0.48" [12mm] Withstands up to 150 pounds of force Width: 1.72" [44mm] Works with Senseon Secure Access Control Length: 3.63"...
- Page 2 Model 5EL Electronic Lock for Casework Sliding Doors. Installation Guide -- Horizontal installation Locate critical dimensions and minimum distance for 5EL assembly (Fig 1) Figure 1 1/4" x 5/8" [6 x 16] Pre-drill hole for cable 15/16" [23.5] and for manual override 1/4"...
- Page 3 Pull the striker out of the locking mechanism. Rotate the striker to the desired orientation and reverse the removal process. Leveling striker in case 5EL assembly is below door track (Fig 4) Securing 5EL assembly and optional cosmetic cover (Fig 5) Figure 4...
- Page 4 Model 5EL Electronic Lock for Casework Sliding Doors. Installation Guide -- Horizontal installation (continued) Critical dimensions for optional secondary bottom panel installation (Fig 6) Figure 6 Detail F This option provides a secondary bottom panel cut to fit the interior cabinet.
-
Page 5: Technical Data
2. +6VDC to +24VDC at pin 6 will unlock the Electronic Lock. The Electronic Lock will remain unlocked until +VDC is removed. “LC” Example of lock status connection using LED. Pin 1 maximum rating 30VDC@500mA 3. (*) Used for Senseon Access Control, do not use. - Page 6 Sliding Doors. Packaging Specifications Lock: Black polymer. All components are RoHS compliant. D Pack: One 5EL lock assembly per box. Assembly includes NOTE: Specifications, materials, prices, terms, and 1 each SDEL-01 (showcase/display case lock) delivery are subject to change without notice.
