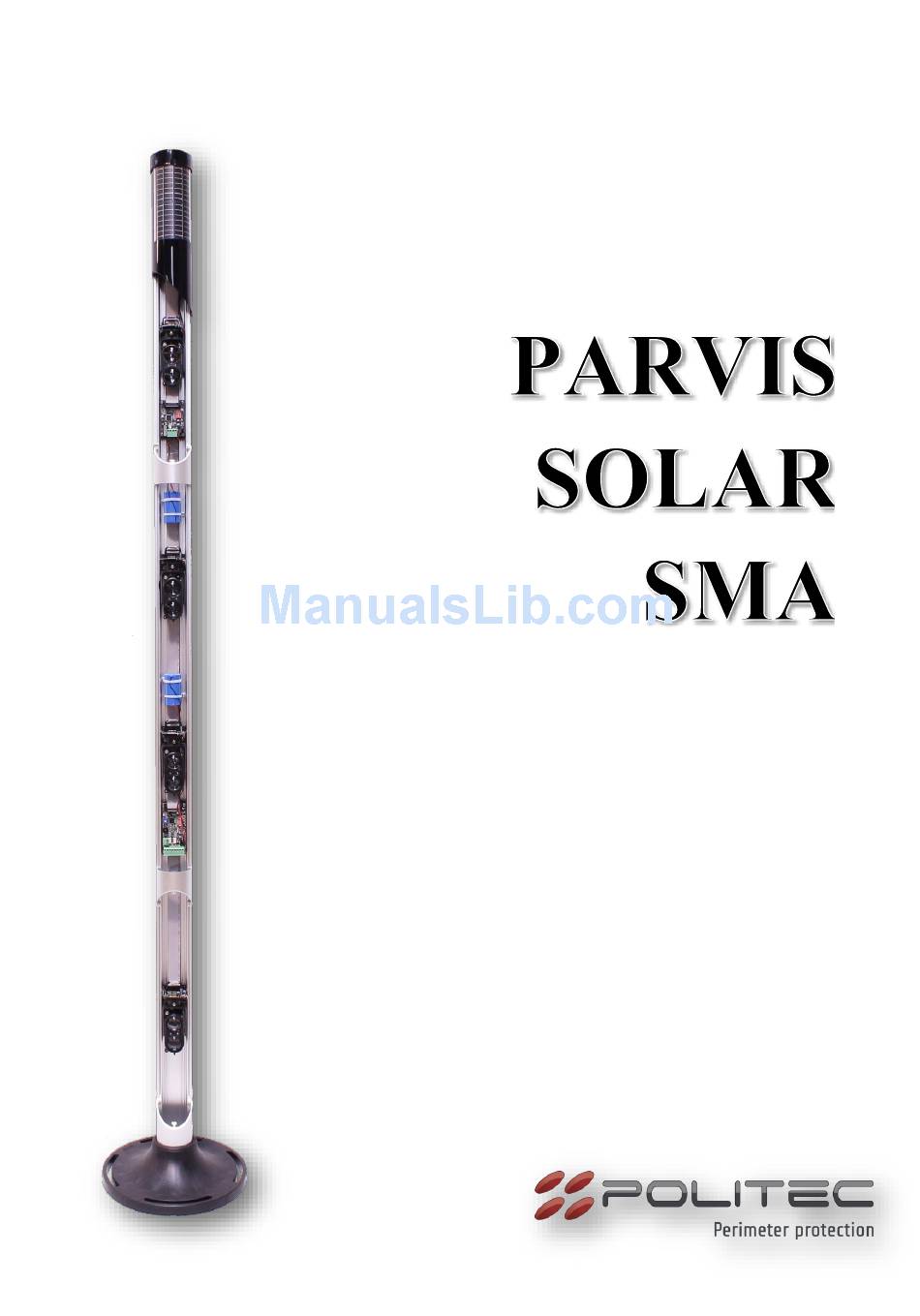

  • Page 1 Technical manual...
  • Page 2  Do not install multiple beams where the transmitter beam can interfere with other receiver beams. It is always better place either transmitter or receivers back to back. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 3 IR pipe Blind cap Lamp Adapter Base Cable Pit Mother board TX Opitical RX/TX Mother board RX Base cover (with cable glands) Rechargeable battery 3.6V Power Board 3.6 V Photovoltaic Panel POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 4 Match the highlighted edge in the slot into other section and fix with screws Insert the third section in the same way and fix with screws. Enlarge the walls to allow to join the last section of the cable pit. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 5 For columns PARVIS is possible to keep the top edge ten centimeters below the level of the ground so that it is visible only the IR tube. This type of placement is possible only when the cable pit is fixed directly into the ground and not in concrete or pavement. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 6 Loosening the insert on the side to correct inclination you get the increase to the correct position Wrong positioning. Correct positioning by adjusting inserts. Example of setting. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 7 Use the central cable gland for the pre-wired light cabling. The base cover fitted with the cable glands Once the cabling is completed the base cover has to be fixed to the base. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 8 Using screws of the cap you can rotate the plastic profile of 120 ° at a time to expose the solar panel as much as possible in the midday sun. FIXING SCREW You can make other minor corrections using the slots FIXING SCREW BASE POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 9 5 INSTALLATION SAMPLES Standard perimeter protection: 4 BEAMS Simple barrier 8 BEAMS Single barrier 8 BEAMS Crossed barrier N.B.: Don’t put all optical RX on the same column POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 10 6 OPTICAL CONFIGURATION OPTICAL TRANSMITTER TAMPER TEST LED TEST BUTTON 1 2 3 4 5 6 1 2 3 4 5 6 NB: The address settings as per default . POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 11 OPTICAL RECEIVER TAMPER SIGNAL TEST LED LOW LED TEST BUTTON 1 2 3 4 5 6 1 2 3 4 5 6 NB: The address settings as per default . POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 12 7 SANDOR WS MOTHER BOARD TX TAMPER DIP SWITCH LED ON BATTERY 3.6V CONNECTOR N.B.: When the motherboard is supplied the LED ON will flash. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 13 SIGNAL LOW (SL) BATTERY CONNECTION AND FOR REMOTE 3,6 V – 19 Ah (AND) ANTIMASK P OUTPUT (AMK) ALARM SUPPLY TAMPER N.B.: When the motherboard is supplied the LED ON will flash. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 14 ON - Anti crawling active. In this condition if the first beam (lower) is interrupted for A. CRAWL more than 2 seconds, it will generate an alarm, independently of its configuration (i.e. AND) TEST Active or disable the TEST POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 15 For proper alignment once installed barriers orient optical groups of the transmitters and receivers each optical groups in the direction of others. Adjusting horizontally through the manual movement, and vertically through the front screws placed above the lenses. Horizontal adjustment Vertical adjustment POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 16 Place the filter in front of the optics TX positioning the two hooks on the pins of the fork optics to effectively search the signal alignment with critical conditions. Simply applying the filter only on the TX, no need to repeat the operation RX. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 17 Start the alignment of the barrier is on activating the transmitter optics TX TEST, pressing the dedicated button for about 3 seconds until the TEST LED turns orange. ORANGE TEST BUTTON POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 18 LED (high-brightness) of alignment, the 'increase in the frequency of blinking of the LEDs and the whistle of the corresponding BUZZER indicate better ALIGNMENT. By a FULL rotation on the horizontal axis of the RECEIVER optics , you make the SCANNING of the optical signal. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 19 For the next 30 seconds the barrier will sound continuously in case of alignment not effective or interruption of a beam; correct the orientation of the columns so that the buzzer emits no longer any sound. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 20 Put TEST optics TX1 and RX1 and proceed with the calibration as previously explained. Put TEST optics TX2 and RX2 and proceed with the calibration as previously explained. N.B.: During the alignment phase of a transmitter the other TX are switched off automatically. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 21  Adjusting the potentiometer clockwise to decrease the alarm delay up to 50ms. In this condition ensures the alarm of a person crossing the barrier running at maximum speed. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 22 CABLES POWER SUPPLY 3.6V BOARD MOTHER BOARD TX/RX N.B.: AT THE CLOSE OF THE COLUMN CONNECT THE SOLAR PANEL TO THE POWER BOARD AS INDICATED. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 23 RIMANE IN ALLARME allineato; o Assicurarsi che non ci siano fonti di luce esterne che interferiscano con la corretta lettura del segnale (fotocellule dei cancelli, altre barriere, infrarossi,…); POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
  • Page 24 Per un allineamento più preciso posizionare un fianco della ASSENZA DI NEBBIA copertura della colonna davanti alle lenti in modo da avere due superfici interposte tra TX e RX per raddoppiare l’attenuazione del fascio. POLITEC s.r.l. | Parvis Solar Sma – Ver. 1.1...
