Summary of Contents for Shinheung Precision STM-7100

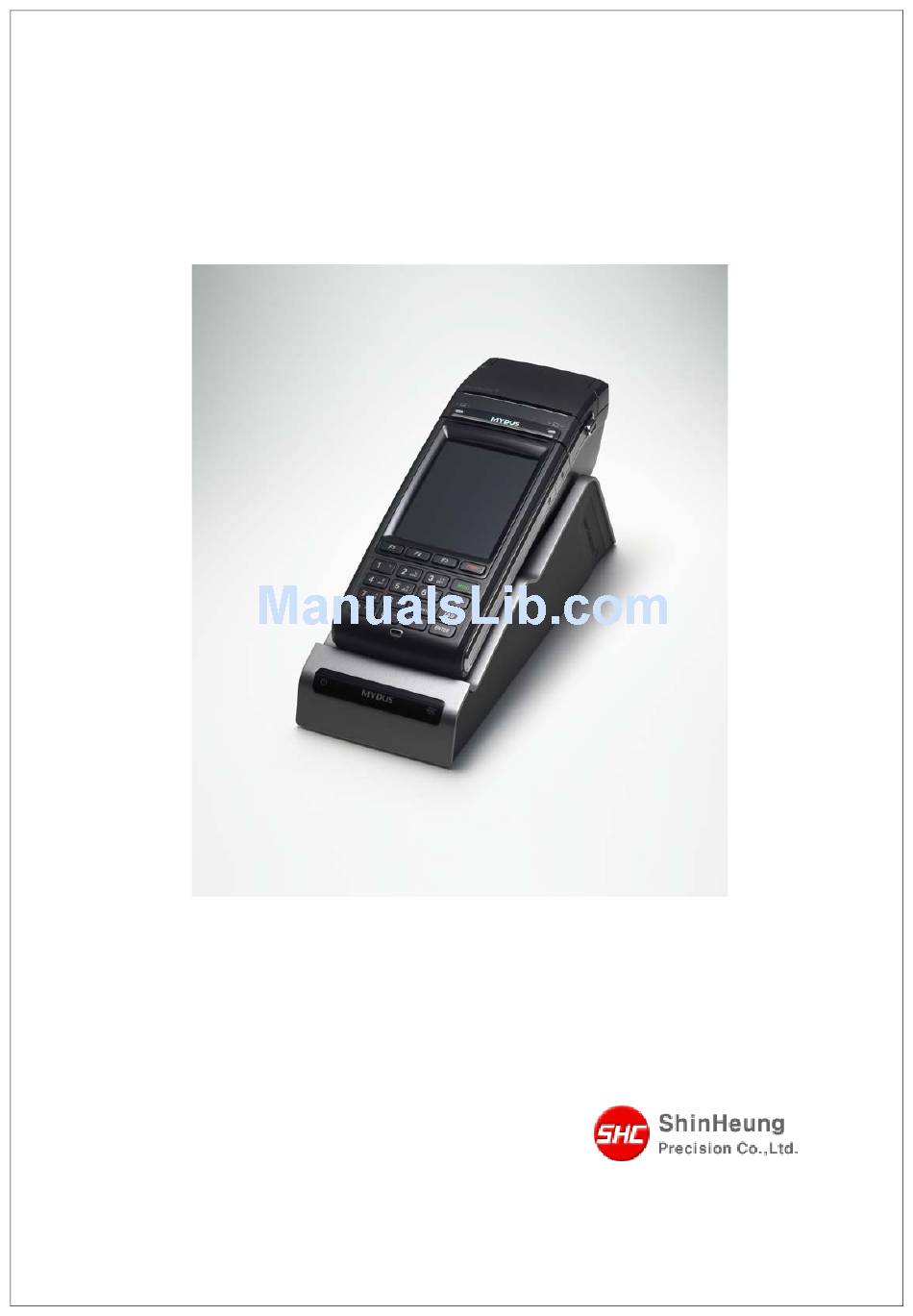

Page 1 ™ ™ Shinheung Precision Co.,Ltd. - 1 -...
Page 2 Shinheung Precision makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
Page 3 Caution ). Fully be aware of User Guide and Safety directions before use your product. 2). Only use included or recommended accessories. Shinheung Precision Company is not responsible for using not authorized accessories. 3). Stay away your eyes from Bar-code reader.
Page 4 Contents 1. Basic Unit -------------------------------------------------------------------------------------------------- 8 Parts Name --------------------------------------------------------------------------------------------------------- 8 Using the Stylus -------------------------------------------------------------------------------------------------- 11 Reset ------------------------------------------------------------------------------------------------------------- 12 2. Getting started ------------------------------------------------------------------------------------------------- 14 Status Icon ---------------------------------------------------------------------------------------------------- 14 Running Programs ------------------------------------------------------------------------------------- 14 Switching Programs----------------------------------------------------------------------------------------- 15 Text input with input panel -------------------------------------------------------------------------------- 16 Using WLAN ------------------------------------------------------------------------------------------------- 17 3.
Page 5 ActiveSync ------------------------------------------------------------------------------------------------------- 45 Reset -------------------------------------------------------------------------------------------------------------- 46 Fundamental Problems --------------------------------------------------------------------------------------- 46 Appendix A. Additional Information------------------------------------------------------------------------- 49 Usage and maintenance ------------------------------------------------------------------------------------- 49 Device Handling ------------------------------------------------------------------------------------------------ 49 Specification------------------------------------------------------------------------------------------------------ 50 - 5 -...
Page 6 1. Basic Unit ---------------------------------------------------------------- 8 Parts Name ---------------------------------------------------- 8 Using the Stylus ------------------------------------------------------- 11 Reset ------------------------------------------------------------------- 12 - 6 -...
Page 7: Parts Name
Introduction This chapter explains you each parts of STM-7100. Parts Name Please find each parts name of STM-7100™ Printer Cap LCD Display IC Card Hole Keypad Front Side Power LED - 7 -...
Page 8 UP Button Down Button Battery Cap Left Side Paper check Window Paper Open Button Scanner Button Feed Button Right Side - 8 -...
Page 9 Hand strap Holder Battery Locker Battery Cover Camera Scanner Speaker Bottom Side DC Connector 24Pin Connector USB port Headset Jack Top side - 9 -...
Page 10: Using Stylus
Using Stylus We provide a stylus for selecting items and entering information on the screen. 3 Functions you can use with Stylus Touch the screen once with the stylus for selecting or open items Drag To move the text or images on the screen, you can drag with the stylus. You can select several items also. Tap and hold To see the available actions for the items, you can tap and hold the item with stylus.
Page 11: Reset
applications will be closed. It is same as the reset of Desktop PC. This is the Reset function. Before HARD RESET, you should try RESET to recover your device. Do not try HARD RESET indiscreetly. HARD RESET does not delete files and documents in FileBox folder. Back up important data to FileBox folder.
Page 12: Getting Started
2. Getting started --------------------------------------------------------------- 14 Status Icon ----------------------------------------------------------------- 14 Running Programs --------------------------------------------------------- 14 Switching Programs----------------------------------------------------------- 15 Text input with input panel --------------------------------------------- 16 Using WLAN ------------------------------------------------------------- 17 - 12 -...
Page 13 Starting This chapter explains you basic functions of STM-7100. When you turn on the unit, basic screen will be displayed. Functions of Icons in the basic screen are explained as bellows. You need to install the ActiveSync program for connecting this unit to the Computers.
Page 14 Number Description ① Start button ② Start Menu ③ Current running program display ④ Connection to the PC (Active Sync)/ WLAN On/Off status ⑤ Hidden menu move ⑥ Time ⑦ keyboard ⑧ Switch the programs ▶ Switch the programs If you want to swich programs that are running, you can use the “Switch the programs” menu. When you select the programs that you want to switch, the selected program comes to the front.
Page 15: Text Input With Input Panel
Select the icon that you want. Selected program appear to the front side ▶ Text input with Input panel To input the information on the certain application, you can use the input panel. You can input the text via Keyboard or writing. If you tab the arrow besides of input panel, you can choose the input way Keyboard input or writing input.
Page 16 ① Select the Keyboard after tab the arrow just besides of input panel. ② Input the Key with stylus on the Keyboard ▶ How to use WLAN From the Start menu, run Internet Connector to connect with network through WLAN. Then you can use internet explorer to browse the internet.
Page 17 3. Connect to the PC -------------------------------------------------------- 19 ActiveSync installation and partnership establishment --------------------- 19 ActiveSync Installation---------------------------------------------------- 19 Driver Installation-------------------------------------------------------- 20 Synchronize the terminal and PC with ActiveSync--------------------------- 22 Synchronize the data-------------------------------------------------------- 24 - 17 -...
Page 18: Connect To The Pc
Connect to the PC Microsoft ActiveSync Installation and establish the partnersip. Using Microsoft ActiveSync, you can synchronize the information on your personal computer with information on your IMP-600. Synchronization compares the data on your PDA with your personal computer and updates both devices with the most recent information To establish a partnership with a PC, you need to install Microsoft ActiveSync on your PC.
Page 19: Driver Installation
④ ActiveSync installation is finished. Please turn on and put the STM7100 unit to the cradle with USB cable connected to the PC. We will start the drive installation. ▶ Driver Installation ① After you connect this unit to the PC, Select List or specific location installation and click Next on the New H/W explorer Wizard.
Page 20 ③ Click Next ④ If you click Finish, driver installation will be finished. Once you finish installing drivers, it is ready to synchronize the unit and PC via ActivSync. - 20 -...
Page 21 ▶ Synchrozing the Unit and PC with ActiveSync ① When you run ActiveSync, you can see the below screen. Click Next. ② Set up the partnership screen, select Yes and click Next. ③ Next screen is for setting up how many PC you want to set the partnership. If you want one computer, please select Yes.
Page 22 ⑤ Establish a partnership is finished. Click Finish. - 22 -...
Page 23: Synchronize The Data
※ You need to change the partnership name when you hard reset the unit. In this case, Select the device name under File> Mobile Device and delete partnership name under File> Delete Partnership. Select Device Delete partnership If you have problems when you install Activesync, Please check the connection setting under File menu on the PC ActiveSync screen..
Page 24 1) Backup/ Restore files with ActiveSync You can back up or restore files, Data base, PIMS information and programs on the RAM to the PC. It can run automatically or manually. ▷ Backup Connect the unit to the PC If you select the Backup/Restore under Tool menu on the Activesync scree. Select ‘Full Backup’...
Page 25 ② Connect the unit to the PC ③ If this program has Setup.exe or Install.exe, double click this file on the PC. And this installation files will be copied to the unit automatically. ▷ *.cab ① Download the programs or insert the program CD to the PC. ②...
Page 26 4. Shell and File Explorer ------------------------------------------------------- 28 Shell ----------------------------------------------- 28 File Explorer----------------------------------------------------------------- 30 - 26 -...
Page 27: Shell And File Explorer
Shell and File Explorer Shell Indication ① Start Button ② Start Menu ③ Running Program ④ Status Icon Keyboard / ⑤ Switch Program menu ▶ Main Screen Main screen has same as Desktop PC ▶ Task Bar - Start : show/ Hide start menu - 27 -...
Page 28 * Program: basic program * Favorites: Saved user selected favorites * Documents : Files in the My Documents * Setting : Setting for STM7100 * Run : Program running - Switch Program : Showing current running program and you can select the programs that you want. - 28 -...
Page 29: File Explorer
- Status Icon : Showing the STM-7100™ device and application status. You can see ( )button on the left side if the number of icons are over the limited number. If you click this button, you can see the icons that are not showing.
Page 30 5. Device setting and Optimizing-------------------------------------------------- 32 Date/Time --------------------------------------------------------------------- 32 Network Setting and Dial up connection----------------------------------------- 33 Display -------------------------------------------------------------------- 33 Brightness--------------------------------------------------------------------- 34 Volume and sound--------------------------------------------------------------- 34 Scanner setting---------------------------------------------------------------- 34 Stylus ------------------------------------------------------------------- 35 System Property---------------------------------------------------------------- 36 Storage management------------------------------------------------------------ 37 Power Property----------------------------------------------------------------- 40 Printer Setting----------------------------------------------------------- 41 MSR Setting-------------------------------------------------------------------- 42 WLAN Power On/Off ---------------------------------------------------------- 42...
Page 31: Device Setting And Optimizing
Device setting and Optimizing Let’s check the control panel. Date Network setting and Dial up Connection - IP Setting for WLAN - 31 -...
Page 32: Display
Connecting through Serial ports Display Wall paper Back light control (can change it manually) (can adjust Backlight option) Brightness - 32 -...
Page 33: Volume And Sound
Volume & Sound - Change Configuration & save (Can change setting of sounds, to hear selected sound) Scanner Can test scanner and fix option for Test - 33 -...
Page 34: Stylus
Stylus When stylus does not operate correctly, you can tap Re-Align to revise the coordinates System Property - 34 -...
Page 35 Basic system information Storage memory & Program memory setting - 35 -...
Page 36: Storage Management
Storage management Storage management (SD/MMC formatting) Format Storage (Filebox Micro SD formatting) WARRNING: When the user format the system, all of users data is to removed To Divide FileBox - 36 -...
Page 37 - 37 -...
Page 38 Option is needless to change. Tap Start to start formating. Check 'Quick format' to format quickly. - 38 -...
Page 39: Power Property
Tap Mount. (Otherwise, you cannot see it in File explorer.) Power Property Can see charging/Battery status and Choosing Sleep conditions - 39 -...
Page 40: Printer Setting
Printer Setting Test Program to check printer status. - 40 -...
Page 41: Wlan Power On/Off
MSR Property Card Reader Test Process Read the magnetic stripe of a card to the end of it. Any direction is OK. The result will be shown each track data WLAN Power On/Off - 41 -...
Page 42 Memory You can use two kinds of memory for IMP-600(Built-in RAM and Micro SD Card). 1) Built-in RAM(Random-Access Memory) RAM is volatile memory divided into Storage memory and Program memory and OS assigns the proportion. But, OS may not control memories in case there's not enough memory space. If you encounter the message Storage or Program memory shortage, follow directions below.
Page 43 Micro SD Card is a small and removable flash memory that allows you to store more data. You can back- up important data and transfer big-sized data to other devices. Micro SD Card is available in many electronic product shops. - 43 -...
Page 44: Trouble Shooting
6. Trouble Shooting--------------------------------------------------------------- 45 ActiveSync ------------------------------------------------------------ 45 Reset ----------------------------------------- 46 Fundamental Problems -------------------------------------------------------- 46 Appendix A. Additional Information------------------------------------------------ 49 Usage and maintenance ------------------------------------------------------ 49 Device Handling ------------------------------------------------------------- 49 Specification------------------------------------------------------------------ 50 - 44 -...
Page 45: Reset
Troubleshooting Check the following guide for the possible cause of a problem and how to correct it. For more detail or other problems, visit our website (www.wjst.co.kr) ActiveSync Check following guide for problems when the device is connecting to PC. Other problems concerning update issues see Help of ActiveSync on your PC or visit Microsoft mobile device web site www.microsoft.com/windows/embedded/ce.net/...
Page 46 data will be saved. Resetting Remove Micro SD card if it is mounted When the power is on, press the ‘RESET’ button with the stylus, then release Notice : Do not reset while you are wearing Ear micro phone, it may cause serious damage to your ear. Information : If the function cannot be restored even if the reset button is pressed, initialize your device.
Page 47: Fundamental Problems
the default setting. Fundamental Problems Q1. The power button is pressed but the power does not turn on The built-in battery is exhausted. Please charge the battery Q2. Even if the built-in battery is completely charged, it discharges after a short period of time. Set the power management ...
Page 48 Q5. I want to check data in Micro SD card. Open ‘File Explorer’ and mount Micro SD card. Then ‘Storage Card’ folder is formed. For more detail, see chapter 2 ‘File Explorer’ - 48 -...
Page 49: Usage And Maintenance
Additional information Usage and Maintenance For prolonged use of device, please follow the instructions below. Device Cleaning  Utilize soft dry cloth for cleaning. Chemical cleaning solution can damage the device external housing Touch screen Cleaning  Before cleaning, turn-off the device. Utilize soft dry cloth with conventional window cleaning liquid to clean.
Page 50: Specification
Always use stylus that provided with the STM7100 device Avoiding Electrical Interference  STM-7100 can be affected by Electrical Interference from other devices. avoid such case, one can change the device location and/or distance of between/among other devices. Avoiding High Temperature ...
Page 51  OS version : Microsoft Windows CE.net 5.0  Memory : 32MB NOR , 64MB NAND (up to 256) / 64MB SDRAM (up to 128)  LCD Screen : 320x240, 3.5” 260K color TFT-LCD with Touch Screen  Wireless Communications: 802.11b/g WLAN, CDMA (Data only) ...
Page 52 Body-worn Operation This device was tested for typical body-worn operations with the back of the device kept 0 cm between the user’s body and the back of the device. To comply with FCC RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s body and the back of the device.
