Sunker ELITE ONE Owner's Manual

Citizens band am mobile transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

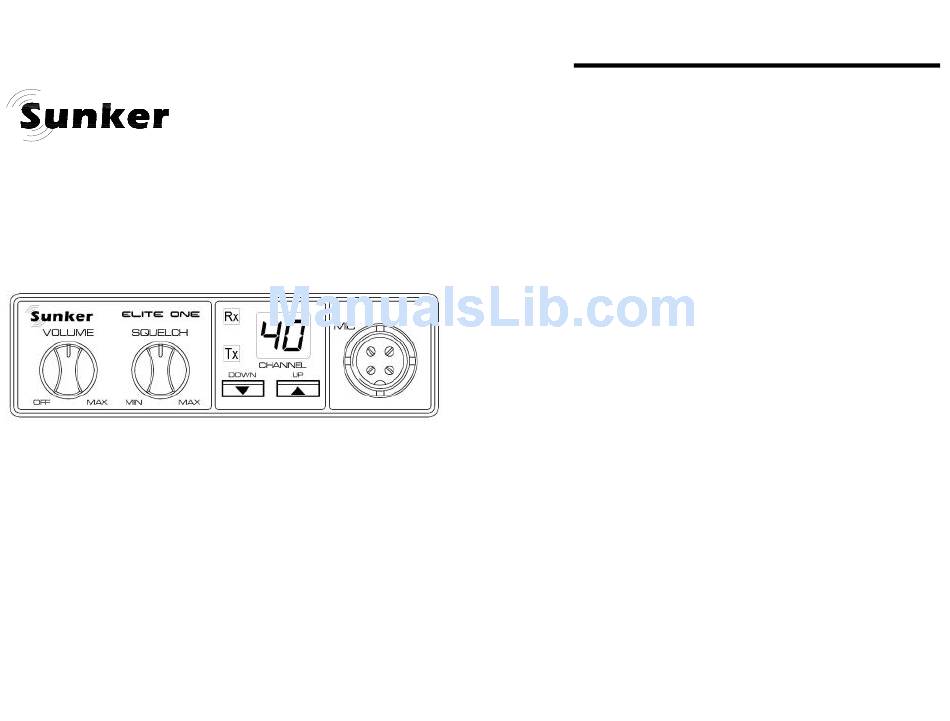

ELITE ONE
CITIZENS BAND
AM Mobile Transceiver
Owner's Manual
CONTENS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting The Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Noise Interference . . . . . . . . . . . . . . . . . . . . . . .
Antenna
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning The Antenna for Optimum SWR . . . . . . . . . . . . .
External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Frequency Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Procedure to Receive And Transmit . . . . . . . . . . . . . . . .
Alternate Microphone And Installation . . . . . . . . . . . . . .
Maintenance And Adjustment . . . . . . . . . . . . . . . . . . . .
A Few Rules That Should Be Obeyed . . . . . . . . . . . . . .
How Your CB Can Serve You . . . . . . . . . . . . . . . . . . . . .
PAGE
10
11
12
13
14
- 1 -
A
2
3
3
3
4
4
5
6
7
7
8
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE ONE and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunker ELITE ONE

  • Page 1 CONTENS ELITE ONE PAGE Specifications ........

  • Page 2: Specifications

    LOCATION Model Plan the location of the transceiver and microphone bracket before starting the installation. ELITE ONE Select a location that is convenient for operation and does not interfere with the drive or Channels passengers in the automobiles, the transceiver is usually mounted the dash panel with the Frequency Range 26.965 ~ 27.405 MHz...

  • Page 3: Installation

    INSTALLATION INSTALLATION IGNITION NOISE INTERFERENCE TUNING THE ANTENNA FOR OPTIMUM S.W.R Use of a mobile receiver at low signal levels is normally limited by the presence of electrical Since there is such a wide variety of a base and mobile antenna, this section will strictly noise.

  • Page 4: Location

    INSTALLATION OPERATION FRONT PANEL If you’ re having difficulties in adjusting your antenna, check the following: All doors must be closed when adjusting the antenna Make sure the antenna base is grounded. Check your coaxial cable routing (it may be pinched when routed into the car) Try a different location in your car (keeping in mind the radiation pattern you wish.) Is the antenna perfectly vertical? Try a different location in your neighborhood.

  • Page 5: Antenna

    OPERATION OPERATION REAR PANEL 7. RX LED: The red LED indicates the unit is in the transmit mode. The green LED indicates the unit is in the receive mode. 8. CHANNEL DISPLAY: The channel display indicates the current selected channel 1.

  • Page 6: Operation

    OPERATION OPERATION PROCEDURE TO RECEIVE AND TRANSMIT FREQUENCY CHART A. MICROPHONE Channel Channel Frequency Channel Channel Frequency The receiver and transmitter are controlled by the push-to-talk switch on the microphone. Press the switch the transmitter is activated, release switch to receive. When transmitting, hold 26.965 MHz 27.215 MHz the microphone two inches from the mouth and speak clearly in a normal voice.
  • Page 7 OPERATION OPERATION ALTERNATE MICROPHONES AND INSTALLATION Before beginning the actual wiring, read carefully the circuit and wiring information provided with the microphone you select. Use the minimum heat required in soldering the connections. Keep the exposed wire lengths to a minimum to avoid shorting when the microphone plug is For best results, the user should select a Condenser type microphone.

  • Page 8: Front Panel

    OPERATION OPERATION MAINTENANCE AND ADJUSTMENT 5. The wires must now be soldered to the pins as indicated in the above wiring tables. If a vise or clamping tool is available it should be used to hold the pin receptacle body during the soldering operation, so that both hands are free to perform the soldering.

  • Page 9: A Few Rules That Should Be Obeyed

    MEMO OPERATION A FEW RULES THAT SHOULD BE OBEYED You are not allowed to carry on a conversation with another station for more than five minutes at a time without taking a one-minute break, to give others a chance to use the channel.
  • Page 10 MEMO Printed in China AT7799010OI - 18 - - 19 -...
