Summary of Contents for auer dFT3

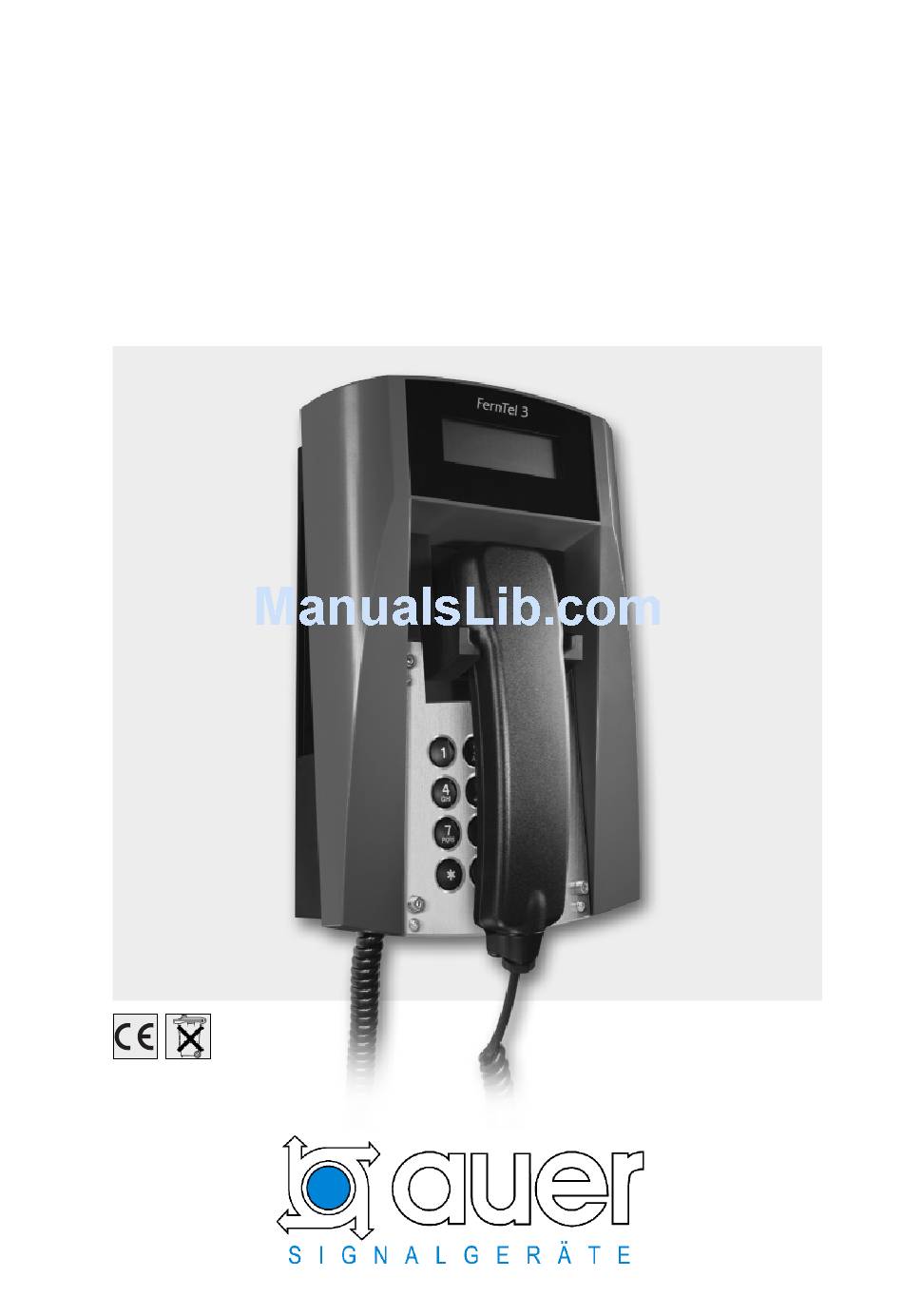

- Page 1 Explosionproof telephone dFT3 Fern Tel 3 Operating manual dFT3 1.1...
-
Page 2: Care And Maintenance
The operating manual is still valid, with the addition of the following items. Operation The dFT3 telephone is used as a stationary device in areas potentially endange- red by an explosive gas or dust atmosphere. Designed for Device Group II and Categories 3G and 3D, it may be operated within zones 2 and 22. - Page 3 – If electrical connections must be carried through in the hazardous area, the enclosu- re must be opened and closed as follows: • Remove voltage from the device • Loosen the fastening screws from the keypad insert • Remove the keypad insert and unfasten the keypad cable dFT3 1.1...
-
Page 4: Technical Specifications
The device then poses a potential threat to the user’s life and can cause the ignition of an explosive atmosphere. CE symbol The dFT3 fulfils the demands of the R&TTE Directive 1995/5/EC and the ATEX directive 94/9/EC. The CE symbol confirms the conformity of the device with the above-mentioned Directives. - Page 5 Dimensions connecting cable / cable entry Cable entries M20 x 1.5 / M12 x 1.5 Blind plugs M20 x 1.5 / M12 x 1.5 Connecting cable diameter 6 – 13 mm Connection potential compensation 1.5 – 4 mm dFT3 1.1...
- Page 6 Storage and transport temperature Housing degree of protection IP 65 Labelling Company J.Auer Fabrik elektr. Maschinen GmbH Type dFT3 20°C ≤ Ta ≤ +55°C IP 65 Ui = 66 Vdc / 90 Vac II 3 G Ex nAnL IIC T5 / II 3 D Ex tD A22 IP65 T80°C...
- Page 7 Hersteller / Anschrift J.Auer GmbH Manufacturer / Factory address Perfektastr. 102 Fabricant / Adresse A-1230 Wien Geschäftsfrührer: Dipl. Ing. Michael Auer Managing director / Direction Gérant / Gerente: ............(Name, Vorname / name, prename / apellido, nombre) Wien 22.04.2009 ........
-
Page 8: Operating Manual
Weatherproof telephone wFT3 FernTel 3 Version 21 keys with display Version 16 keys Version without keys, without display without display Tabletop unit Operating manual dFT3 1.1... - Page 9 Programming..................... 13 Telephone book ..................14 Speed code dialling ..................14 Settings....................... 15 Ringing signal..................15 Volume....................15 Dialling mode ..................15 PBX....................... 15 As-delivered condition ................15 Menu..................... 15 Restrictions ....................15 Activate ....................15 None ....................15 dFT3 1.1...
- Page 10 Set dialling mode..................23 Restore to as-delivered condition.............. 23 Signalling tones during programming........... 23 General information ..................24 Service......................24 Care and maintenance ..................24 Warnings and security information ..............24 Technical Data ....................25 EC Declaration of Conformity ................ 26 dFT3 1.1...
-
Page 11: General Operating Notes
9. Entering your personal identification number (PIN) you may partly or completely restrict functions and settings. Forgetting your PIN can be compared to losing a key. If you have forgotten your PIN, please contact our technical support service. dFT3 1.1... -
Page 12: Device Overview / Dimensions
Device overview / Dimensions (mm / inch) Device versions The telephone FernTel 3 is available in three versions. - with keypad (21 keys) and display - with keypad (16 keys), without display - without keypad, without display (optionally with a device-internal programming keypad) dFT3 1.1... -
Page 13: Controls And Indicators
Enquiry key ________________________ Number keys Display The two uppermost lines display numbers or the menu settings. The lower line displays pictograms that correspond to the functions. Last number redial Direct dialling Dual-tone multifrequency (DTMF) Pulse dialling Menu operation dFT3 1.1... -
Page 14: Version With Keypad (16 Keys), Without Display
Version with keypad (16 keys), without display Keypad Amplified listening in receiver Disconnect Last number redial Enquiry key ________________________ Number keys Version without keypad, without display Optional, device-internal programming keypad (12 keys) dFT3 1.1... -
Page 15: As-Delivered Condition
B) with keypad (16 keys), without display C) without keypad, without display (optionally with a device-internal programming keypad) Using the programming menu, you may reset this as-delivered condition at any time. The PIN and the menu language, however, will not be altered by resetting. dFT3 1.1... -
Page 16: Mounting And Installing
Pull the telephone line through the cable gland (4) and connect it with terminal (5) TCP/La - TCP/Lb (TCP : Terminal Connection Point). Use cables with a sheath diameter of 5 to 9 mm only, otherwise the IP65 degree of protection can not be guaranteed. dFT3 1.1... -
Page 17: Table Version
(12). Plug the ribbon cable onto the pin contact strip (7) of the keypad plate. Tighten the keypad plate (6) using four screws (8). Lay the telephone cord according to the instructions, in order to prevent accidents. dFT3 1.1... -
Page 18: Mounting The Sling Holder
IP degree of protection will not be reached. Remove the keypad plate, install the cable gland and connect the secondary sounder to the terminals W and W1. After all the connections are made, screw the keypad plate onto the housing again, using 4 screws (8). dFT3 1.1... -
Page 19: Operation And Programming
If you press the key, the number associated with the displayed name is dialled. („Telephone book“ appears in the display only if the telephone book contains one or more entries.) dFT3 1.1... -
Page 20: Programming
„allow“ by pressing the C key. You will be prompted to enter the PIN (factory setting 0000). Programming is now allowed, and the complete Main menu is at your disposal, including the following items: Telephone book Speed code dialling A Settings dFT3 1.1... -
Page 21: Telephone Book
The displayed telephone book entry is deleted. delete all All entries of the telephone book are deleted. Speed code dialling A Under Speed code dialling you can program a number to be dialled automatically when the A key is pressed. dFT3 1.1... -
Page 22: Settings
Activate Choose from none The telephone is not restricted. Telephone book Numbers can be dialled from the telephone book only. Direct call When pressed, all keys except the Disconnect key and the key dial the direct call number. dFT3 1.1... -
Page 23: Direct Call
Significance Acknowledgement tone 1 long tone Completion of a correctly performed procedure. Error tone 4 short tones An error occurred within a procedure. The procedure is cancelled. PIN tone 1 short tone sequence Prompt to enter the PIN. dFT3 1.1... -
Page 24: Version With Keypad (16 Keys), Without Display
In order to program the telephone, you have to allow modifications of the settings. Allow settings modifications Lift the handset. Press the * and # keys simultaneously. Press the # and 0 keys consecutively. Enter the PIN Press the key to allow settings modifications. Replace the handset. (PIN) dFT3 1.1... -
Page 25: Restrict Settings Modifications
Set the code for the desired number of levels, or steps. Press the key to store the setting. Replace the handset. Code / Key Amplified listening in receiver, levels Comment 1 level, 6 dB 2 levels, 6 dB, 12 dB As-delivered condition (1, 2) dFT3 1.1... -
Page 26: Set Dialling Mode
Replace the handset. (0…9, R) Delete the exchange code Lift the handset. Press the * and # keys simultaneously. Press key 0. Press the # key. Press the key to delete. Replace the handset. dFT3 1.1... -
Page 27: Program The Enquiry Key (Flash Time)
Restore to as-delivered condition Lift the handset. Press the * and # keys simultaneously. Press key 3. Press the key to reset the as-delivered condition. Replace the handset. Upon „Resetting to the as-delivered condition“ the PIN is not reset to 0000. dFT3 1.1... -
Page 28: Change Personal Identification Number (Pin)
Significance Acknowledgement tone 1 long tone Completion of a correctly performed procedure. Error tone 4 short tones An error occurred within a procedure. The procedure is cancelled. PIN tone 1 short tone sequence Prompt to enter the PIN. dFT3 1.1... -
Page 29: Version Without Keypad And Without Display
Press the * key. Press key 5 (the ringing sound is played back with the selected volume setting). Set the desired volume using the keys 1 to 6. Press the # key to store the selected volume. Replace the handset. (1…6) dFT3 1.1... -
Page 30: Adjust The Ringing Melody
Press the # key to reset the as-delivered condition. Replace the handset. Signalling tones during programming Tone Number Significance Acknowledgement tone 1 long tone Completion of a correctly performed procedure. Error tone 4 short tones An error occurred within a procedure. The procedure is cancelled. dFT3 1.1... -
Page 31: General Information
General information Service You have bought a modern J. Auer product subject to meticulous quality control. If any questions regarding the telephone, or malfunctions should occur – even after the guarantee has expired - please contact J. Auer. Please have the type denomination and product number (to be found on the nameplate) ready. -
Page 32: Technical Data
Power cable TCP/La – TCP/Lb (TCP : Terminal Connection Point) Secondary sounder W / W1 Environmental conditions without LCD with LCD Ambient operating temp. -25°C...+55°C -10°C...+50°C Transport and storage temp. -25°C...+70°C -20°C...+60°C Degree of protection acc. to IEC60529 IP65 dFT3 1.1... -
Page 33: Ec Declaration Of Conformity
Therefore, it must not be disposed of together with unsorted municipal waste (household rubbish). In order to protect the environment please use public collecting points for the disposal of electric and electronic devices carrying this symbol. dFT3 1.1... - Page 34 Subject to change without notice cations Perfektastr. 102 · A-1230 Vienna Phone 0043 1 813 82 20 · Telefax 0043 1 815 99 54 http://www.auer-signal.com · e-mail: office@auer-signal.com...
