- Page 1 StreamLine TV User Guide Hearing Systems...
-
Page 2: Table Of Contents
Content Before you start Included in delivery Components Getting started Positioning Connecting to power supply Connecting to your electronic device Pairing hearing instruments Daily use Using the transmitter Power and TV indicator ... -
Page 3: Table Of Contents
Important safety information Personal safety Product safety Important information Explanation of symbols Maintenance and care Troubleshooting Technical information Disposal information Conformance information ... -
Page 4: Before You Start
Before you start This device is intended as a wireless transmitter of sound from a TV or from other electronic devices to hearing instruments. It is intended to be used by children (> 36 months) and adults together with their hearing instruments. - Page 5 Compatible hearing instruments StreamLine TV works with our specific wireless hearing instruments. Your Hearing Care Professional will advise you on the compatible models.
-
Page 6: Included In Delivery
Included in delivery ➊ StreamLine TV ➋ USB power cable and power plug with country‑specific adapter ➌ TOSLINK cable ➍ RCA (cinch) cable ➎ SCART adapter ➏ Mini jack adapter... - Page 7 ➋ ➏...
-
Page 8: Components
Components ➊ TV indicator ➋ Power indicator ➌ Setup button ➍ Power connection ➎ RCA connections (left and right) ➏ TOSLINK connections (in and out) ➐ Mode button (only for Hearing Care Professionals) - Page 9 ➋ ➌...
-
Page 10: Getting Started
Getting started Positioning Position the transmitter close to your electronic device, so that they can be easily connected with cables. For best connection to your hearing instruments, position the transmitter horizontally and in direct line of sight with your hearing instruments. -
Page 11: Connecting To Power Supply
Connecting to power supply Only use the USB power cable and power plug that came with the transmitter. Connect the micro USB side of the power cable to the power connection of ➊ the transmitter Connect the power plug to ➋... - Page 12 ➌ Observe the indicators Description ‑ The transmitter is starting up. If after a few seconds, both indicators flash blue, the transmitter is on but not paired to any hearing instrument. Refer to the section "Pairing hearing instruments". other Refer to the section "Power and TV indicator".
-
Page 13: Connecting To Your Electronic Device
Connecting to your electronic device You can connect the transmitter to your electronic device with the TOSLINK cable or with the RCA cable. We recommend using the TOSLINK connection. Use the supplied cables and adapters. - Page 14 We recommend to connect either the TOSLINK input or the RCA input of the transmitter. If both inputs of the transmitter are used, the electronic device that is connected via TOSLINK cable has the higher priority and only the audio signal of this device will be streamed to your hearing instruments.
- Page 15 TOSLINK connection Before connecting the cable, remove the protection caps from the TOSLINK cable plugs. Plug the cable into the TOSLINK input of your transmitter and into the TOSLINK (optical audio) output of your electronic device. To prevent the TOSLINK cable from breaking, do not forcefully bend it.
- Page 16 Further information: ● Refer to the electronic device's manual: Set the output format of the electronic device to either PCM (pulse‑code modulation) or Dolby Digital*. ® ● The TOSLINK output of your transmitter may be used to connect further TOSLINK devices such as external Dolby decoders or surround sound systems.
- Page 17 RCA connection Plug the cable into the RCA connections of your transmitter. Plug the other side of the cable into the RCA output of the electronic device. Or via adapter into the SCART or mini jack output of the electronic device.
- Page 18 Further information: ● Without adapter: The RCA output of the electronic device is typically marked "L‑R AUDIO OUT" and found on the back or control panel. ● With SCART adapter: The audio signal can depend on the source selected on the electronic device. For example some TVs will only make TV sound available on the SCART output, but not the sound from a connected DVD player.
- Page 19 if the headphone output is used. So that sound is only heard through the hearing instruments. ● Refer to the electronic device's manual: Set the output format of the electronic device to analog audio or uncompressed audio.
-
Page 20: Pairing Hearing Instruments
Pairing hearing instruments Your hearing instruments need to be paired once with the transmitter. After that, the pairing is saved in the hearing instruments and remembered each time they are turned on. Ensure that the transmitter is connected to the power supply. - Page 21 Place both hearing instruments close to, or on top of the transmitter. The pairing process starts automatically. Observe the indicators: Description If pairing is completed, both indicators are blue for about 30 seconds. other Refer to the section "Power and TV indicator".
- Page 22 Multiple users: ● This transmitter can be paired to multiple hearing instruments. All users will be able to hear the same sound. ● To clear the pairings of one current user, first reset the transmitter to factory settings. This will clear the pairings of all users.
-
Page 23: Daily Use
Daily use Using the transmitter Function Description Start audio Switch your hearing instruments to the streaming transmitter mode or change to the dedicated hearing program. Stop audio Quit transmitter mode or switch to any other streaming hearing program in your hearing instruments. Adjust Use the controls of your hearing instruments. - Page 24 Further information: ● Depending on your hearing instruments' type and configuration, you can change their mode or hearing program with the hearing instruments' controls (e. g. push button), or with a smartphone app, or with a dedicated remote control. Refer to the hearing instruments' user guide for details.
- Page 25 ● The volume of the streamed audio signal is normally not affected by volume adjustments from the TV remote control. ● Your Hearing Care Professional can adjust the mix of the audio streaming signal with surrounding sounds according to your preference.
-
Page 26: Power And Tv Indicator

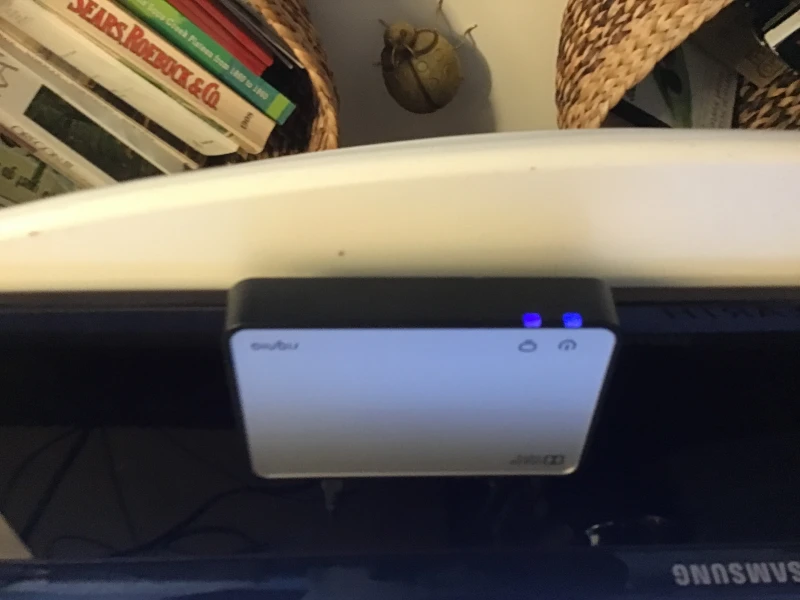

Power and TV indicator Both power indicator and TV indicator show the current status of the transmitter. Description ‑ Power indicator is white: The transmitter is starting up. Both indicators flash blue: Power is on. The transmitter is not paired to any hearing instrument. - Page 27 Description Both indicators are blue for 30 seconds: Pairing is complete. ‑ Power indicator is red: Power is on. The transmitter is not receiving an audio signal. Refer to the section "Troubleshooting". Both indicators are green: The transmitter is receiving an audio signal via the RCA connection.
- Page 28 Description Power indicator is green, TV indicator flashes green: The transmitter is not receiving an audio signal via the RCA connection or the volume is too low. Power indicator is green, TV indicator is blue: The transmitter has a valid TOSLINK connection to your electronic device regardless of whether an audio signal is played or not.
- Page 29 Description Power indicator is green, TV indicator flashes red: The signal format is not supported. Refer to the section "Connecting to your electronic device". Both indicators flash red: Error. Contact your Hearing Care Professional.
-
Page 30: Important Safety Information
Important safety information Personal safety WARNING Choking hazard! Your device contains small parts which can be swallowed. Keep hearing instruments, batteries and accessories out of reach of children and mentally disabled persons. If parts have been swallowed consult a physician or hospital immediately. - Page 31 WARNING Risk of electrical shock! Do not use obviously damaged devices and return them to point of sale. WARNING Note that any unauthorized changes to the product may cause damage to the product or cause injury. Use only approved parts and accessories. Ask your Hearing Care Professional for support.
- Page 32 WARNING Risk of electric shock! Connect audio input only to a device conforming to IEC 60065, the IEC‑Norm for audio, video and other electronic devices. WARNING This device may interfere with measuring and electronic equipment. Do not use your device on airplanes or areas where sensitive or life‑supporting electronic equipment is used.
-
Page 33: Product Safety
WARNING Risk of explosion! Do not use your device in explosive atmospheres (e. g. in mining areas). Product safety NOTICE Protect your devices from extreme heat. Do not expose them to direct sunlight. NOTICE Protect your devices from high humidity. - Page 34 NOTICE Do not dry your devices in the microwave oven. NOTICE Different types of strong radiation, e. g. during X‑ray or MRI head examinations, may damage devices. Do not use the devices during these or similar procedures. Weaker radiation, e. g. from radio equipment or airport security, does not damage the devices.
- Page 35 In some countries restrictions for the usage of wireless equipment exist. Refer to local authorities for further information. NOTICE Your devices are designed to comply with international standards on electromagnetic compatibility but interference with nearby electronic devices could occur. In this case, move away from the source of interference.
-
Page 36: Important Information
Important information Explanation of symbols Symbols used in this document Points out a situation that could lead to serious, moderate, or minor injuries. Indicates possible property damage. Advice and tips on how to handle your device better. - Page 37 Symbols on the device or packaging CE compliance label, confirms compliance with certain European Directives, refer to section "Conformance information". EMC and radio communications compliance label Australia, refer to section "Conformance information". Indicates the legal manufacturer of the device. Do not dispose of the device with general domestic waste.
- Page 38 Symbols on the device or packaging Read and follow the instructions in the user guide. Manufactured under licence from Dolby Laboratories.
-
Page 39: Maintenance And Care
Maintenance and care NOTICE Do not put your device in water! Do not clean your device with alcohol or benzine. Clean the device as necessary with a soft tissue. Avoid abrasive cleaning liquids with additives such as citric acids, ammonia, etc. - Page 40 Resetting to factory settings To reset the transmitter to factory settings: Press and hold the setup button for more than 5 seconds. All pairings are deleted. Both indicators flash blue.
-
Page 41: Troubleshooting
Troubleshooting If audio streaming is not working, check the following tables. TOSLINK cable is connected Troubleshooting The signal format is not supported. Refer to the section "Connecting to your electronic device". No audio signal is available. For example, pause or mute is pressed on the electronic device. Your hearing instruments are out of operating distance. - Page 42 Troubleshooting Your hearing instruments have not been paired with the transmitter, but other hearing instruments are paired. Pair your hearing instruments. Refer to the section "Pairing hearing instruments". ‑ No audio signal is available. For example, pause or mute is pressed on the electronic device. ‑...
- Page 43 RCA cable is connected Troubleshooting The output signal of the electronic device is not loud enough. Increase the volume on the electronic device. No audio signal is available. For example, pause or mute is pressed on the electronic device. Your hearing instruments are out of operating distance.
- Page 44 Troubleshooting Your hearing instruments have not been paired with the transmitter, but other hearing instruments are paired. Pair your hearing instruments. Refer to the section "Pairing hearing instruments". The signal format is not supported. Refer to the section "Connecting to your electronic device". ‑...
- Page 45 Troubleshooting ‑ No audio signal is available. For example, pause or mute is pressed on the electronic device. Both TOSLINK and RCA cable are connected ● Unplug the cable that is currently not in use (either TOSLINK or RCA cable).
-
Page 46: Technical Information
Technical information Operating, transport, and storage conditions Operating conditions Temperature 5 to 40 °C Relative humidity 15 to 93 %, non‑condensing Atmospheric pressure 700 to 1060 hPa During extended periods of transport and storage, please observe the following conditions:... - Page 47 Transport and Storage Temperature ‑25 to 70 °C Relative humidity 15 to 93 %, non‑condensing For other parts, such as hearing instruments, other conditions may apply. Technical data of the power supply Input voltage: 100‑240 V AC Input current: max. 0.2 A at 100 V AC Input frequency: 47‑63 Hz Output voltage:...
-
Page 48: Disposal Information
The CE mark indicates conformity with the following European directives: 93/42/EEC concerning medical devices, 99/5/EC (R&TTE) concerning radio and telecommunications terminal equipment, and 2011/65/EU RoHS concerning the restriction of hazardous substances. The full text of the declaration of conformity can be obtained from www.signia‑hearing.com/doc. - Page 49 Wireless functionality This device contains a wireless transmitter using 2.4 GHz technology. The emission power from this device is max. 17.1 dBm EIRP. This device complies with international standards concerning electromagnetic compatibility and human exposure. FCC and ISED compliance information can be found on the back of the device.
- Page 50 This Class B digital apparatus complies with Canadian ICES‑003. This device complies with Part 15 of the FCC Rules and with ISED's licence‑exempt RSSs. Operation is subject to the following two conditions: ● This device may not cause harmful interference, and ●...
- Page 51 residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
- Page 52 ● Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
- Page 56 Legal Manufacturer Signia GmbH Henri‑Dunant‑Strasse 100 91058 Erlangen Germany Phone +49 9131 308 0 Document No. 03132‑99T01‑7600 EN Order/Item No. 109 463 23 Master Rev02, 03.2017 © Signia GmbH, 03.2017 www.signia-hearing.com...
