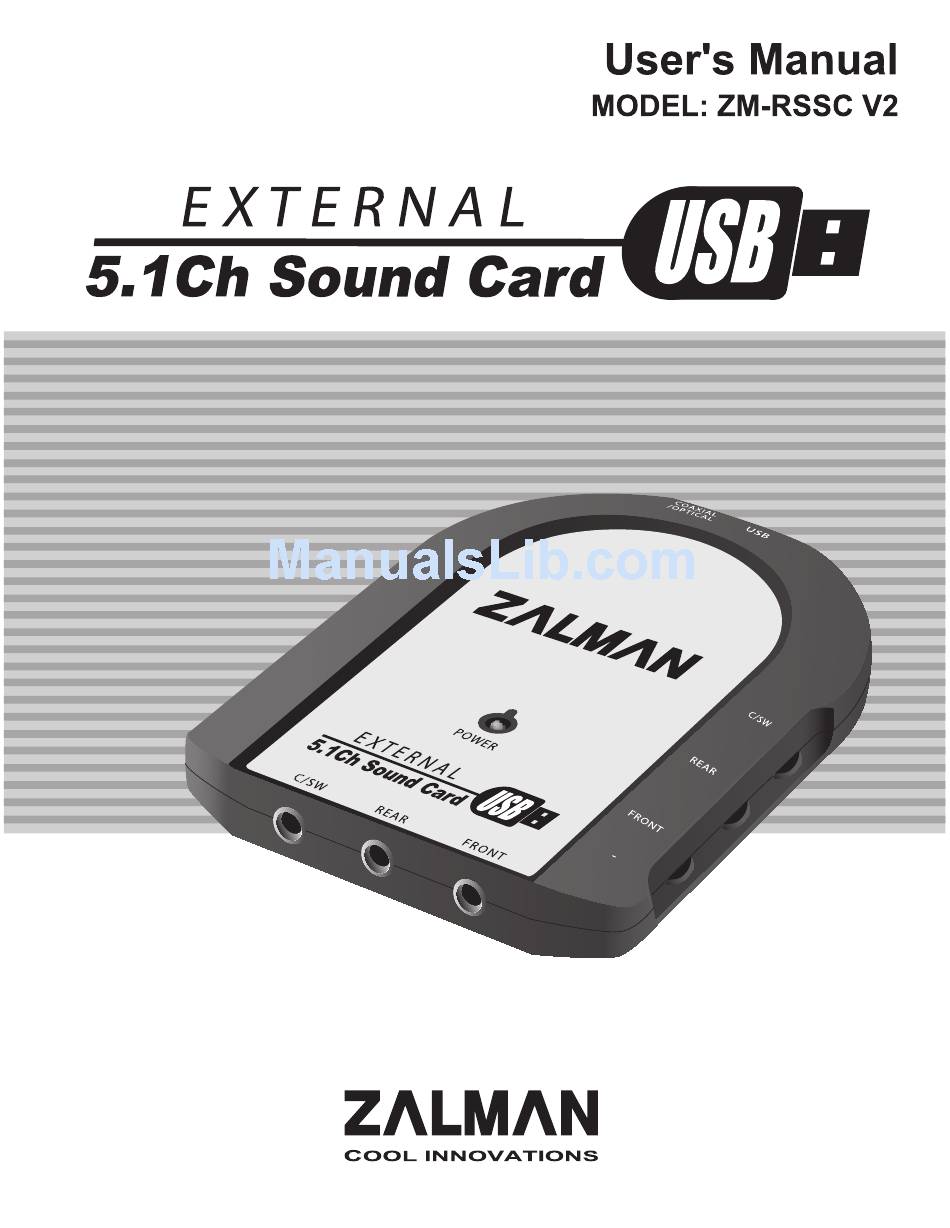

ZALMAN ZM-RSSC V2 User Manual

External usb 5.1ch sound card
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZM-RSSC V2 and is the answer not in the manual?

Questions and answers

Related Manuals for ZALMAN ZM-RSSC V2

Summary of Contents for ZALMAN ZM-RSSC V2

  • Page 2 Prolonged exposure to excessive noise can cause hearing loss. Make sure that the volume level is kept at a proper level. Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alteration, repair, improper installation, or improper testing.

  • Page 3: Specifications

    - Please carefully read the above "Troubleshooting Guide" before issuing a request for repair. When requesting repair service, please provide following information. • Model name: ZM-RSSC V2 • Your Telephone number, mailing address and e-mail address. • Condition of the broken part (in detail)
  • Page 4 Components •Sound Card : 1 EA •USB Cable : 1 EA •Utility Installation CD : 1EA •User's Manual : 1 EA Functional Diaram Model : ZM-RSSC V2...
  • Page 5 Connecting Speakers or Headphones to the Sound Card Multi-Channel Headphones Channel Speaker System ※A 3.5mm stereo cable is a speaker accessory or a separately purchased item. Speakers are not included with the sound card. Either a speaker system or headphones must be purchased separately from this card. Stereo-3.5mm cables must also be purchased separately.

  • Page 6: Software Installation

    Installation Connect the headphones' USB Connector to the PC's USB port. The OS will automatically detect the headphones, and the "Found New Hardware" message will pop up. ※This product could generate a slight pop-up noise during connection to or removal from one of the PC’s USB ports.
  • Page 7 System Configuration Click on the ‘USB 3D Sound onfiguration’ icon in the Task Manager on the bottom right side of the OS. ‘Main Setting’ Tab Output Device: Select '6 Channel'( DSP Mode: Clicking on the Digital Volume button( ) will allow volume control for each channel.
  • Page 8 ‘Mixer’ Tab Vol: Adjusts the volume level and balance regarding the audio input source. Select 'Microphone' and 'Line In' to disable them (This product does not have MIC and line input terminals. Therefore, the features mentioned above should be muted). Volume Control There are two ways to control the volume of this product.
  • Page 9 Equalizer: Volume can be controlled by frequency, and a preset mode can also be used. Note C-Media 3D 106 Configuration program is a general-purpose software provided for all soundcards using C-Media chipsets. Therefore, certain features related to MIC Input, Recording, and S/PDIF Output are not applicable to ZM-RSSC V2.
  • Page 10 Operational Guide 1) Headphones Once the sound card is installed on the computer and multi-channel headphones are ready (See ), put on the headphones and adjust the sound volume to a suitable level. ※CAUTION: The Soundcard’s Volume levels should initially be set low and raised gradually to prevent loudness related auditory discomfort and possible hearing damage.

  • Page 11: Digital Output

    If you want to listen to DVD 5.1 channel sound using this sound card, additional settings are required on the DVD player software. Up Power DVD 4.0 Settings 1) Audio Output Right click > ‘configuration’ > ‘Audio’ tab > Audio Output’ - Select “6 Speaker”.
  • Page 12 2) Miscellaneous Settings Click the Sound Card's icon in the Windows System Tray to open the sound card's control panel. Go to Settings > Audio > Advanced > Miscellaneous. If you are not satisfied with the volume level, select 'Noisy Environment.' In general, however, select 'Quiet Environment.' ※Recommended DVD Player Software: Power DVD 4.0 or WinDVD 4.0...
  • Page 13 Customer Service Center (For North / South American Consumers) Zalman USA, Inc. 1565 Harmony Circle, Anaheim, CA 92807, USA Tel: +1-714-693-8880 / Fax: +1-714-693-8890 http://www.zalmanusa.com / e-mail: zalman@zalmanusa.com Manufacturer Zalman Tech Co., Ltd. #1007 Daeryung Techno Town III, 448 Gasan-dong,...
  • Page 14 FCC Warning Statements FCC Warning Statements Interference with Other Devices Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 15 MEMO...
