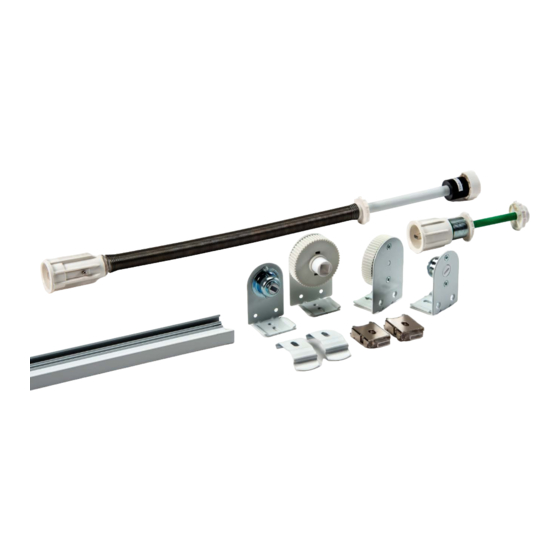

- Page 1 Cordless Roller Shade with Easy Spring Plus Fabrication & Installation Instructions...
- Page 2 Types of Systems by Headrail/Tools Needed for All Systems _________________ page 3 1-1/4” (32mm) Single System w/RE0080110 Headrail with Adjuster Wheel Parts Needed _______________________________________________________ page 4 System Diagram ____________________________________________________ page 5 1-1/2” (38mm) Single System w/RE0080110 Headrail with Adjuster Wheel Parts Needed _______________________________________________________ page 6 System Diagram ____________________________________________________ page 7 1-1/2”...
- Page 3 Reference Section 1-1/4” (32mm) Spring Selector _______________________________________ page 24 1-1/2” (38mm) Spring Selector ___________________________________ page 25 & 26 Pre-Rotation Charts _____________________________________________ page 27&28...
- Page 4 Types of System by Headrail Description Item # Photo Light Gap Over Systems Available Headrail Easy Spring 1-1/4” (32mm) Single Plus 0.158” System Headrail RE0080110 (4mm) 1-1/2” (38mm) Single Single System System Easy Spring 1-1/4” (32mm) Single Plus 0.177” System Headrail RE0080810 (4.5mm)
- Page 5 Parts Needed 1-1/4” (32mm) Single System with RE0080110 Headrail & Brackets with Adjuster Wheel Quantity Description Item Number Image Easy Spring Plus RE0080110 Headrail Single System Varies Mounting bracket RE0080200 dependent on for Headrail shade width RE0080110 (one every 18”...
-
Page 6: System Diagram
System Diagram 1-1/4” (32mm) Single System with RE0080110 Headrail & Brackets with Adjuster Wheel... - Page 7 Parts Needed 1-1/2” (38mm) Single System with RE0080110 Headrail & Brackets with Adjuster Wheel Quantity Description Item Number Image Easy Spring Plus RE0080110 Headrail Single System Varies dependent on shade width Mounting Brackets RE0080200 (one every 18” for Headrail inches) RE0080400 –...
-
Page 8: System Diagram
System Diagram 1-1/2” (38mm) Single System with RE0080110 Headrail & & Brackets with Adjuster Wheel... - Page 9 Parts Needed 1-1/2” (38mm) Single System with RE0080110 Headrail & Brackets without Adjuster Wheel Quantity Description Item Number Image Easy Spring Plus RE0080110 Headrail Single System Varies dependent on shade width Mounting Brackets RE0080200 (one every 18” for Headrail inches) RE0080400 –...
-
Page 10: System Diagram
System Diagram 1-1/2” (38mm) Single System with RE0080110 Headrail & Brackets without Adjuster Wheel... - Page 11 Parts Needed 1-1/4” (32mm) Single System with RE0080810 Headrail & & Brackets with Adjuster Wheel Quantity Description Item Number Image Easy Spring Plus Headrail Single/Dual RE0080810 System Varies dependent on Mounting Brackets RE0081110 - White shade width RE0081030 Anodized (one every 18”...
-
Page 12: System Diagram
System Diagram 1-1/4” (32mm) Single System with RE0080810 Headrail & Brackets with Adjuster Wheel... - Page 13 Parts Needed 1-1/4” (32mm) Dual System with RE0080810 Headrail & & Brackets with Adjuster Wheel Quantity Description Item Number Image Easy Spring Plus Headrail Single/Dual RE0080810 System Varies dependent on Mounting Brackets RE0081110 - White shades width RE0081030 - Silver (one every 18”...
-
Page 14: System Diagram
System Diagram 1-1/4” (32mm) Dual System with RE0080810 Headrail & & Brackets with Adjuster Wheel... - Page 15 (1.5 x 450mm) RE0084400 – 0.7” x 21.7” (1.7 x 550mm) 1-1/2 (38mm) Stop RE0081400 (one size only) ESP 1-1/2” (38mm) Cassette Brackets RE0084710 Pre-Rotation Tool RE0084200 1-1/2” (38mm) Taped RTEA4T12 – 12’ Tube RTEA4T16 – 16’ Fabric See RollEase Fabric Books...
-
Page 16: System Diagram
System Diagram 1-1/2” (38mm) Single System with Cassette 120 & Brackets without Adjuster Wheel... -
Page 17: Step 1: Headrail
Fabrication Instructions All Systems Deductions Step 1: Headrail Measure your inside or outside mount. Deduct correct measurement (see table below) from the width of your mount. This is the size you want to cut your headrail Headrail Deduction RE0080110 – single 1-1/4” (32mm) or single 1-1/2” (38mm) 3/16”... -
Page 18: Step 3: Attach Hem Bar To Fabric And Fabric To Tube
Fabrication Instructions All Systems Step 3: Attach Hem Bar to Fabric and Fabric to tube If Using Cassette Shown: Finished shade. Headrail, Brackets w/Screws, Spring, and Stop Step 4: Insert Spring & Stop (1-1/4” (32mm) shown. (see Spring Selection tables) 4a. - Page 19 For Headrail RE0080110 Note: 1-1/4” brackets with adjuster wheel shown. Instructions are the same for the 1-1/2” brackets with or without the adjuster wheel Step 6 Install Brackets and tube into headrail 6a. Insert one bracket into the headrail and use screws provided to lock in place 6b.
- Page 20 For Headrail RE0080810 Note: 1-1/4” single brackets shown. Instructions are the same for the dual brackets Step 6 Install Brackets and tube into headrail 6a. Insert one bracket into the headrail and use screws attached to bracket to hold in place 6b.
- Page 21 For Cassette 100 & 120 (For 1-1/2” (38mm) System) Cassette 120 Shown. Instructions same for Cassette 100 Step 6 Install Brackets and tube into Cassette 6a. Insert one bracket into the headrail and use screws attached to bracket to hold in place 6b.
-
Page 22: Installation Instructions
Installation Instructions 1-1/4” (32mm) Single System (Inside & Outside Mount) Step 8. Install Mounting Brackets & Headrail (Mounting brackets should be installed every 18” starting from no more than 2” in from the end of the headrail) For Headrail RE0080110 Outside Mount Inside Mount Headrail clipped into... - Page 23 Step 9. To Adjust spring and stop: 9a. Brackets with adjuster wheel Brackets without adjuster wheel Stop: Turn Clockwise to Spring: Turn Clockwise to lower stop, and increase the speed of the counterclockwise to raise shade, and counterclockwise to reduce the speed the shade goes up.
- Page 24 Installed Shade Single Shade Shown Inside Mount Outside Mount Cassette System...
- Page 25 Spring Selector 1-1/4” (32mm) Fabric Max Fabric Spring Stop Min Width Max Width Max Drop Type Weight RE0081600 15-3/4” 25” 72” 0.04” X 4.7” RE0081200 (400mm) (457mm) (1829mm) (0.24kg) (1.1 x 120mm) Polyester RE0084500 Fabric 25-1/2” 48” 96” 1lb 11oz 0.05”...
- Page 26 Spring Selector 1/2” (38mm) Min Width Min Width Fabric Adjustable No Adjuster Spring Stop Fabric Type Wheel Wheel Width Drop Weight Brackets Brackets 66” RE0080400 25-7/8” 24-7/8” 54” 1lb 5oz RE0081400 (1676m (1.2 x 300mm) (657mm) (632mm) (1372mm) (0.70kg) Polyester Fabric 78”...
- Page 27 Minimum Shade Size per Spring Spring size Stopper Size shade size Spring Size Spring Stopper (inches) (inches) (inches) 32mm 1.1mmX120mm small 10-5/8” 3-7/8” 15-3/4” 32mm 1.2mmX300mm Long 19-3/8” 5” 25-1/2” 32mm 1.4mmX400mm Long 23-5/8” 5” 29-7/8” 38mm with Adjustable 1.2mmX300mm Long 19-3/8”...
- Page 28 Pre-Rotation Charts Polyester Fabric 0.007" thick Length 18" 24" 30" 36" 42" 48" 54" 60" 66" 72" 78" 18" 24" 30" 36" 42" 48" 54" 60" 66" 72" 78" 84" 90" 96" Black Out Fabric 0.013" thick Length 18" 24" 30" 36" 42" 48" 54" 60" 66" 72" 78" 18"...
- Page 29 Pre-Rotation Charts Screen Fabric 0.03" thick Length 18" 24" 30" 36" 42" 48" 54" 60" 66" 72" 78" 18" 24" 30" 36" 42" 48" 54" 60" 66" 72" 78" 84" Screen Fabric 0.037" thick Length 18" 24" 30" 36" 42" 48" 54" 60" 66" 72" 78" 18"...
