Summary of Contents for XS Instruments 1-5 Series
-

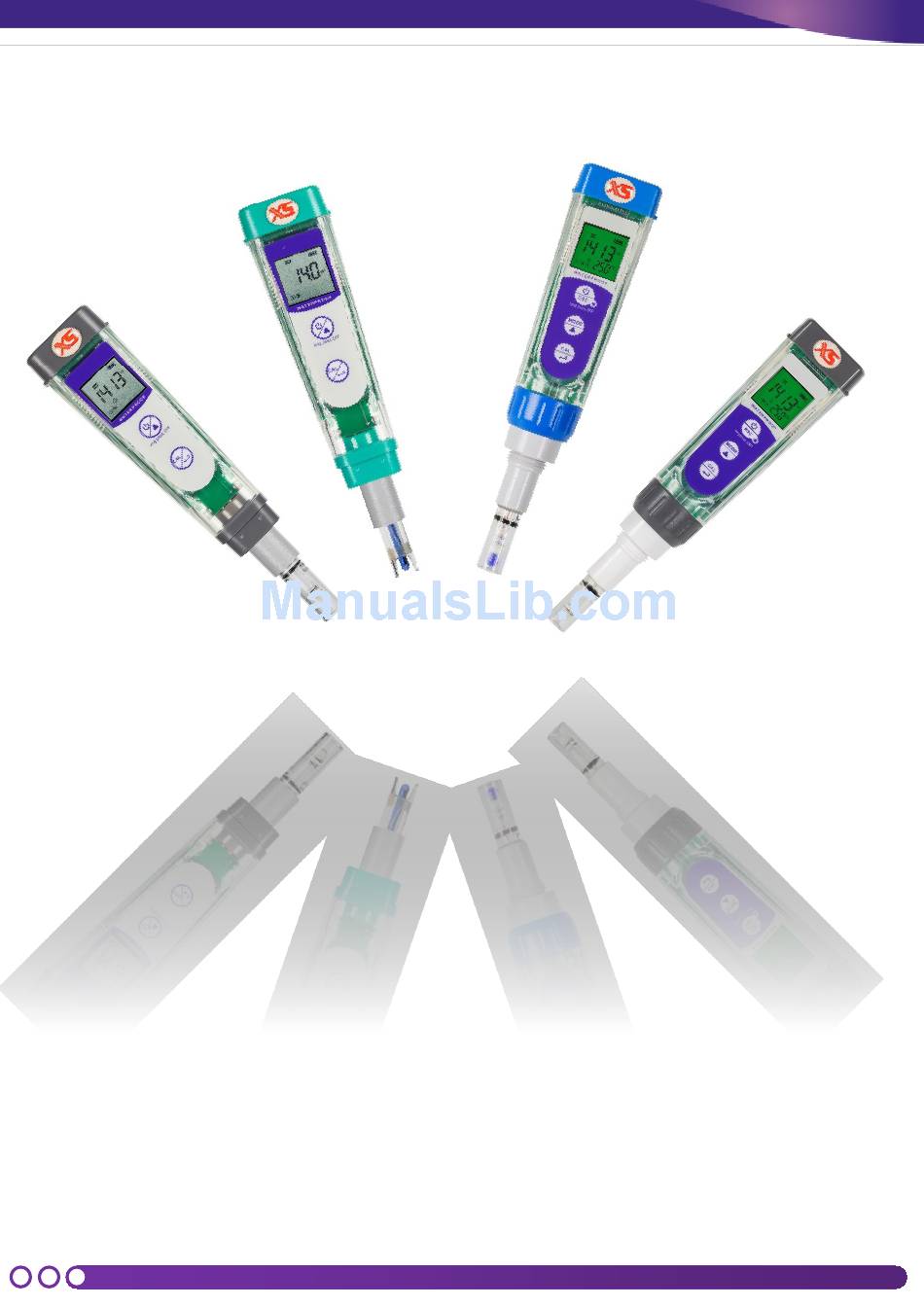

Page 1: Instruction Manual
Waterproof tester series INSTRUCTION MANUAL TESTER SERIES 1-5 Version 1.0 _ March 2016 Version 1.0 _ March 2016... - Page 2 Waterproof tester series Summary DATA SHEET ............................... 1 INTRODUCTION ..............................2 SAFETY INSTRUCTIONS ............................2 PRODUCT DESCRIPTION ............................ 3 KEYPAD ................................3 Keypad Functions for Tester pH5 / Cond5 / PC5 ..................3 Keypad Functions for Tester pH1 and Cond1 .................... 3 DISPLAY ................................
-
Page 3: Data Sheet
Waterproof tester series DATA SHEET pH 5 / pH 1 COND 1 ORP 5 COND 5 PC 5 pH 5 Food pH Range 0…14 -2…16 -2…16 Resolution / Accuracy 0.1 / 0.01 / +00.1 0.01 / +0.1 +0.1 MultiPoint Calibration 1…2 1…3 1…3... -
Page 4: Introduction
Waterproof tester series INTRODUCTION Congratulation for buying one of the most innovative and easy to use Pocket Tester. Pocket testers series 1 and 5 are very handy for the routine measurements in all applications where fast indication of measurement is required. These Testers are specially designed for applications like: Agriculture, water and waste water treatment, Hydroponics, Aquaculture, Environmental monitoring, Food and beverage manufacturing, Cooling towers, Printing, Education etc. -
Page 5: Product Description
Waterproof tester series PRODUCT DESCRIPTION KEYPAD pH5 / Cond5 / PC5 pH1 / Cond1 Keypad Functions for Tester pH5 / Cond5 / PC5 Button Function Action Press to switch on/off the meter. Press to escape from setup menu or calibration procedure. During measurement: Press to turn on/off the back light. -
Page 6: Display
Waterproof tester series DISPLAY The device is endowed with LCD display for Series 1 and 3 colors backlight LCD for Series 5 • GREEN: Setup or measurement mode • BLUE: Calibration mode • RED: Error/Alarm KΩ MΩ Measuring parameter Battery level COND mg/L ppm ppt Measuring unit... -
Page 7: Instructions For Ph1 / Cond1
Waterproof tester series INSTRUCTIONS FOR pH1 / Cond1 POWER ON Press key once, the meter will switch On and the display will show all the segments active for 2 sec. and then it will display the following: pH SAL KΩ MΩ COND mg/L ppm ppt -18.8.8... -
Page 8: Calibration Procedure For Conductivity (Cond1)
Waterproof tester series CALIBRATION PROCEDURE FOR CONDUCTIVITY (Cond1) 1. Power ON the meter by pressing the Key. COND 2. Rinse the probe with distilled water. 1426 µS 3. Immerse the probe in the calibration solution (1413µS or 12.88 mS), wait for stability ☺. 4. -
Page 9: Instructions For Ph5 / Cond5 / Pc5
Waterproof tester series INSTRUCTIONS FOR pH5 / Cond5 / PC5 POWER ON Press key once, the meter will switch On and performs a test of 3 colors backlight display and then show all the segments active for 2 sec. Then it will display the following: pH SAL KΩ... -
Page 10: Calibration Procedure For Conductivity (Cond5/Pc5)
Waterproof tester series CALIBRATION PROCEDURE FOR CONDUCTIVITY (Cond5/PC5) 1. Power ON the meter by pressing the Key. COND 2. Rinse the probe with distilled water. 1426 µS 3. Immerse the probe in the calibration solution (84µS or 1413µS or 12.88mS), wait for stability ☺. -
Page 11: Replacement Of Sensor
Waterproof tester series REPLACEMENT OF SENSOR Tester 5 series has replacement sensors which can be replaced in case it expires of damages. 1) To replace the sensor unscrew the dial in anti-clock wise. 2) Pull out sensor from unit body. 3) Put a new sensor by matching correctly the sign of dent. -
Page 12: Error Description
Waterproof tester series ERROR DESCRIPTION Error Contents Checking 1.Check whether buffer solution is correct. Wrong pH buffer solution or the 2.Check whether the meter connects the recognition of calibration solution out electrode well. of range 3.Check whether the electrode is damaged. Press key when measuring value is not stable during calibration.
