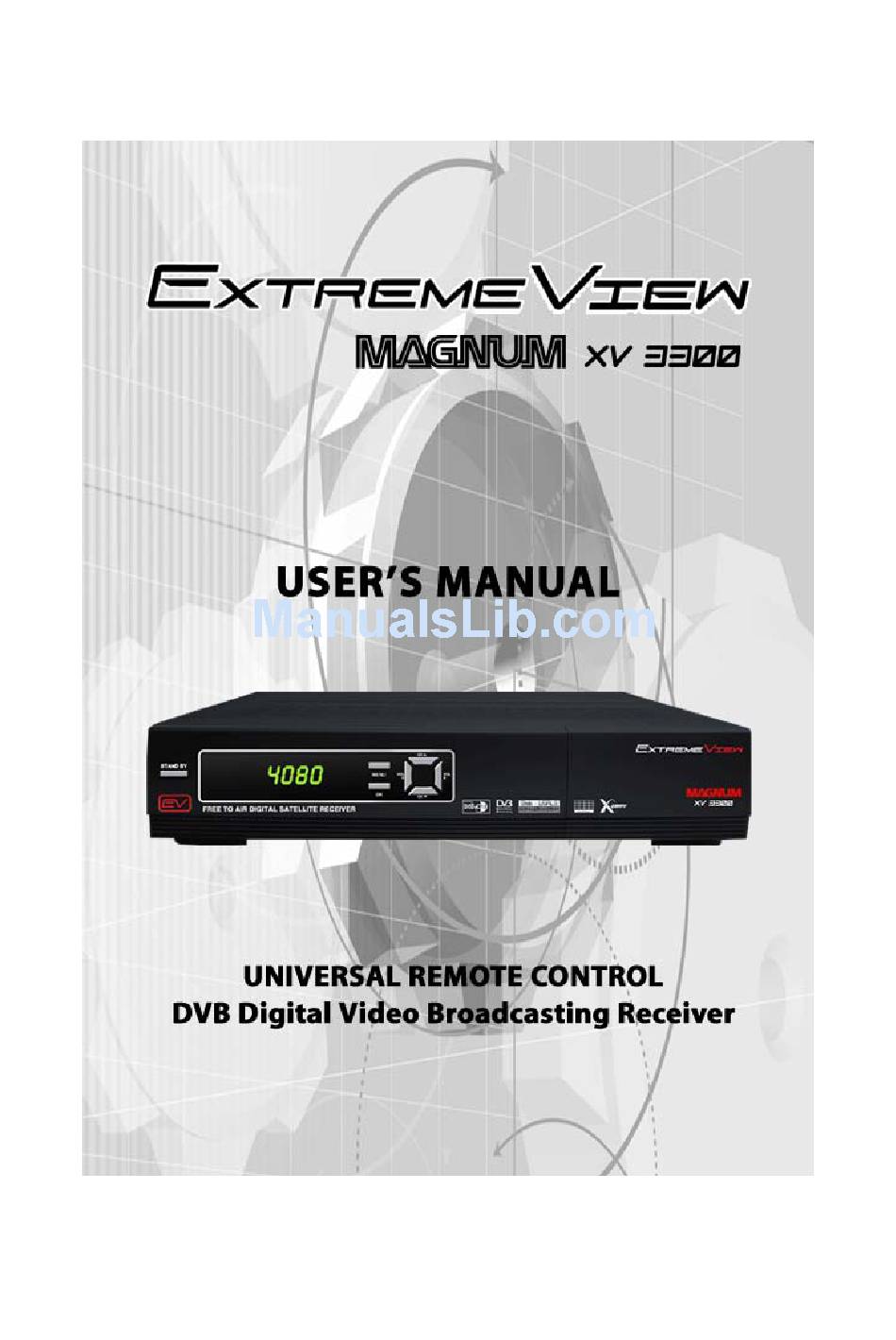

ExtremeView Magnum XV 3300 User Manual

Universal remote control dvb digital video broadcasting receiver

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Troubleshooting

Need help?

Do you have a question about the Magnum XV 3300 and is the answer not in the manual?

Questions and answers

Summary of Contents for ExtremeView Magnum XV 3300

Page 2 Contents Declaration of Conformity --------------------------------------------------------------------------------- 3 General Information ----------------------------------------------------------------------------------------- 7 Safety and Precaution ------------------------------------------------------------------------------ 7 Accessories -------------------------------------------------------------------------------------------- 9 Remote Control Unit --------------------------------------------------------------------------------------- 10 System Connection ---------------------------------------------------------------------------------------- 11 Front Panel ------------------------------------------------------------------------------------------- 12 Rear Panel ------------------------------------------------------------------------------------------- 12 Connecting your System -------------------------------------------------------------------------- 13 Menu Structure ---------------------------------------------------------------------------------------------- 15 Menu Guide --------------------------------------------------------------------------------------------------- 16 Installation -------------------------------------------------------------------------------------------- 16...
Page 3: Declaration Of Conformity
Declaration of Conformity FCC Rule : TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 4: Important Safety Instructions
Declaration of Conformity Important Safety Instructions ① Read these instructions. ② Keep these instructions. ③ Heed all warnings. ④ Follow all instructions. ⑤ Do not use this apparatus near water. ⑥ Clean only with dry cloth. ⑦ Do not block any ventilation opening. Install in accordance with the manufacture’s instruction.
Page 5 Declaration of Conformity Este dispositivo cumple con la parte 15 de las Normas de la FCC. El funcionamiento está sujeto a las dos condiciones siguientes : (1) Este dispositivo no puede causar interferencias perjudiciales, y (2) Este dispositivo debe aceptar cualquier interferencia que pueda causar un funcionamiento no deseado.
Page 6 Declaration of Conformity Información importante sobre seguridad ① Lea estas instrucciones. ② Guarde estas instrucciones. ③ Preste atencion a todas las advertencias. ④ Siga todas las instrucciones. ⑤ No use la unidad cerca del agua. ⑥ Límpiela sólo con un paño seco. ⑦...
Page 7: General Information
General Information Safety and Precautions Thank you for purchasing the digital satellite receiver. For your safety and proper operation, please take time reading this manual fully before installing and operating the receiver. We hope you will be able to take advantage of the numerous functions with the help of this manual.
Page 8: Safety And Precautions
General Information Safety and Precautions ◈ ATTACHMENTS Do not use any attachments that are not recommended as these may cause hazard or damage to the STB. ◈ CONNECTION TO THE SATELLITE DISH LNB Disconnect the STB from the mains before connecting or disconnecting the cables from the satellite dish.
Page 9: Accessories
General Information Accessories Check the following accessories when you open the box User’s Manual Serial cable RCA to RCA cable DiSEqC SW Batteries The device, packaging material and batteries must never be disposed of with household. Please obtain appropriate information about regulations in your community, and dispose of all in accordance with regulations at the separate locations provided.
Page 10: Remote Control Unit
Remote Control Unit MUTE TV/DVD/AUX/SAT Power Enable or disable audio Select other equipment Power on, standby mode. SAT LIST TV / RADIO Display the satellite list Receiver switches between TV and Radio channels. FAV (Favorite) Set receiver to favorite service CC (Closed Caption) mode, display the favorite Display the Closed caption...
Page 11: System Connection

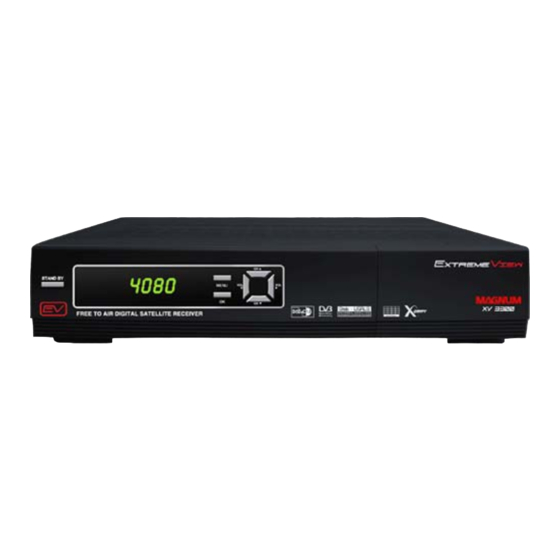

System Connection Front Panel ◈ Normal Display : - On - STANDBY - Channel Number - Channel Name ◈ Tact switch : Standby On/Off, CH UP/DOWN, Menu, OK, Vol. UP/DOWN ◈ Smart Interface slot : 1 Smart card slot (Xcrypt Embedded) NOTICE : 1.
Page 12: Rear Panel
REAR PANEL Rear Panel ① ② ③ ④⑤⑥ ⑦⑧ ⑨ ⑩ Please refer to the diagram above for all possible connections of your receiver Do not connect the unit to the mains socket until all other connections have been made and checked. IF INPUT : This port is to connect the coaxial cable from LNB of your Dish.
Page 13: Connecting Your System
System Connection Connecting Your System ◈ TV Only There are two ways to connect the STB to your existing TV system. We recommend using one of the following cases for the best result : Connect one end of RCA cable (Composite Video, Audio Left, Right) to the RCA jack on the back of the STB and the other end to a RCA jack on your TV.
Page 14 System Connection Connecting Your System ◈ TV with Motorized System (DiSEqC 1.2) There are two ways to connect the STB to your existing TV system. We recommend using one of the following cases for the best result Connect one end of RCA cable to the RCA jack on the back of the STB and the other end to a RCA jack on your TV.
Page 15: Menu Structure
Menu Structure Delete Channel Main Menu Program Guide Main Menu Delete All (SAT/TP/CH) Favorite Channel Default Configuration TV/Radio Channel Factory Reset Factory SAT Restore Channel Guide Mosaic Channel DB Data Receive Channel Manager Favorite Group Application Receive Channel Delete Loader Receive Send Data Channel Sort X-Modem Option...
Page 16: Menu Guide
Menu Guide Installation ◈ Initial Service Searching Menu Language Select Language With “◀”, “▶” Key On The RCU, Then Press Ok Or Menu Key To Continue. Factory Satellite Restore At the booting, select area with “◀”, “▶” key on the RCU. this moment, PIG on the right side of the screen shows the receive-able range.
Page 17 Menu Guide Installation ◈ Service Searching Setup Satellite When Selecting Setup Satellite In Install Menu. 1) Degree Users can edit satellite degree by using numeric keys on the RCU. 2) LNB Frequency (High / Low) Input the frequency directly from the numeric keys on the RCU or press “OK”...
Page 18 Menu Guide Installation ◈ Service Searching Setup Motorized System 4) Move :Select TP and use the cursor with RCU keys to “Move” menu to move the motor. Refer to the signal strength (as visual graphic chart), at this time. The motor will move by step by pressing left/right cursor keys shortly on the RCU.
Page 19 Menu Guide Installation Setup Transponder 5) CH Search : To search TP on the setup transponder mode, select TP first and then press “Blue” key to search channels. Search Channel (Satellite) When selecting Search Channel (Satellite) in Install menu. 1) Service searching : TV/RADIO, CAS, NETWORK SEARCH or by SID method can be selected when OK key is pressed in satellite.
Page 20 Menu Guide Installation Search Channel (Satellite) STB will automatically search all TV/Radio channels from a satellite and save them into the Channel List. You can see the progressive status of channel searching. Press the Red or Exit key to stop Channel Search. When the Channel Search is completed, the result will be saved and the first channel of the searched ones will be displayed.
Page 21 Menu Guide Installation ◈ Factory Default 1) Delete Channel : Delete channel data only. 2) Delete All (SAT/TP/Channel) : Delete a certain part of data in the setting. 3) Default Configuration To reset all environment variables to default. 4) Factory Reset Reset to factory default.
Page 22: Channel Guide
Menu Guide Channel Guide ◈ Program Guide Guide The information is only available from the transponder of the channel you are watching. To see the titles of current & next program, press the “Guide” of the RCU. Depending on the amount of the Guide (EPG) data, loading time might take a couple of seconds.
Page 23 Menu Guide Channel Guide ◈ Program Guide Reservation Functions 1. Maximum 20 events can be reserved. 2. To reserved the channels you want, 1) Select the reservation broadcast using “▲”, ”▼” keys. 2) Time event : Select the type “Record/View.” 3) Mode : Select the mode “Once / Daily / Weekly”.
Page 24 Menu Guide Channel Guide ◈ Favorite Channel This function can be used to edit channel in favorite group of main menu. 1. Favorite group move Select channel to move by using “◀”, “▶” key. To move a certain channel to a group, move to the group then press “OK”...
Page 25: Channel Manager
Menu Guide Channel Manager ◈ Favorite Group Favorite group is selected in Channel manager menu. There are theme category for grouping on the right side of the screen 1. Favorite group register Move to a channel with “▲”, “▼” key and select the channel with the Red key.
Page 26 Menu Guide Channel Manager ◈ Channel Delete Move the cursor highlight to a channel to delete and press the “Red” key to select and press Green key to confirm to delete the channel. ◈ Channel Sort Sort function can be in SID, channel name, Sat/TP and in CAS order.
Page 27 Menu Guide Channel Manager ◈ Channel Move Go to a certain channel with cursor key and press the “Red” key to select. Then press “Green” (move) key to display move pop up window. Setup location and direction and select “Channel Move…”...
Page 28: System Setting
Menu Guide System Setting ◈ Language Setting To select the desired language of the OSD Menu , Audio, 2’nd Audio place the cursor on the sub menu by pressing the “▲,▼” keys and press the “◀,▶” keys to change language. The Language of the OSD Menu , Audio, and 2’nd will be changed to the selected language.
Page 29 Menu Guide System Setting ◈ AV Output Setting 1. OSD Transparency OSD Transparency can be adjusted from level 0 to 10 by one step. 2. Video Output Video output can be selected from S-Video to YPbPr 3. Video Display 1) When Aspect Ratio 4:3 - PAN SCAN : Center part of 16:9 image shown on full screen when 16:9 transmission - LETTERBOX : Whole 16:9 image is...
Page 30 Menu Guide System Setting ◈ Parental Control You can change your PIN Code from the factory default value “0000” as follows: 1. Channel Lock Mode Off, Continuous, Once. 2. Power On To lock the receiver, select “Power On” in the “Parental Control”...
Page 31 Menu Guide System Setting ◈ Additional Options 1. Multi Picture (Mosaic) To display Multi Picture (Mosaic).( For direct access press “MOSAIC” from the RCU) Numbers of Multi Picture (Mosaic) can be changed from 4/9/10/13 by pressing “MOSAIC” key from the RCU twice. 2.
Page 32: Games / Memo
Menu Guide Games / Memo ◈ Schedule Manager Schedule calendar is displayed when Schedule manage is pressed. Users can move to dates by “▲”, “▼” “◀”, “▶” cursor and press OK key to select. At this time pop up window will be displayed. 1.
Page 33 Menu Guide Games ◈ Tetris “OK” : Rotate “◀” : Move Left “▶” : Move Right ▼ “ ” : Drop ◈ Sokoban Objectives Move the balls to designated positions but The balls can only be pushed. “◀” : Move Left “▶”...
Page 34: Embedded Cas
Menu Guide Embedded CAS ◈ Smart Card XV 3300 is an embedded Xcrypt receiver, please insert a valid Xcrypt smart Card to view Xcrypt channels. For proper operation always insert the smart card IC face down.
Page 35: Functions Guide
Functions Guide List Menu This menu helps you to easily select the channel that you want to watch or edit. To display the Channel List, press the “List” or “OK” key while you are viewing a program and you will see all channels that you saved in the channel list. To watch a specific channel, first select by using the “▲,▼”...
Page 36: List Menu
Functions Guide List Menu Use “FIND” key of the RCU after “TV/RADIO”, “SAT LIST”, “CH LIST” or “FAV” to easily find a specific channel. 6. When you press the “Sat list” key, Channels will be sorted by satellites.
Page 37: Closed Caption
Functions Guide Closed Caption Displaying Closed Caption (CC) Some programs are broadcast with Closed Caption. To display Closed Caption, select Closed Caption function On by pressing CC button. Closed Caption shows you a caption, that is printed version of the dialog or sound effects of a program. Note : Your TV should support Closed Caption function to display Caption.
Page 38: Zoom
Functions Guide ZOOM Press zoom key on the RCU to close up the screen as x1/ x2/ x3/ x4 rates. On the zoomed screen it can move by “▲”, “▼” “◀”, “▶” key. To quit zoom, press exit key. Quick Edit When the user wants to register or change the current favorite group while viewing or to lock or delete a channel press the “FIND”...
Page 39: Technical Specification
Specification Technical Specification Conditional Access Interface Smart 1 Slot Smart card interface Front End Input Frequency 950~2150MHz Input Impedance 75Ω Connector 2xF-Type RF Input Level -65~-25dBm LNB Control DiSEqC 1.0 , 1.1 & 1.2, USALS LNB Power 13V/18V (Max500mA with short circuit protection) LNB Tone Switch 22KHz Wave Form...
Page 40 Specification Technical Specification Connectors Tuner IEC 169-24,Female With 1 Loop Through Out Video Output 1 x RCA/Cinch Audio Output 2 x RCA/Cinch Component Video Output 3 x RCA/Cinch S-Video Output 1 x Mini DIN S/PDIF 1 x optic con. (Dolby Bitstream Out Available) Modulator Output NTSC Modulator (CH3 / CH4) RS232C...
Page 41 Specification Technical Specification Main CPU STm5105 / 200 MHz Memory Flash Memory 4 MB System Memory 32 MB...
Page 42: Trouble Shooting Guide
Trouble Shooting Guide Trouble Shooting If you suspect there is a fault with your receiver, please check the following trouble shooting guide before calling an authorized service agent. Warning! Under no circumstances attempt to repair the receiver yourself. Tampering with the receiver may result in fatal electric shock and will invalidate your warranty.
Page 43: Trouble Shooting
Trouble Shooting Guide Trouble Shooting Symptom Possible cause Poor Picture Quality • The level of Signal strength is low. Receiver not responding to • RCU batteries are dead or inserted remote control unit incorrectly. • The RCU is pointing toward wrong direction. Receiver is on but no picture or •...
Page 44: Universal Rcu
Universal RCU Universal Remote control Function List...
Page 45 Universal RCU Operating Other Equipment with Universal Remote Control Unit ◈ Operating other equipment (TV , DVD, Tivo, Audio…). You can operate TV, DVD, AUDIO equipment that has an infrared remote sensor with the supplied remote controller. To operate it, set the manufacturer’s code number.
Page 46: Universal Remote Control Unit Code
Universal RCU Universal Remote Control Unit Code...
Page 47 Universal RCU Universal Remote Control Unit Code...
Page 48 Universal RCU Universal Remote Control Unit Code...
Page 49 Universal RCU Universal Remote Control Unit Code...
