DMX MULTI FUNCTION CONTROLLER MANUAL
DMX Multi function controller can be controlled by DMX 512 console, our LED
controller panel specially-designed for this LED controller or IR remote (YLC-007).
The LED lights together with this LED controller can make colorful and dynamic light
scenery effects. It is widely applied to entertainment halls, stages, social clubs and
outdoor buildings decoration etc.

A, Specification:

Power In: AC100V-240V 50HZ/60HZ
Power Out: 4 X DC(24V X 4A) available upon request.
Power consumption: 400W
Size: 37*23.5*6.5 cm
Weight: 3.6 kgs
- Programmable variations of speed, flash and fade time of each pattern, capable of
fading between 2 seconds, variable to 2 minutes.
- selectable RGB dimming mode, RGB roll mode, auto-run, DMX mode, slave mode,
sound-controlled mode, special control mode etc.
- total power consumption for all the LED lights connected is 400W at most.
- IR remote optional. .
- sound active available.

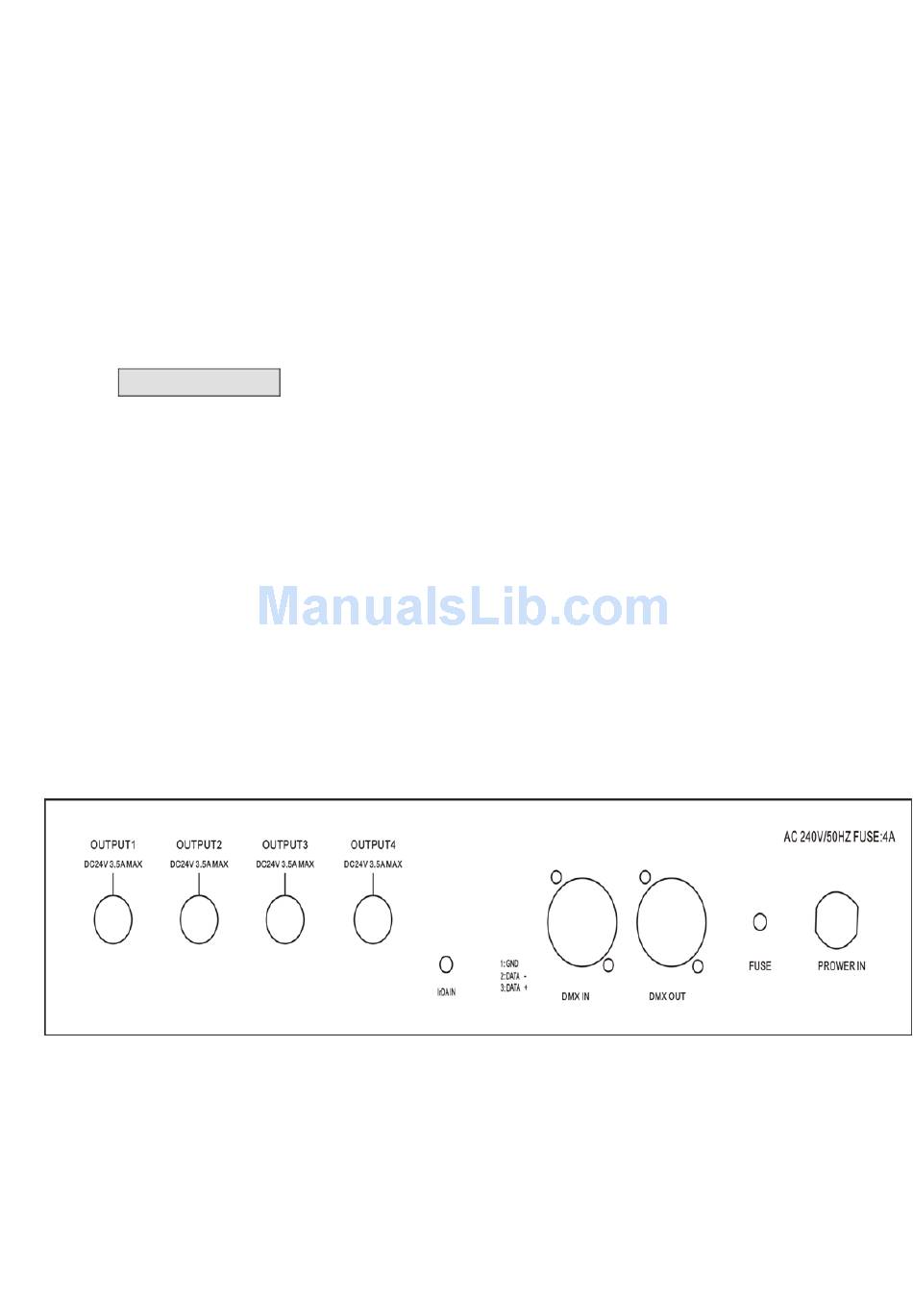

Rearpanel:
The Front Panel:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YLC-004 and is the answer not in the manual?

Questions and answers

Summary of Contents for Highendled YLC-004

  • Page 1 DMX MULTI FUNCTION CONTROLLER MANUAL DMX Multi function controller can be controlled by DMX 512 console, our LED controller panel specially-designed for this LED controller or IR remote (YLC-007). The LED lights together with this LED controller can make colorful and dynamic light scenery effects.
  • Page 2 B, Operation: There are seven work modes, please find the following information for your reference: 1, RGB dimming mode Operation by DMX Multi function controller Press “MODE” to select Manual mode. Press “SET UP” to select “R” or “G” or “B” Press “UP”...
  • Page 3 Press “UP” or “DOWN” to adjust the flash frequency. Operation by IR remote Press “SELECT PROG” to select ROLL mode. Press “SPEED”, adjust the speed via “+” or “-” Press “FLASH”, adjust the flash frequency via “+” or “-”. Press “FLASH” again or other keys, then exit “FLASH” 3, Auto run mode: Operation by DMX Multi function controller Press “MODE”...
  • Page 4 Press “DMX” again to set DMX address or choose DMX P1 or DMX P2. Press “+” or “-” to choose DMX P1 mode or DMX P2 mode. When it is in any mode: you can set DMX address via “S” “0” “1” “2” “3” “4” “5” “6” “7” “8” “9” buttons for the LED lights by pressing these buttons.
  • Page 5 7, Controller Panel mode Operation by DMX Multi function controller Press “MODE” to select DESK mode. Operation by IR remote Press “SET ADDR” and “6” “8” “9” to select DESK mode. There are five main functional operation for the controller panel: 1, select color mode: Press “color select”...
