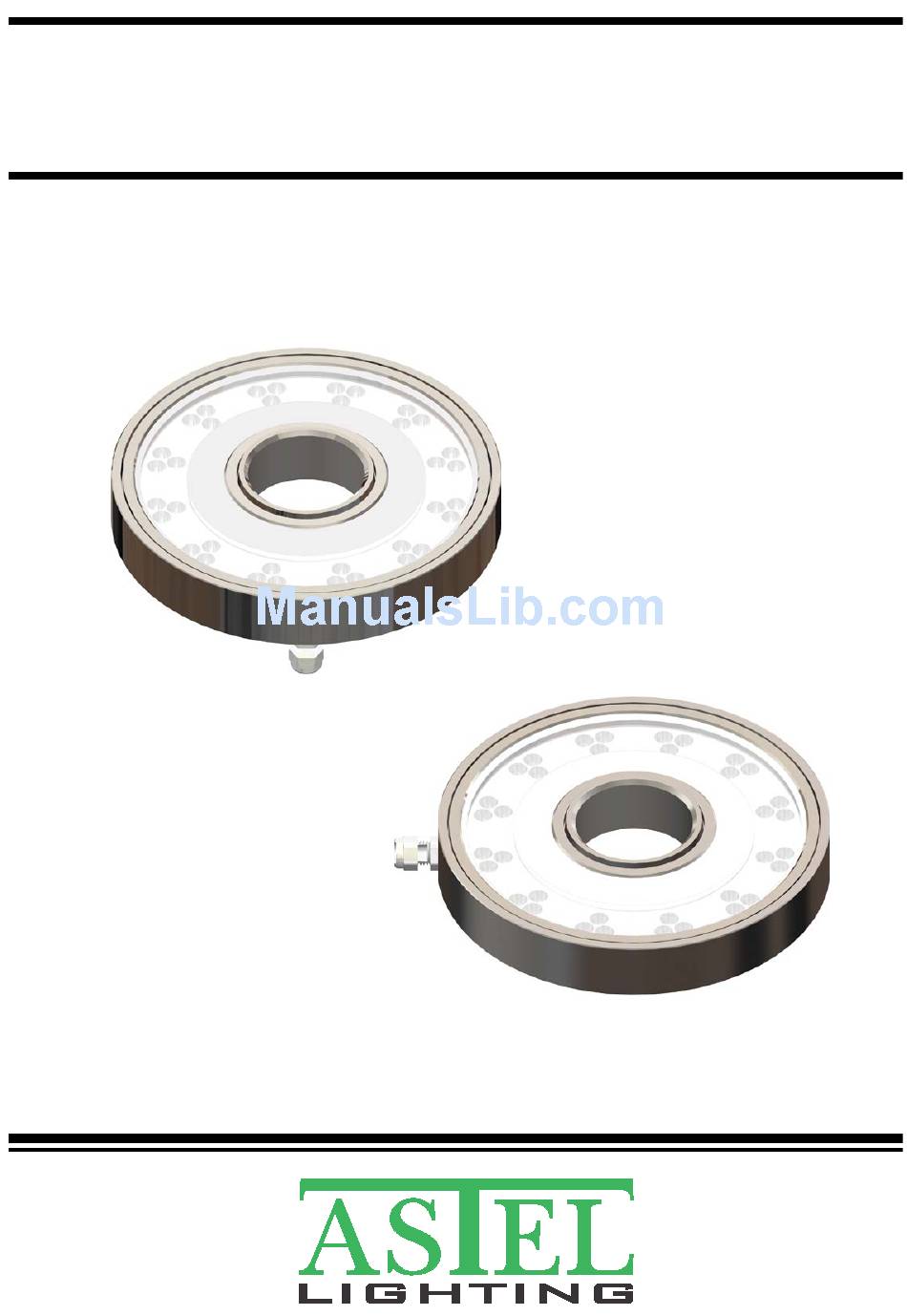

- Page 1 CASCADA LPR36240 LPS36240 FOUNTAIN LIGHT Operating Instructions...
- Page 2 CONTENTS Preface ................................3 Features ................................3 Precautions ................................3 Components ...............................4 Assembling and Installation ..........................5 Connection .................................6 Controls ................................7 Appearance ................................8 Technical Specifications .............................9 Warranty ................................10 Declaration of Conformity ..........................11 _________________________________________________________________________________...
-
Page 3: Preface
• Do turn power off immediately and refer spectrum by using optional momentary switch servicing to qualified service personnel if or optional DMX512 interfaces with built-in the interior & exterior light does not operate ASTEL protocol. normally following operating instructions. -
Page 4: Components
COMPONENTS Model Description LPR36240 Rear Cable Inlet LPS36240 Side Cable Inlet Color of lighting Desription Red + Green + Blue Warm White Cool White Mounting assembly Description -blank- Fountain Light FLM36 Flood Light SLM36 Surface Light HFL36 Outdoor Light, Round HFL-SQ36 Outdoor Light, Square (1) Fountain light... -
Page 5: Assembling And Installation
ASSEMBLING AND INSTALLATION The modular fountain LED light CASCADA series can be used as stand-alone unit or combined with the following assemblies. • Flood-light mounting assembly • Surface-light mounting assembly • Outdoor light mounting assembly The assembling and installation have to be realized by qualified personnel. The CASCADA has to be assembled and fixed as shown in the drawings below:... -
Page 6: Connection
Note: • Do not cover the FOUNTAIN light body with any kind of temperature isolating material. The FOUNTAIN light is protected by a temperature sensor against over-heating. When the temperature of the FOUNTAIN light exceeds 85°C the FOUNTAIN light is automatically switched off. -
Page 7: Controls
CONTROLS Single-color warm white (WW) or cool white (CW) Control by momentary switch Remote control by momentary switch can be used to turn-on and turn-off the light and to control the luminosity. Turning on / off Press the momentary switch momentary. Dimming When the light is on, press the momentary switch longer until the desired power is achieved. -
Page 8: Appearance
Press the momentary switch for min. 40 seconds or until the light is turned off. DMX512 control The built-in ASTEL protocol enables the network connection to control the lights with the standard DMX512 protocol by using optional LXU01 or LXU03 interfaces. -
Page 9: Technical Specifications
12 – 24 Vdc, max. 4.3 A/12 Vdc or 1.9 A/24 Vdc Lens angle 15° Optical window High-grade polycarbonate glass Luminous flux max. 5.700 lm ASTEL protocol default address Operating temperature -10°C - +50°C Casing Stainless steel (316L) Protection IP 68 Dimensions Ø189 x 31 mm... -
Page 10: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY according to IEC Guide 22 and EN 45014 Manufacturer's Name: ASTEL, Podjetje za projektiranje, proizvodnjo in trgovino, d.o.o. Manufacturer's Address: Dutovlje 138 6221 Dutovlje Slovenija declares that the products Item, Product Name and Model Number: 1. Fountain LED light CASCADA series... - Page 12 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 info@astel-lighting.com E-mail: www.astel-lighting.com Web:...
