SNYPER-LTE
Cellular Signal and Network
Analyser
Quick Start Guide
Rev 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNYPER-LTE and is the answer not in the manual?

Questions and answers

Related Manuals for SIRETTA SNYPER-LTE

Summary of Contents for SIRETTA SNYPER-LTE

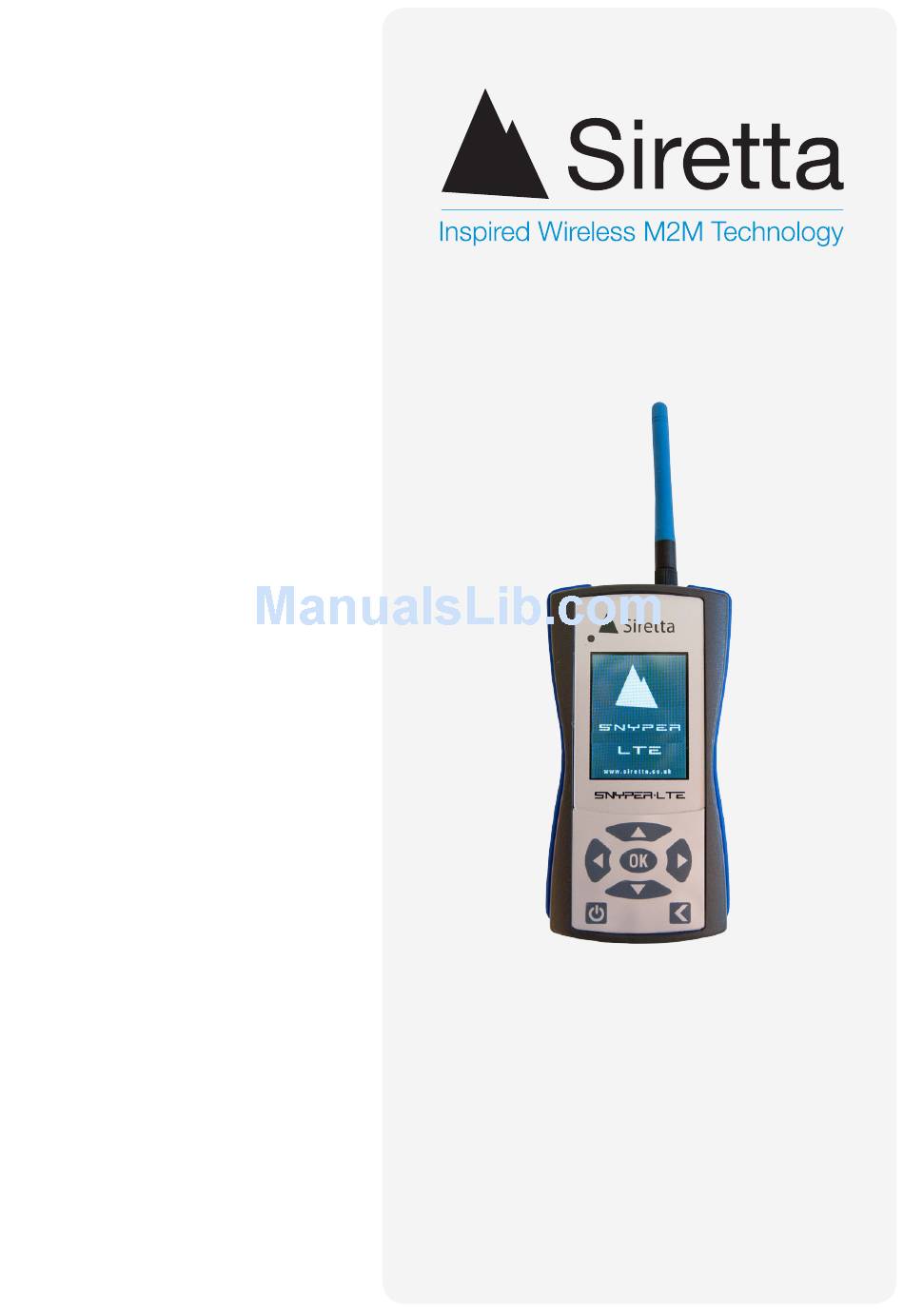

  • Page 1 SNYPER-LTE Cellular Signal and Network Analyser Quick Start Guide Rev 1.2...
  • Page 2 Preparing the SNYPER-LTE Main Menu Performing an LTE Survey View LTE Survey Results Save LTE Survey Results Performing a GSM/UMTS Survery View GSM/UMTS Survey Results Save GSM/UMTS Survey Results Viewing Saved Survey Results Downloading Saved Data Powering off the SNYPER-LTE Spectrum...

  • Page 3: Case Contents

    Case Contents Unpack the case contents to begin using your SNYPER-LTE signal strength tester. SNYPER-LTE signal and network analyser Multi region power supply Blue antenna - General purpose LTE(4G), UMTS(3G) & GPRS(2G) coverage Silver antenna - For LTE 2600MHz only...

  • Page 4: Preparing The Snyper-Lte

    This device requires an active 4G enabled SIM when performing surveys on all LTE, UMTS and GSM networks. Insert SIM card as shown below. The SNYPER-LTE needs to be charged using the mains adaptor for 6 - 8 hours before initial use.

  • Page 5: Main Menu

    Main Menu The main menu will be displayed when the SNYPER-LTE has successfully powered on. The main menu has 7 menus (as shown below in figure 4), these can be selected using the UP/DOWN buttons. Once the chosen menu is highlighted, click the OK button.

  • Page 6: Performing An Lte Survey

    Performing an LTE Survey Use the menu buttons to select ‘Survey’, click the OK button. Select ‘LTE Survey’, click the OK button. Survey will begin performing Figure 6. Selecting Figure 7. Performing Figure 5. Select survey LTE survey survey...

  • Page 7: View Lte Survey Results

    (as shown in figure 8). Using the menu buttons, select the network results you wish to view. Press OK (see figure 9 for network results). Figure 8. ‘Survey Menu’ screen Figure 9. LTE results NOTE: See ‘SNYPER-LTE - User Manual’ if you require more information on interpreting survey results.

  • Page 8: Save Lte Survey Results

    Press the back button until you return to the ‘LTE Menu’ screen. Select ‘Save’, click the OK button. Results will save. Figure 10. Saving Figure 11. Selecting Figure 12. LTE save option results being saved results NOTE: The SNYPER-LTE can store 1 LTE survey.
  • Page 9 Performing a GSM/UMTS Survey Use the menu buttons to select ‘Survey, click the OK button. Select ‘GSM/UMTS’, click the OK button. Survey will begin performing Figure 14. Selecting Figure 15. GSM\UMTS Figure 13. Select survey GSM/UMTS survey results being saved...

  • Page 10: View Gsm/Umts Survey Results

    New Survey: Performs a new network survey. Save: Saves the results of the performed survey. Figure 17. GSM results Figure 18. GSM/UMTS summary Figure 19. Saving data NOTE: See ‘SNYPER-LTE - User Manual’ if you require more information on interpreting survey results.

  • Page 11: Save Gsm/Umts Survey Results

    Select ‘Save’, click the OK button. Results will save. Figure 20. Saving Figure 21. Selecting Figure 22. GSM/UMTS save option results being saved results NOTE: The SNYPER-LTE can store 1 combined GSM & UMTS survey from any one location, network permitting.
  • Page 12 Viewing Saved Results LTE Results Use the menu buttons to select ‘Saved Results’, click the OK button. Select ‘LTE Survey’ or ‘GSM/UMTS Survey’, click the OK button. Figure 23. Selecting Figure 24. Select results you wish to view saved results...
  • Page 13 GSM/UMTS Results Use the menu buttons to select ‘Saved Results’, click the OK button. Select ‘LTE Survey’ or ‘GSM/UMTS Survey’, click the OK button. Use the menu buttons to select the saved results you wish to view, click ‘View’. Figure 26. Select results Figure 27.

  • Page 14: Downloading Saved Data

    Downloading Saved Data Connect supplied USB cable to the SNYPER-LTE and PC. From the SNYPER-LTE ‘Main Menu’ select ‘PC Connect’ and ‘Enable’. From the PC select ‘Open Folder to View Files’ and open saved files (copy files to hard drive as required).
  • Page 15 Powering Off the SNYPER-LTE After use, remember to power off the SNYPER-LTE. This can be done by: Select the ‘Power Off’ option from the main menu. The SNYPER-LTE will display » a power off message. » Press and hold the ON/OFF button on the SNYPER-LTE for >2 seconds. The...
  • Page 16 Further Information Full user guide for the SNYPER-LTE can be downloaded from the Siretta website. www.siretta.co.uk/snyper-lte sales +44 (0)118 976 9014 +44 (0)118 976 9020 accounts +44 (0)118 976 9069 email info@siretta.co.uk www.siretta.co.uk Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No.
