Summary of Contents for Insportline 3370120

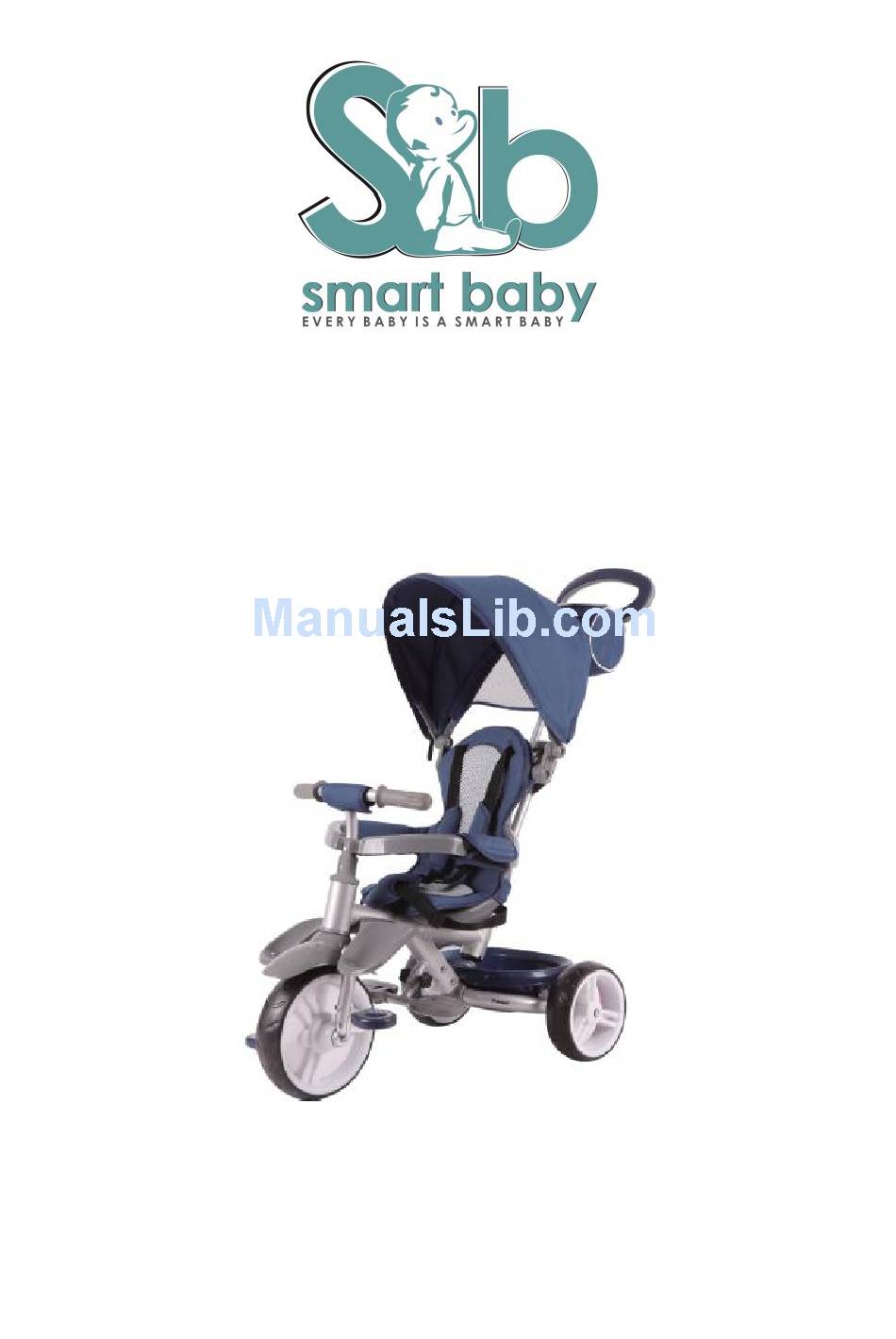

- Page 1 USER MANUAL – EN IN 3370120 Three-Wheel Stroller/Tricycle with Tow Bar Coccolle Evo Picture is for illustration purposes only.
- Page 2 CONTENTS SAFETY INSTRUCTIONS ........................3 MAINTENANCE ............................3 PARTS LIST ............................4 PRODUCT SPECIFICATION ........................5 ASSEMBLY STEPS ..........................5 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ........... 9...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Read this manual before first use and keep it for future reference. • This product is intended for children in age from 9 to 72 months. Never exceed this limit. • The max. weight limit is: 25 kg •... -
Page 4: Parts List
PARTS LIST A) Frame B) Front wheel C) Handlebar bar F) Seat cover and D) Seat E) Front fork backrest G) Middle footrest H) Safety guard Canopy J1) Push-bar top K) Basket L) Push-bar bag J2) Push-bar bottom M) Baby footrest N) Rear wheels O) Rear fork Tool... - Page 5 PRODUCT SPECIFICATION Intended age 9-72 months Max. load capacity 25 kg Intended height 70-110 cm N.W. 8.2 kg Packing size 600x520x260 mm Material Metal, PP, ABS, TPR, Cloth ASSEMBLY STEPS STEP 1 • First take off the screws on the fender (P) and then insert the front fork (E) onto the fender. Use screws to tighten them.
- Page 6 STEP 3 • Insert the front wheel into the frame (A). STEP 4 • Insert the rear wheel (N) into the rear fork by the rear axle (Q). Make sure that the rear wheel is fixed. STEP 5 • Take off the screw on the handlebar (C) and then insert the handlebar into the frame. Tighten them up with screw.
- Page 7 STEP 6 • Remove the screw on the middle of the frame (A) and then install the seat cover and the backrest (F) on the seat (D). Secure the seat, the safety belt and the frame using a screw. STEP 7 •...
- Page 8 STEP 9 • Take off the screws on the push bar bottom (J2) and then insert the push bar top (J1) into the push bar bottom. Secure it with a screw. Remove the screw on the backside of the frame (A) and slide the complete push bar into the frame (A).
- Page 9 STEP 12 • Complete the assembly as shown below. TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No.
- Page 10 Warranty & Service Centre: Cermenska 486, 749 01 Vitkov, Czech Republic CRN: 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia...
- Page 11 CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk Date of Sale: Stamp and Signature of Seller:...
