FPVEGG PRO used CCD600 camera(1/3 SONY CCD)
* The structure uses 4.0mm thick carbon fiber and 7075 aviation aluminum
alloy material, light weight, high strength.
* Product performance and wheelbase for indoor through the special design.
* BLheliS 4in1 20A ESC ,support MULTISHOT,ONESHOT and DSHOT provedes
a better user experience.
* Modular design, KK TOWER FC(F4+OSD), with the betaflight firmware.
LDARC
FPVEGG PRO Instruction Manual
Instruction Manual
2017-11-27

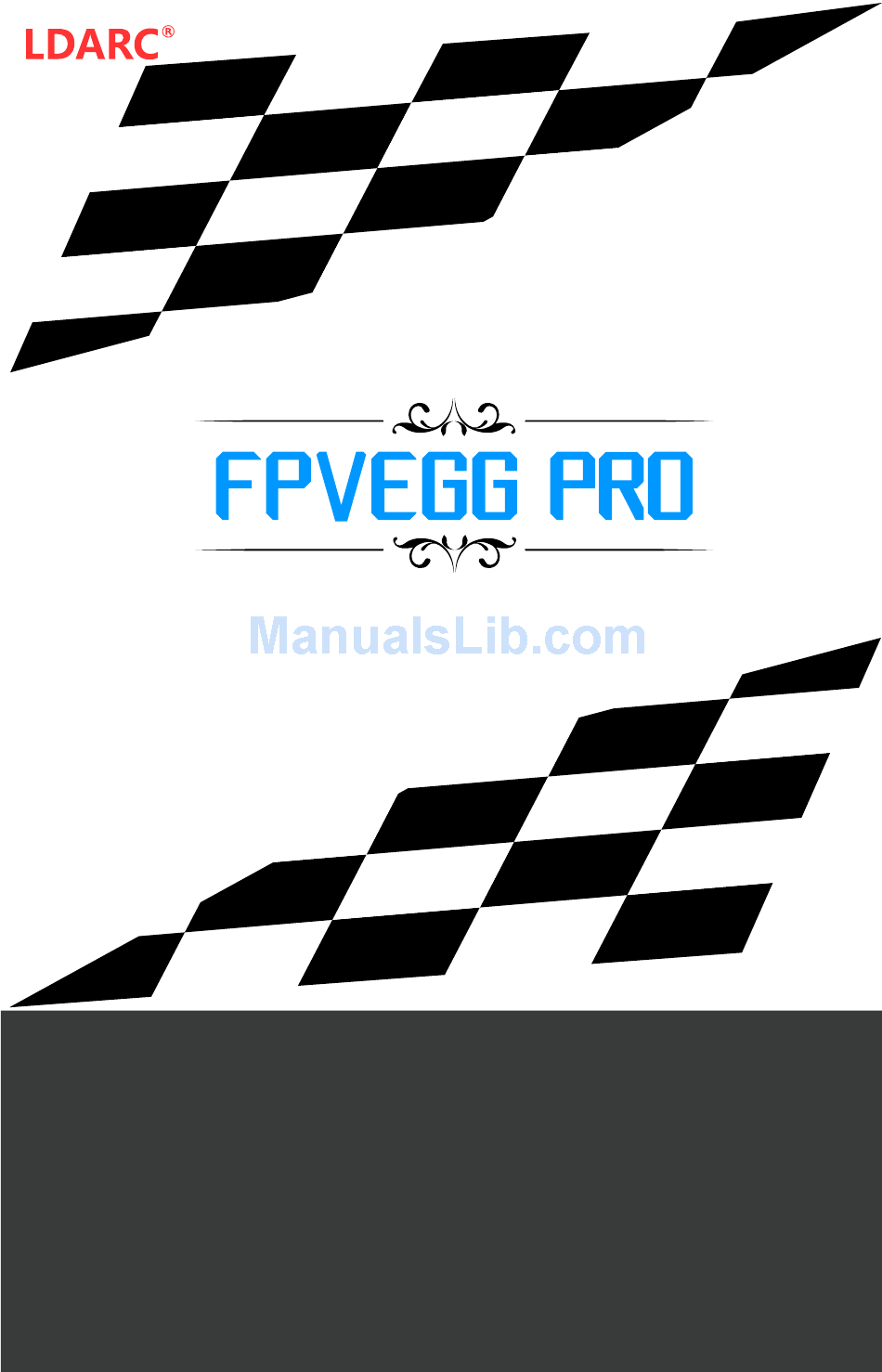

8 Pages-Page 1
Advertisement
Related Manuals for KingKong FPVEGG PRO
Summary of Contents for KingKong FPVEGG PRO
- Page 1 Instruction Manual Feature FPVEGG PRO used CCD600 camera(1/3 SONY CCD) * The structure uses 4.0mm thick carbon fiber and 7075 aviation aluminum alloy material, light weight, high strength. * Product performance and wheelbase for indoor through the special design. * BLheliS 4in1 20A ESC ,support MULTISHOT,ONESHOT and DSHOT provedes a better user experience.
- Page 2 FPVEGG PRO Configuration FPVEGG PRO(with buzzer and LED) Wheelbase:138mm Input voltage:3~4S Lipo KK TOWER(2 Layer) 20*20: F4+OSD 4in1 20A BLheliS VTX:Q100 VTX(25mW/100mW 16CH) Camera:CCD600 (600TVL CCD 160 NTSC) Motor:XT1406-3600KV Prop:3050 Battery:11.1V 850mAh 45C Weight:129.5g(without receiver and battery) FPVEGG PRO Package list...
- Page 3 3V3 RC IN DSMX use 2L tower(FC+ESC) RC IN S.BUS/PPM Motor M4(CW) M2(CCW) M3(CCW) M1(CW) Note:pay attention to the direction of rotation of the motor Power 2~4S when installing the prop LDARC FPVEGG PRO Instruction Manual 2017-11-27 8 Pages-Page 3...
- Page 4 3. Open remote control Bind, press “Enter” and wait a few seconds, then stop Bind when red light flash and green light constant lighting. 4. Disconnect receiver power and power-on again, green light constant lighting means bind success. FS-RX2A Receiver example LDARC FPVEGG PRO Instruction Manual 2017-11-27 8 Pages-Page 4...
- Page 5 FM800 Receiver example Please select MULT LDARC FPVEGG PRO Instruction Manual 2017-11-27 8 Pages-Page 5...
- Page 6 KK TOWER FC(F4+OSD) FC.KK TOWER(F4+OSD) Battery 11.1V 850mAh 45C PART.FPV EGG 7075 ALUMINUM FRAME PART.BOTTOM PLATE.FPVEGG PRO FPV EGG 7075 Aluminum frame Carbon fiber plate(FPVEGG PRO part) VTX.Q100 CCD600 Camera CAM.CCD600 Q100 VTX KK TOWER SCREW(2 LAYER) PLASTIC CARRYING CASE PART.PLASTIC CARRYING CASE...
- Page 7 FW updating finish into settings menu. Connect 3.Setting,select , select ESC/Motor Feature,then select DSHT600，then open (LED_STRIP,OSD,DYNAMIC_FILTER). 4.Buzzer setting,select ，then open VBAT 5.Default setting of receiver is 5th channel ARM,6th channel mode switching. 6.PID Default setting LDARC FPVEGG PRO Instruction Manual 2017-11-27 8 Pages-Page 7...
- Page 8 Transmitter functions properly Flying in good condition Camera OK VTX OK Package check Frame Transmitter ID is the same All parts of the installation Insulating sleeves have been installed manual Complete accessories,total packages LDARC FPVEGG PRO Instruction Manual 2017-11-27 8 Pages-Page 8...
