Summary of Contents for IMER Combi 200

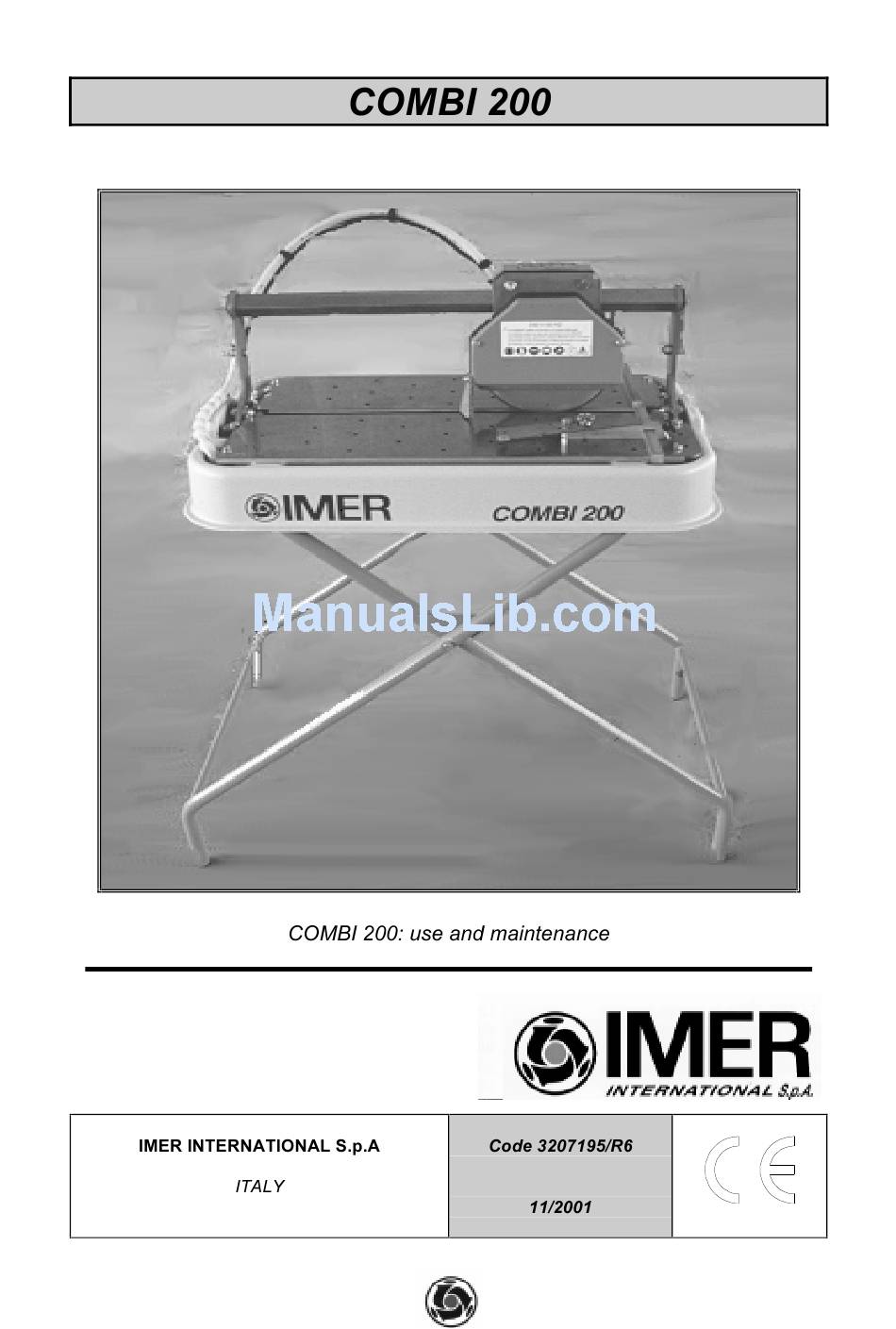

- Page 1 (1188076 115V 60Hz) 53036 POGGIBONSI (SIENA) Loc. SALCETO tel.: 0577 983300 - fax: 0577 983304...
- Page 2 (Fig.1.2) is a small tile/stone cutter designed and manufactured by observance of the laws which regulate the use of such equipment, in IMER INTERNATIONAL Spa for cutting tiles, ceramics and stone in general. particular: improper use, power supply anomalies, neglect of maintenance,...
- Page 3 Failure to observe the safety warnings may lead to injury, both for the operator and other persons. Given its small size and lightness (only 24 Kg), Combi 200 can be lifted and The danger signal indicates situations of special danger where the operator unloaded manually by the operator using the handles on the container tank.
- Page 4 COMBI 200: use and maintenance ___________________________________________________________________________________________________________________ ♦ can be used for 90 degree vertical cutting and 45 degree tilted Remember that there must be an overload protection upstream of cutting. the mains power supply unit which can guarantee the safety of all For vertical cutting, the pieces must have a maximum length of 430 mm and a the conductors from short circuiting and overload.
- Page 5 COMBI 200: use and maintenance ___________________________________________________________________________________________________________________ Clean the tank every time that sediment forms on the bottom, or at least once a day. Failure to clean the tank could create problems for the immersion pump which circulates water for cooling the cutting disk. To clean the tank, remove it...
- Page 6 COMBI 200: use and maintenance ___________________________________________________________________________________________________________________ The appendix contains the diagrams for the various units present in the machine and the reference drawings. This section also contains the documentation for the components installed in the machine and referred to in the manual.
- Page 7 COMBI 200: use and maintenance ___________________________________________________________________________________________________________________ When ordering spare parts, indicate the following: Machine type. Code and reference number alongside each definition. Serial number and year of manufacture, shown on the machine plate. Fig.7.1/A...
- Page 8 COMBI 200: use and maintenance ___________________________________________________________________________________________________________________ Fig.7.1/B 2223570 2224140 WASHER 3206312 CLAMP 2223920 3206385 CABINET GUARD 3207397 WHEEL 3207394 SPACER 3206744 MOTOR SUPPORT PLATE 2222516 SCREW 3207118 ARM CLAMP 3207393 SPACER 1193849 DISK 3206409 GUARD 2222021 SCREW 1222013 SCREW 3208759...
- Page 9 COMBI 200: use and maintenance ___________________________________________________________________________________________________________________ 3207075 SET SCREW 3207074 SET SCREW 2222146 SCREW 2225142 SET SCREW 2288825 EARTH SOCKET ADHESIVE LABEL 2223923 SELF-LOCKING NUT 2292365 ANTI-FREEZE TUBE L= 1300 mm 3206580 3207055 FRONT SUPPORT 3207052 REAR SUPPORT 3208449 PUMP SUPPORT...
- Page 11 This is a contact addendum to our manuals Imer USA East 221 Westhampton Pl Capitol Heights, MD 20743 Phone: 301-336-3700 Fax: 301-336-6687 Order Fax:301-336-5811 Imer USA West 3654 Enterprise Ave Hayward, CA 94545 www.imerusa.com 800-275-5463...
