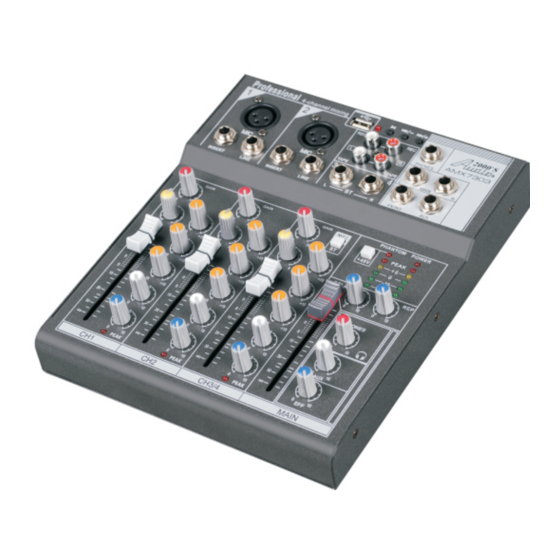

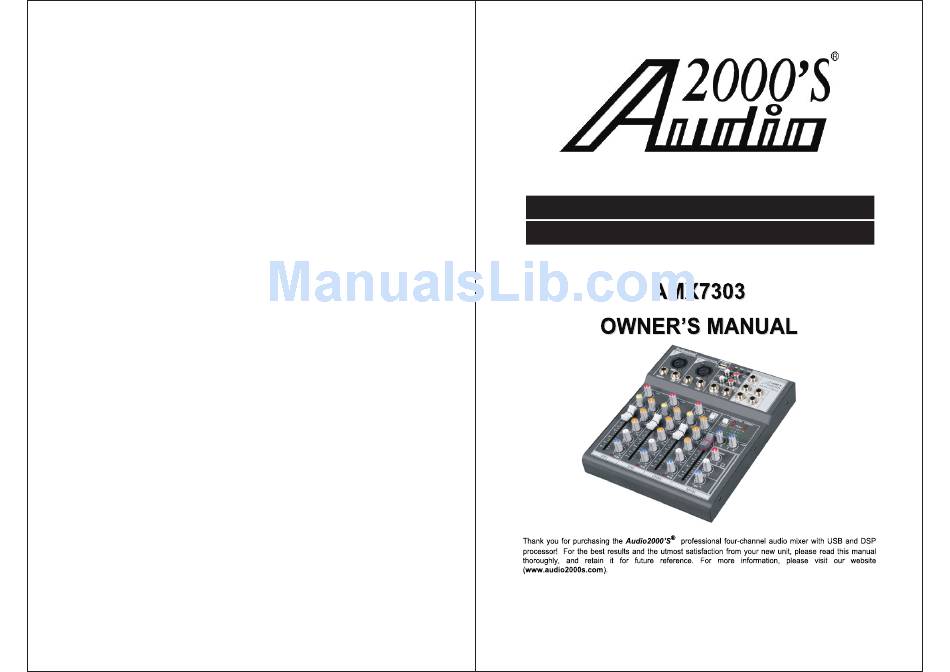

- Page 1 PROFESSIONAL FOUR-CHANNEL AUDIO MIXER WITH USB AND DSP PROCESSOR...
- Page 2 CONTENTS Warning..........................1-2 Precautions....…....................…..3 Package Contents ……..………................…..… 4 Features.......................... 4 Functions and Controls……................…..……...4-7 Specifications.......…..................7 Troubleshooting……………….................……..8 Service Information…….……...................………...9...
- Page 3 On Safety * Operate only on designated AC power supply (120V AC in North America). * Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further. * Unplug the unit from the wall outlet or set the Master switch to OFF if it is not to be used for several days.
- Page 4 1. [+48V PHANTOM] Button/LED --- When one or more condenser 7. [MID] Alto-tone Control Knob --- This knob is used to adjust the microphones are connected to the XLR [MIC] input jacks gain for the input signal band centered at 2.5KHz in the range (refer to numeral 1 in the CHANNEL INPUT section), press from -15dB to +15dB.
- Page 5 A. USB Insert B. USB LED Indicator C. “ ” Play/Pause Button --- Press this button to start playing the music from the USB device. Press this button again to have the music paused. When the music is paused, press this button will continue the music from where it was paused.
